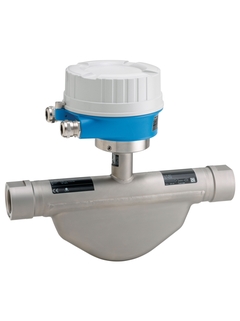

Proline Promass G 100
科里奥利质量流量计

科里奥利质量流量

Most compact high-pressure sensor with an ultra-compact transmitter.
Accurate measurement of liquids and gases in high-pressure applications.

Easy and safe process integration – threaded connections. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Internal threads as process connection. Process pressure up to 350 bar (5080 psi). Rupture disc available.

Space-saving transmitter – full functionality on the smallest footprint. Time-saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Robust, ultra-compact transmitter housing. Pre‐configured plug connector. Local display available.

DN 8...25 (⅜...1")

测量管：1.4435 (316L)
连接部件：1.4404 (316/316L)

质量流量、密度、温度、体积流量、校正体积流量、参考密度

质量流量（液体）：±0.15 %
体积流量（液体）：±0.15 %
质量流量（气体）：±0.75 %
密度（液体）：±0.0005 g/cm³

0...18 000 kg/h (0...662 lb/min)

350 bar (5080 psi)

–50...+150 °C (–58...+302 °F)

–40...+60 °C (–58...+140 °F)
可选：–50...+60 °C (–40...+140 °F)

1.4301 (304)，耐腐蚀

一体式：铝合金AlSi10Mg涂层
一体式/超紧凑型一体式：1.4301 (304)

IP66/67，Type 4X (外壳)

四行背光显示（无现场操作）
通过网页服务器和调试软件设置

4...20 mA HART（有源）
脉冲/频率/开关量输出（无源）

无

HART、Modbus RS485、EtherNet/IP、PROFIBUS DP、PROFINET

20...30 VDC

ATEX、IECEx、cCSAus、INMETRO、NEPSI

CE认证、C-Tick认证

在认证标定装置上执行标定（符合ISO/IEC 17025标准）
Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

3.1材料证书

科里奥利质量流量

Most compact high-pressure sensor with an ultra-compact transmitter.
Accurate measurement of liquids and gases in high-pressure applications.

Easy and safe process integration – threaded connections. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Internal threads as process connection. Process pressure up to 350 bar (5080 psi). Rupture disc available.

Space-saving transmitter – full functionality on the smallest footprint. Time-saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Robust, ultra-compact transmitter housing. Pre‐configured plug connector. Local display available.

DN 8 to 25 (⅜ to 1")

Measuring tube: 1.4435 (316L)
Connection: 1.4404 (316/316L)

Mass flow, density, temperature, volume flow, corrected volume flow,
reference density

Mass flow (liquid): ±0.15 %
Volume flow (liquid): ±0.15 %
Mass flow (gas): ±0.75 %
Density (liquid): ±0.0005 g/cm³

0 to 18 000 kg/h (0 to 662 lb/min)

350 bar (5080 psi)

–50 to +150 °C (–58 to +302 °F)

–40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)

1.4301 (304), corrosion resistant

Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)

IP66/67, type 4X enclosure

4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible

4‐20 mA HART (active)
Pulse/frequency/switch output (passive)

None

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

DC 20 to 30 V

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

CE, C-tick, EAC marking

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

CRN

3.1 material
