Product picture temperature transmitter TMT84

iTEMP TMT84 temperature transmitter

PROFIBUS® temperature transmitter as head or field device with two universal sensor inputs suitable for use in hazardous areas

TMT84
价格核算中…
暂时无价格信息
Price on request
正在激活价格
价格：提供信息
from CHF ??.-

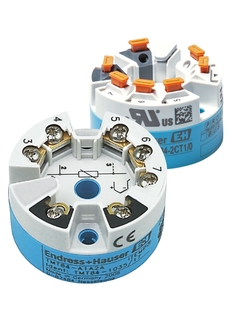

iTEMP TMT84 Temperature head transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
iTEMP TMT84 Temperature head transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
iTEMP TMT84 Temperature head transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

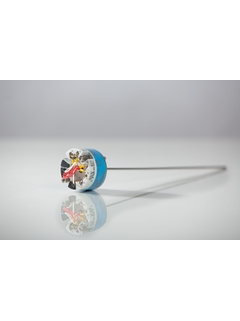

iTEMP TMT84 temperature head transmitter installed on insert TS111
  • F
  • L
  • E
  • X
©Endress+Hauser

产品规格参数

  • 测量精度

    (Pt100) <= 0.1 K
    (Pt100) <= 0.18 °F

应用领域

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using PROFIBUS® PA communication. High measurement point availability by means of sensor monitoring functions. Diagnostics information according to NAMUR NE 107. Optimization of the measurement accuracy by sensor-transmitter matching.

  • 2 input channels and PROFIBUS® PA protocol for the conversion of input signals into digital output signals

  • The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes)

  • For the highest level of safety, availability and risk reduction

  • Installation in flat-face terminal head as per DIN EN 50446

  • Optional installation in field housings even for use in Ex d areas - with mounting brackets for wall or pipe mounting

优势

  • Easy and standardized communication via PROFIBUS® PA Profile 3.02

  • Meets the EMC requirements as per NAMUR NE 21 and the recommendations of NE 89 with regard to temperature transmitters with digital signal processing

  • Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27

  • Safe operation in hazardous areas thanks to international approvals such as FM IS, NI, CSA IS, NI as well as ATEX Ex ia, Ex nA (Ex nL)

  • High accuracy through sensor-transmitter matching

  • Reliable operation with sensor monitoring and device hardware fault recognition

  • Rapid no-tools wiring due to optional spring terminal technology

Extended选型

  • 高端产品

  • 功能丰富，适用范围广

仪表技术性能

选型便捷程度

FLEX：Extended选型（高端产品） ©Endress+Hauser
