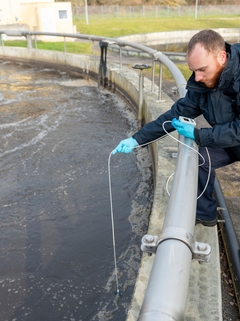

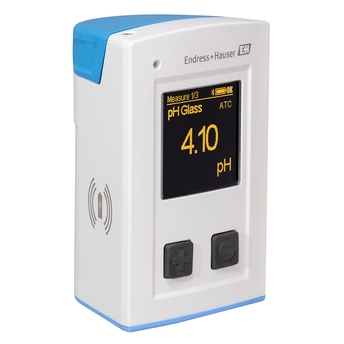

Liquiline Mobile CML18多参数手持设备可随身携带。

- F
- L
- E
- X

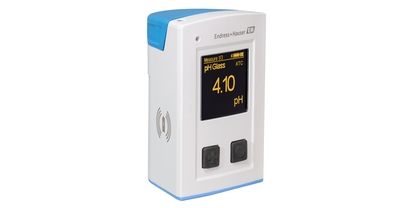

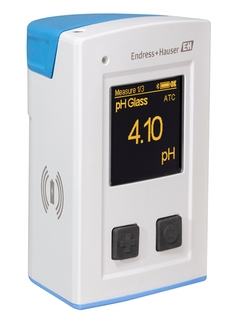

单台仪表即可完成pH、ORP、电导率和溶解氧测量。

- F
- L
- E
- X

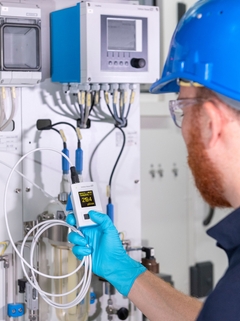

它是理想的测量值比对设备。实时识别传感器,直接显示正确的测量值。

- F
- L
- E
- X

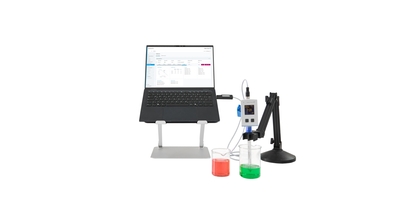

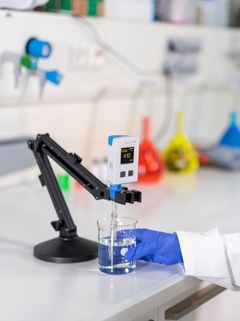

Liquiline Mobile CML18同样适用实验室样品分析。

- F
- L
- E
- X

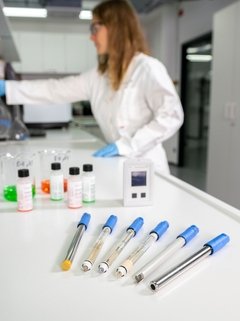

无论是在实验中,还是在现场,手持设备连接Memosens数字式传感器,确保测量数据完全一致。

- F
- L
- E
- X
设备自带无线充电功能,也同样可用其它无线充电座充电。
应用领域
多参数手持设备通过连接Memosens数字式传感器,帮助您检查工厂中的各个测量点。得益于Memosens技术,只要便携设备的传感器和现场传感器参数相同,那么测量数据便完全一致。采用独一无二的安全蓝牙连接,您可以将所有传感器数据和测量值传输到平板电脑或智能手机中,轻松安全地完成归档记录、传感器调节和数据传输。
Liquiline Mobile CML18多参数手持设备可用于以下参数测量:
pH/ORP、温度
电导率或痕量电导率、温度
溶解氧或痕量溶解氧、温度
它适用所有行业及其公用工程应用,可以准确检查:
测量点
采样样品(测量现场和实验室中)
非在线测量的工艺点
优势
操作简便:
使用现有平板电脑和智能手机操作和调试设备。受益Memosens技术的优势:
Memosens数字式传感器能够实现最高安全等级的传输数据,具有最高测量值稳定性,使用最为便捷。测量结果值得您的信赖:
过程测量、实验室测量和采样测量均采用同一技术,测量结果完全一致。
简化日常工作:
预标定的Memosens数字式传感器支持在线插拔,可以快速切换测量参数。
数据记录仪功能:保存10000多个测量值,同时提供测量值的时间信息。
方便随身携带:
使用灵活,既满足实验室又满足工艺过程的使用要求。外形小巧、轻便,方便携带。
充电:
低电量?通过感应充电座为设备充电。

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
导电性
-
应用
Multiparameter mobile device for field and laboratory use
-
特点
Connectable to all pH, conductivity and dissolved oxygen Memosens sensors
-
设计
Small and handy - designed to fit in your pocket
-
材质
Housing: PBT
Display: PMMA
Buttons, cap: TPE
M12 connector: CuZn, nickel-plated -
外形尺寸
84 x 54 x 47 mm (h x w x d)
3.31 x 2.13 x 1.85 inch (h x w x d) -
防护等级
IP 66
-
输入
One channel instrument with inductive Memosens coupling
M12 connector for using CYK10 and CYK20 Memosens cable -
输出
Bluetooth
-
测量原理
玻璃电极
-
应用
Multiparameter mobile device for field and laboratory use
-
特点
Connectable to all pH, conductivity and dissolved oxygen Memosens sensors
-
设计
Small and handy - designed to fit in your pocket
-
材质
Housing: PBT
Display: PMMA
Buttons, cap: TPE
M12 connector: CuZn, nickel-plated -
外形尺寸
84 x 54 x 47 mm (h x w x d)
3.31 x 2.13 x 1.85 inch (h x w x d) -
防护等级
IP 66
-
输入
One channel instrument with inductive Memosens coupling
M12 connector for using CYK10 and CYK20 Memosens cable -
输出
Bluetooth
-
测量原理
溶解氧传感器
-
应用
Multiparameter mobile device for field and laboratory use
-
特点
Connectable to all pH, conductivity and dissolved oxygen Memosens sensors
-
设计
Small and handy - designed to fit in your pocket
-
材质
Housing: PBT
Display: PMMA
Buttons, cap: TPE
M12 connector: CuZn, nickel-plated -
外形尺寸
84 x 54 x 47 mm (h x w x d)
3.31 x 2.13 x 1.85 inch (h x w x d) -
防护等级
IP 66
-
输入
One channel instrument with inductive Memosens coupling
M12 connector for using CYK10 and CYK20 Memosens cable -
输出
Bluetooth
