新一代Liquiphant FTL51音叉限位开关：数字通信、使用简单、操作安全

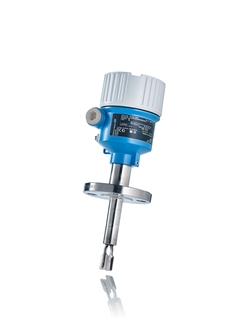

Liquiphant FTL51，带蓝牙模块 ©Endress+Hauser

新一代Liquiphant FTL51，采用Bluetooth®蓝牙技术

通过Heartbeat Technology心跳技术进行腐蚀检测，实现预维护

Liquiphant带永久功能检测，是液体限位检测的安全选择

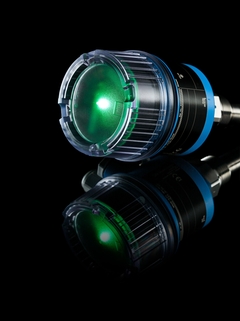

Liquiphant FTL51B，带LED指示灯 ©Endress+Hauser

新一代Liquiphant FTL51，带LED指示灯

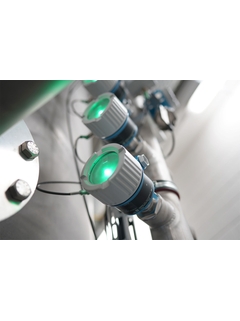

Liquiphant FTL51B，带LED指示灯 ©Endress+Hauser

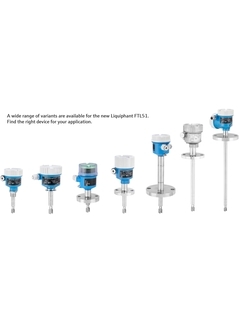

Liquiphant FTL51B型号 ©Endress+Hauser

提供多种型号的产品，满足不同应用要求

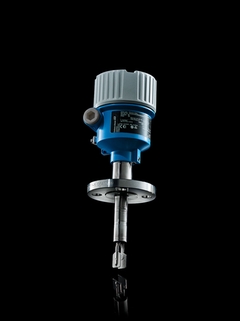

Liquiphant FTL51B，带蓝牙模块 ©Endress+Hauser
  • Liquiphant FTL51，带蓝牙模块
  • Liquiphant FTL51B，带LED指示灯
  • Liquiphant FTL51B，带LED指示灯
  • Liquiphant FTL51B型号
  • Liquiphant FTL51B，带蓝牙模块

限位开关适用工业物联网（IIoT）应用中的各类液体检测

新一代Liquiphant FTL51是工业过程领域专用限位开关，遵循IEC 61508标准设计，轻松满足SIL2和SIL3应用要求。直观的设置向导帮助用户定期执行SIL或WHG自检测试，自动生成校验文档。
Liquiphant测量可靠，不受介质属性变化、扰动、气泡、泡沫或黏附的影响。

Extended选型
  • F
  • L
  • E
  • X

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富，适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 过程温度

      -50 °C...+150 °C
      (-58 °F...+302 °F)

    • 过程压力（绝压）/最大过压限定值

      Vacuum...100 bar
      Vacuum...1450 psi

    • 最小介质密度

      0.5 g/cm³
      (0.4 g/cm³ optional)

Loading alternative products

快速选择

从我们建议的选项中选择
售价
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

FTL51B
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
价格核算中…
暂时无价格信息
from CHF 803.-
  • 可选附加功能
请使用 Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

  • 优势

    • 诊断：永久诊断功能提高了工厂安全性。通过SmartBlue App连接设备，轻松实现在线诊断

    • 校验：无需中断过程即可校验设备。通过智能设备查询设备状态。

    • 监测：在线监测叉体振动频率，实时获取传感器参数，实现预维护和过程优化

    • 采用Heartbeat Technology心跳技术，及早直接识别腐蚀迹象

    • 使用设置向导，按下按键，快速简便地进行定期自检

    • 无需标定。即插即用

    • 遵循IEC 61508标准设计，完全满足SIL2和SIL3应用场合的要求

  • 应用领域

    限位开关带延长管，适用各类液体的限位检测。

    • 过程连接：螺纹、法兰和卫生型连接（Tri-Clamp卡箍）

    • 温度范围：-50...+150°C (-58...+302°F)

    • 压力范围：-1...+100bar (-14.5...+1450psi)

    • 传感器材质：316L、合金

    • 通过国际防爆认证、WHG溢出保护认证、SIL认证、船级认证

特征和规格

返回

Details

  • 测量原理

    音叉密度仪

  • 测量原理

    液体音叉

  • 特点/应用

    Compact vibronic device with an optional pipe extension up to 6 m (19.7 ft);

    Modular housing concept;

    Wide range of certificates

  • 特点

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Second line of defense,

    Ambient temperature down to -50°C (-60°C optional),

    Temperature spacer for high process temperature,

    Plug and play functionalities

  • 电源/通信

    19...253V AC / 2-wire,

    10...55V / DC-PNP 3-wire,

    9...20V DC with relay DPDT,

    19...253V AC or 19...55V DC with relay DPDT,

    NAMUR,

    PFM

  • 环境温度

    -60 °C...+70 °C

    (-51 °F...+158 °F)

  • 过程温度

    -50 °C...+150 °C

    (-58 °F...+302 °F)

  • 过程压力（绝压）/最大过压限定值

    Vacuum...100 bar

    Vacuum...1450 psi

  • 最小介质密度

    0.5 g/cm³

    (0.4 g/cm³ optional)

  • 主要接液部件

    316L

    Alloy

  • 过程连接

    Threads:

    G3/4A, G1A, R3/4", R1, NPT3/4, NPT1


    Flanges:

    DN25...DN100

    ASME 1"...4"

    JIS 25A...100A

  • 卫生型过程连接

    Tri-Clamp ISO2852

  • 传感器长度

    Up to 6 m (19.7 ft)

  • 通信

    2-wire direct load

    DC-PNP 3-wire

    Relays

    NAMUR

    PFM

    Bluetooth® wireless technology

  • 证书和认证

    ATEX, IEC Ex, CSA, NEPSI, KC, JPN Ex, INMETRO

  • 安全认证

    Overfill protection WHG

    SIL2/ SIL 3 according to IEC 61508

  • 设计认证

    EN 10204-3.1

    NACE MR0175, MR0103

    ASME B31.3 Process Piping

    AD2000

    CRN

    AD 2000

  • 船级认证

    ABS/ LR/ BV/ DNV GL

  • 选项

    Heavy duty stainless steel housing

  • 组件

    FTL325P Interface PFM

    FTL325N Interface NAMUR

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 30
    • Nr 30 Order code 71432518

      电子插件 FEL61，19-253VAC 2线，含测试按钮。适用型号：FTL51

      2-wire incl. test button. Usage: FTL51B, FTL62/64.

    • Nr 30 Order code 71432519

      电子插件 FEL62，PNP10-55VDC 3线，含测试按钮。适用型号：FTL

      3-wire incl. test button. Usage: FTL51B, FTL62/64.

    • Nr 30 Order code 71432549

      电子插件 FEL64 DC，继电器 DPDT 9-20VDC，触点容量253V/

      9-20VDC, contact 253V/6A incl. test button. Usage: FTL51B, FTL62/64.

    • Nr 30 Order code 71432570

      电子插件 FEL64，继电器 DPDT 19-253VAC/19-55VDC，触

      19-253VAC/19-55VDC, contact 253V/6A incl. test button. Usage: FTL51B, FTL62/64.

    • Nr 30 Order code 71432573

      电子插件 FEL67 PFM 2线 PFM，含测试按钮。适用型号：FTL51B。

      2-wire PFM incl. test button. Usage: FTL51B, FTL62/64.

    • Nr 30 Order code 71432575

      电子插件 FEL68 NAMUR 2线，NAMUR H-L信号，含测试按钮。适用

      2-wire, NAMUR H-L signal incl. test button. Usage: FTL51B.

    • Nr 30 Order code 71432577

      电子插件 FEL60D,密度/浓度 适用型号：FTL51B。

      Usage: FTL51B, FTL62/64.

  • 20
    • Nr 20 Order code 71435116

      外壳盖，铝，密闭盖，密封圈，HNBR。适用型号: FMG50，FTL41，FTL

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 20 Order code 71435118

      外壳盖，铝，密闭盖，Ex d 密封圈，HNBR。适用型号: FMG50，FTL4

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71435122

      外壳盖，316L，密闭盖，Ex d 密封圈，HNBR。适用型号: FMG50，F

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71435126

      外壳盖，塑料，密闭盖，密封圈，EPDM。适用型号: FTL41，FTL51B。

      Sealing ring, EPDM. Usage: FTL41, FTL51B, FTL62/64.

    • Nr 20 Order code 71435127

      外壳盖，塑料，BT/LED 模块 密封圈，EPDM。用于 Bluetooth/L

      Sealing ring, EPDM. For Bluetooth/LED module. Usage: FTL51B, FTL62/64.

    • Nr 20 Order code 71435128

      外壳盖，316L，connect. compartment，Ex d 密封圈，H

      Sealing ring, HNBR. Usage: FMG50, PMD75B/PMD78B, PMC71B, PMP71B.

  • 25
    • Nr 25 Order code 71435129

      外壳盖，铝，视窗，BT/LED 模块 密封圈，HNBR。材质 视窗: 塑料。用于

      Sealing ring, HNBR. Material sight window: plastic. For Bluetooth/LED module. Usage: FTL51B, FTL62/64.

    • Nr 25 Order code 71435130

      外壳盖，铝，视窗，Ex d，BT/LED 密封圈，HNBR。材质 视窗: 玻璃。

      Sealing ring, HNBR. Material sight window: glass. For Bluetooth/LED module. Usage: FTL51B, FTL62/64.

    • Nr 25 Order code 71435123

      盖子, 316L, 带视窗, Ex d密封圈, HNBR.适用于: FMG50

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/FTL64, PMD75B/PMD78B, PMC71B, PMP71B.

  • 21
  • 15
    • Nr 15 Order code 71435135

      电缆格兰头 M20，塑料 适用型号: FTL41，FTL51B，PMC51B，P

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435136

      电缆格兰头 M20，铜镀镍 适用型号: FMG50，FTL41，FTL51B，P

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435137

      电缆格兰头 M20，316L 适用型号: FMG50，FTL51B，PMC51B

      Usage: FMG50, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435138

      插接头M20, 黄铜镀镍 适用于: screw-in thread, FMG50

      Usage: M12 screw-in thread, brass nickel plated, FMG50, FTL51B, FTL62/FTL64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

  • 40
    • Order code 71437382

      LED灯模块VU120，FL51B专用：FTL51B

      Usage: FTL51B, FTL62/FTL64.

    • Order code 71437508

      测试磁铁，FTL51B 适用型号: FTL51B。

      Usage: FTL51B, FTL62/FTL64.

    • Order code 52003663

      滑动套筒100bar G1，316L 开关动作点可调整。最大100bar过程压力

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: disassembly protection under pressure Material: 316L

    • Order code 52011880

      滑动套筒100bar G1，316L，3.1开关动作点可调整。最大100bar过

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003665

      滑动套筒100bar G1-1/2，316L 开关动作点可调整。最大100bar

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: disassembly protection under pressure Material: 316L

    • Order code 52011882

      滑动套筒100bar G1-1/2，316L，3.1开关动作点可调整。最大100

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003667

      滑动套筒100bar NPT1，316L 开关动作点可调整。最大100bar过程

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L

    • Order code 52011881

      滑动套筒100bar NPT1，316L，3.1开关动作点可调整。最大100ba

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003669

      滑动套筒100bar NPT1-1/2，316L 开关动作点可调整。最大100b

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L

    • Order code 52011883

      滑动套筒100bar NPT1-1/2，316L，3.1开关动作点可调整。最大1

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003978

      滑动套筒G1，316L 开关动作点可调整。低压环境。材质: 316L。适用型号:

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L

    • Order code 52011888

      滑动套筒G1，316L，3.1开关动作点可调整。低压环境。材质: 316L。检验

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71118691

      滑动套筒100bar G1，AlloyC22，3.1开关动作点可调整。最大100

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL41, FTL51, FTL51B, FTL71, FTL81.

    • Order code 52003980

      滑动套筒G1-1/2，316L 开关动作点可调整。低压环境。材质: 316L。适

      FTL51/FTL71 Switch point adjustment For pressureless condition Material: 316L

    • Order code 52011890

      滑动套筒G1-1/2，316L，3.1开关动作点可调整。低压环境。材质: 316

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71118693

      滑动套筒100barG1-1/2，AlloyC22，3.1开关动作点可调整。最大

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL51B, FTL64, FTL71, FTL81.

    • Order code 52003979

      滑动套筒NPT1，316L 开关动作点可调整。低压环境。材质: 316L。适用型

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L

    • Order code 52011889

      滑动套筒NPT1，316L，3.1开关动作点可调整。低压环境。材质: 316L。

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71118694

      滑动套筒100bar NPT1，AlloyC22，3.1开关动作点可调整。最大1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL51B, FTL64, FTL71, FTL81.

    • Order code 52011891

      滑动套筒NPT1-1/2，316L，3.1开关动作点可调整。低压环境。材质: 3

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71118695

      滑动套筒100barNPT1-1/2，AlloyC22，3.1开关动作点可调整。

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL51B, FTL64, FTL71, FTL81.

    • Order code 52001052

      焊座

      Flush mount process connection FTL50/FTL50H "GQ2" Material: 316L Seal: Silicone O-ring

    • Order code 52011897

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL41 FTL50/FTL50H, FTL51B, FTL80, QMW43, TMR35.

    • Order code 71093129

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.

    • Order code 71258358

      焊座 G1, d=53, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL51B, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.

    • Order code 52001051

      过程连接件|Weld-in G1, d=60, 316L

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52011896

      焊座，G1，d=60 ，3.1材质认证

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52001221

      焊座

      Flush mount process connection FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring

    • Order code 52011898

      焊座

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71438291

      遮阳罩，塑料，XW111 适用型号: FTL41，FTL51B，PMC51B，P

      Usage: FTL41, FTL51B, FTL62/FTL64, PMC51B, PMD55B, PMP51B.

    • Order code 71438303

      遮阳罩

      Usage: FMG50, FTL51B, FTL62/FTL64, PMC71B, PMD75B/PMD78B, PMP71B.
