Liquiphant FTL51音叉料位开关

©Endress+Hauser
©Endress+Hauser

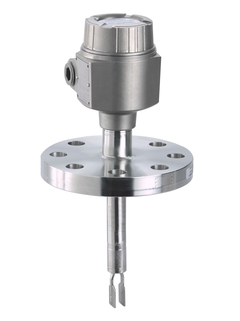

配备延伸管、适合所有行业液体介质的音叉限位检测开关

Liquiphant FTL51音叉限位检测开关配备延伸管，可用于爆炸危险区域，取得各类国际认证，适合所有行业。FTL51的功能安全等级达到 SIL2/SIL3级，第二道防护确保设备具有最高程度的安全性和可用性。测量值稳定，不受流动、 扰动、气泡、泡沫、振动、固体含量或粘附的影响。

快速选择

从我们建议的选项中选择
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FTL51
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • 可选附加功能
请使用Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

附加组件

  • 优势

    • 可用于功能安全等级要求SIL2/SIL3的安全系统中，符合 IEC 61508/IEC 61511-1标准

    • 多种过程连接可供选择

    • 配备多种电子插件类型，如NAMUR, 继电器、半导体晶闸管、PFM信号输出，实现与各个过程控制系统的连接

    • 还可选用PROFIBUS PA通讯协议

    • 无需校准：快捷、经济的设备开启模式

    • 无机械活动件、无需维护，无磨损，使用寿命长。可监测叉体破损，保证功能正常

    • FDA 认证材料(PFA Edlon)

  • 应用领域

    带延伸管的限位检测开关，适用于各类液体检测：

    • 过程连接：螺纹、法兰和卫生型过程连接（卡箍）

    • 温度：-50 ~ +150°C (-58 ~ +302°F)

    • 压力： -1 ~ +100bar (-14.5 ~ +1,450psi)

    • 传感器材质： 316L, Alloy

    • 国际防爆认证，溢出保护WHG， SIL

特征和规格

返回

Details

  • 测量原理

    液体音叉

  • 特点/应用

    模块化外壳
    多种过程连接
    模拟量和总线接口
    多种证书（例如防爆、WHG）
    延长管最长3m (6m，可选）

  • 特点

    泡沫检测
    检测密度变化
    第二层防护

  • 电源/通信

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC或10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • 环境温度

    -50...+70 °C
    (-58...+158 °F)

  • 过程温度

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • 过程压力（绝压）/最大过压限定值

    真空...100 bar

  • 最小介质密度

    0.5g/cm³（可选0.4g/cm³）

  • 主要接液部件

    316L / Alloy合金

  • 过程连接

    螺纹：
    G3/4A、G1A、R3/4"、R1、NPT3/4、NPT1
    法兰：
    DN25...DN100
    ASME 1"...4"
    JIS 25A...100A

  • 卫生型过程连接

    Tri-Clamp ISO2852卡套

  • 传感器长度

    长度：130mm (5.12")（Liquiphant II）
    148...6000mm (5.83"...236")

  • 通信

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC或10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI

  • 安全认证

    溢出保护WHG
    SIL2/ SIL3

  • 设计认证

    EN 10204-3.1
    NACE MR0175、MR0103
    ASME B31.3
    AD2000

  • 船级认证

    GL/ ABS

  • 选项

    重型不锈钢外壳，特别适合石油、天然气行业

  • 组件

    FTL325P/FTL375P PFM接口
    FTL325N/FTL375N NAMUR接口

  • 替代产品

    Liquiphant FTL51B

  • 测量原理

    音叉密度仪

  • 特点/应用

    Liquiphant M Density，带密度计算机FML621
    进行温度和压力测量
    模块化外壳
    多种过程连接
    延长管道的最大长度为3米（6米可选）
    进行补偿（可选）

  • 电源/通信

    变送器电源（MUS）

  • 环境温度

    -50...70°C
    -50...60°C（危险区应用）

  • 过程温度

    0...80°C（有效精度参数）
    -50...0°C / 80...150°C（受限技术参数）

  • 过程绝压

    0...25bar
    >25...100bar（受限技术参数）

  • 接液部件

    316L/C4

  • 传感器长度

    115...3000mm
    >3000...6000mm（可选）

  • 输出

    脉冲

  • 证书和认证

    ATEX
    IECEx

  • 特点

    使用ReadWin2000调试

  • 组件

    密度计算机FML621

  • 其他认证和证书

    SIL2/ SIL3

文档/手册/软件

附件/备件
