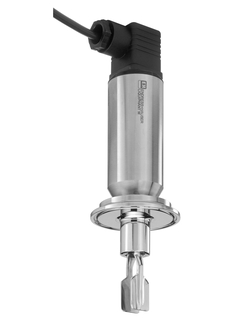

适合所有行业液体介质的一体化音叉限位检测开关

Liquiphant FTL50音叉限位检测开关可用于爆炸危险区域,取得各类国际认证,适合所有行业。FTL50的功能安全等级达到 SIL2/SIL3级,第二道防护确保设备具有最高程度的安全性和可用性。测量值稳定,不受流动、 扰动、气泡、泡沫、振动、固体含量或粘附的影响。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 可用于功能安全等级要求SIL2/SIL3的安全系统中,符合 IEC 61508/IEC 61511-1标准

    • 多种过程连接可供选择

    • 配备多种电子插件类型,如NAMUR, 继电器、半导体晶闸管、PFM信号输出,实现与各个过程控制系统的连接

    • 还可选用PROFIBUS PA通讯协议

    • 无需校准:快捷、经济的设备开启模式

    • 无机械活动件、无需维护,无磨损,使用寿命长。可监测叉体破损,保证功能正常

    • FDA 认证材料(PFA Edlon)

  • 应用领域

    适用于所有液体的限位检测开关

    • 过程连接:螺纹、法兰和卫生型过程连接(卡箍)

    • 温度: -50 ~ +150°C (-58~ +302°F)

    • 压力: -1~ +64bar (-14.5~ +928psi)

    • 传感器材质:316L, Alloy

    • 国际防爆认证,溢出保护 WHG, SIL,船级认证

特征和规格

返回

Details

  • 测量原理

    音叉密度仪

  • 特点/应用

    Liquiphant M Density,带密度计算机FML621
    进行温度和压力测量
    模块化外壳
    多种过程连接
    紧凑型
    进行补偿(可选)

  • 电源/通信

    变送器电源(MUS)

  • 环境温度

    -50...70°C
    -50...60°C(危险区应用)

  • 过程温度

    0...80°C(有效精度参数)
    -50...0°C / 80...150°C(受限技术参数)

  • 过程绝压

    0...25bar
    >25...64bar(缩径型技术参数)

  • 接液部件

    316L/C4

  • 传感器长度

    紧凑型:50.5mm

  • 输出

    脉冲

  • 证书和认证

    ATEX
    IECEx

  • 特点

    使用ReadWin2000调试

  • 组件

    密度计算机FML621

  • 其他认证和证书

    SIL2/ SIL3

  • 测量原理

    液体音叉

  • 特点/应用

    模块化外壳
    多种过程连接
    模拟和总线接口
    多种证书(例如防爆、WHG)
    一体式,例如管道

  • 特点

    泡沫检测
    检测密度变化
    第二层防护

  • 电源/通信

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC or 10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • 环境温度

    -50...+70 °C
    (-58...+158 °F)

  • 过程温度

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • 过程压力(绝压)/最大过压限定值

    真空...64 bar
    (真空...928 psi)

  • 最小介质密度

    0.5g/cm³(可选0.4g/cm³)

  • 主要接液部件

    316L、Alloy合金

  • 过程连接

    螺纹:
    G3/4A、G1A、R3/4"、R1、NPT3/4、NPT1
    法兰:
    DN25...DN100
    ASME 1"...4"
    JIS 25A...100A

  • 卫生型过程连接

    Tri-Clamp ISO2852卡套

  • 通信

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC or 10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI

  • 安全认证

    溢出保护WHG
    SIL2/ SIL3

  • 设计认证

    EN 10204-3.1
    NACE MR0175、MR0103
    ASME B31.3
    AD2000

  • 船级认证

    GL/ ABS

  • 选项

    重型不锈钢外壳,特别适合石油、天然气行业

  • 组件

    FTL325P/FTL375P PFM接口
    FTL325N/FTL375N NAMUR接口

  • 替代产品

    Liquiphant FTL51B

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 20
  • 25
  • 20
  • 12
  • 21
  • 15
  • 30
    • Order code 52005977

      润滑剂

      Lubricant "SYNTHESO GLEP1" (tube a 8g)

    • Order code 52010285

      M12航空插头,90度弯头,带5m电缆

      适用于M12插头 带5m电缆 PVC材质,铜镀锡/ 镍锁紧螺母

    • Order code 52024216

      电缆插座

      M12x1 plug 5m cable PVC, 316L lock Especially for sanitary applications

    • Order code 71127760

      遮阳罩

      Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.

    • Order code 71040497

      遮阳罩

      Usage: FMI51/FMI52, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52.

    • Order code 71067434

      更改铭牌

      Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.

  • 57
    • Nr 57 Order code 71185027

      密封圈

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.

    • Nr 57 Order code 52014048

      密封圈

      Process gasket for process connections G1

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 52001052

      焊座

      Flush mount process connection FTL50/FTL50H "GQ2" Material: 316L Seal: Silicone O-ring

    • Order code 52011897

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80. Usage: TMR35.

    • Order code 52001051

      焊座,G1,d=60

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52001221

      焊座

      Flush mount process connection FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring

    • Order code 52011896

      焊座,G1,d=60 ,3.1材质认证

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52011898

      焊座

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71093129

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52014473

      O型圈

      for weld-in adapter G3/4 Liquiphant M "GQ2"

    • Order code 71086100

      O型圈

      Material: silicone VMQ 70. USP Class VI. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

    • Order code 71140670

      O型圈

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

    • Order code 52014472

      O型圈

      for weld-in adapter G1 (52001051) Liquiphant M "GW2" Liquiphant T "7", Liquicap M "GWJ", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for weld-in andapter G1, 316L 3.1 (52011896) Liquiphant M "GW2", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for sliding sleeve Soliphant T

    • Order code 71086102

      O型圈

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O型圈

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 52014424

      密封垫圈

      for weld-in adapter G1, adjustable, 316L (52001221) Liquiphant M "GW2" for weld-in adapter G1, adjustable, 316L (52011898) Liquiphant M "GW2" for weld-in adapter G1, adjustable Liquiphant FTL330H/FTL330L, Liquiphant T FTL20H "UPJ

    • Order code 71075662

      密封垫圈

      Material: silicone VMQ. USP Class VI, FDA. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.
