The Liquiphant FTL64 ensures long term reliable detection

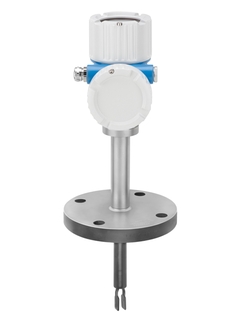

Liquiphant FTL64 for high temperatures ©Endress+Hauser

The new Liquiphant FTL64

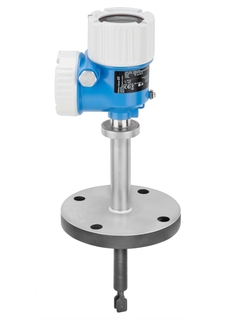

Liquiphant FTL64 for high temperatures ©Endress+Hauser

The new Liquiphant FTL64

Preventive maintenance is possible with corrosion detection via Heartbeat Technology

Liquiphant with permanent function check is the safe choice for point level detection in liquids

A level switch for hot and pumpable liquids

Liquiphant FTL64 has a strong focus on high temperature applications and simplicity with easy proof testing, reliability and safety (SIL) with compliance to IEC 61508, API 2350 and WHG. The vibronic device is determined for a safe and active measuring technology in applications with high temperatures and want a reliable and proven point level detection for tank overfill prevention and pump dry run protection. The FTL64 is easy to use, has a digital connection and gives a real-time data at hand

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富,适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

此产品暂未在中国市场销售

  • 产品规格参数

    • 过程温度

      -50 °C...+280 °C
      (-58 °F...+536 °F)

    • 过程压力(绝压)/最大过压限定值

      过程压力(绝压)/最大过压限定值

    • 最小介质密度

      0.5 g/cm³
      (0.4 g/cm³ optional)

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • Universal measuring principle for limit detection – proven vibronic technology

    • Developed according IEC 61508 for highest safety – SIL2/3 applications (3rd party approved)

    • Periodic proof testing is quickly and simple organized with guided wizards via the...

  • 应用领域

    Point level switch with extension tube for pumpable liquids

    • Process temperature: -80 °C to +280°C (PFA coated: up to 230°C)

    • Process pressure: -1 to +100bar (PFA coated: up to 40bar)

    • Ambient temperature: -60 to +70°C

    • Viscosity up to 10,000mm2/s (cSt)

    • Optional PFA coating for...

特征和规格

返回

Details

  • 测量原理

    液体音叉

  • 特点/应用

    特点/应用

  • 特点

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Second line of defense,

    Temperature spacer for high process temperature,

    Plug and play functionalities

  • 电源/通信

    19...253V AC / 2-wire,

    10...55V / DC-PNP 3-wire,

    9...20V DC with relay DPDT,

    19...253V AC or 19...55V DC with relay DPDT,

    2-wire NAMUR,

    2-wire PFM

  • 环境温度

    -60 °C...+70 °C

    (-51 °F...+158 °F)

  • 过程温度

    -50 °C...+280 °C

    (-58 °F...+536 °F)

  • 过程压力(绝压)/最大过压限定值

    过程压力(绝压)/最大过压限定值

  • 最小介质密度

    0.5 g/cm³

    (0.4 g/cm³ optional)

  • 主要接液部件

    主要接液部件

  • 过程连接

    Threads:

    3/4", 1"


    Flanges:

    DN25...DN100

    ASME 1"...4"

    JIS 50A

  • 传感器长度

    传感器长度

  • 通信

    2-wire direct load

    DC-PNP 3-wire

    Relays

    NAMUR

    PFM

    Bluetooth® wireless technology

  • 证书和认证

    ATEX, IEC Ex

  • 安全认证

    安全认证

  • 设计认证

    设计认证

  • 选项

    选项

  • 组件

    组件

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 15
    • Nr 15 Order code 71435135

      电缆格兰头 M20,塑料 适用型号: FTL41,FTL51B,PMC51B,P

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435136

      电缆格兰头 M20,铜镀镍 适用型号: FMG50,FTL41,FTL51B,P

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435137

      电缆格兰头 M20,316L 适用型号: FMG50,FTL51B,PMC51B

      Usage: FMG50, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435138

      插接头M20, 黄铜镀镍 适用于: screw-in thread, FMG50

      Usage: M12 screw-in thread, brass nickel plated, FMG50, FTL51B, FTL62/FTL64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

  • 20
    • Nr 20 Order code 71435116

      外壳盖,铝,密闭盖,密封圈,HNBR。适用型号: FMG50,FTL41,FTL

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 20 Order code 71435118

      外壳盖,铝,密闭盖,Ex d 密封圈,HNBR。适用型号: FMG50,FTL4

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71435122

      外壳盖,316L,密闭盖,Ex d 密封圈,HNBR。适用型号: FMG50,F

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71435126

      外壳盖,塑料,密闭盖,密封圈,EPDM。适用型号: FTL41,FTL51B。

      Sealing ring, EPDM. Usage: FTL41, FTL51B, FTL62/64.

    • Nr 20 Order code 71435127

      外壳盖,塑料,BT/LED 模块 密封圈,EPDM。用于 Bluetooth/L

      Sealing ring, EPDM. For Bluetooth/LED module. Usage: FTL51B, FTL62/64.

    • Nr 20 Order code 71435129

      外壳盖,铝,视窗,BT/LED 模块 密封圈,HNBR。材质 视窗: 塑料。用于

      Sealing ring, HNBR. Material sight window: plastic. For Bluetooth/LED module. Usage: FTL51B, FTL62/64.

    • Nr 20 Order code 71435130

      外壳盖,铝,视窗,Ex d,BT/LED 密封圈,HNBR。材质 视窗: 玻璃。

      Sealing ring, HNBR. Material sight window: glass. For Bluetooth/LED module. Usage: FTL51B, FTL62/64.

  • 21
  • 30
  • 40
    • Order code 52010285

      M12航空插头,90度弯头,带5m电缆

      适用于M12插头 带5m电缆 PVC材质,铜镀锡/ 镍锁紧螺母

    • Order code 52024216

      电缆插座

      M12x1 plug 5m cable PVC, 316L lock Especially for sanitary applications

    • Order code 71437508

      测试磁铁,FTL51B 适用型号: FTL51B。

      Usage: FTL51B.

    • Order code 52003663

      滑动套筒100bar G1,316L 开关动作点可调整。最大100bar过程压力

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: disassembly protection under pressure Material: 316L

    • Order code 52011880

      滑动套筒100bar G1,316L,3.1开关动作点可调整。最大100bar过

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003665

      滑动套筒100bar G1-1/2,316L 开关动作点可调整。最大100bar

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: disassembly protection under pressure Material: 316L

    • Order code 52011882

      滑动套筒100bar G1-1/2,316L,3.1开关动作点可调整。最大100

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003667

      滑动套筒100bar NPT1,316L 开关动作点可调整。最大100bar过程

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L

    • Order code 52011881

      滑动套筒100bar NPT1,316L,3.1开关动作点可调整。最大100ba

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003669

      滑动套筒100bar NPT1-1/2,316L 开关动作点可调整。最大100b

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L

    • Order code 52011883

      滑动套筒100bar NPT1-1/2,316L,3.1开关动作点可调整。最大1

      FTL51/FTL71 Switch point adjustment max 100bar process pressure :: Disassembly protection under pressure Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71118691

      滑动套筒100bar G1,AlloyC22,3.1开关动作点可调整。最大100

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL41, FTL51, FTL51B, FTL71, FTL81.

    • Order code 71118693

      滑动套筒100barG1-1/2,AlloyC22,3.1开关动作点可调整。最大

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL41, FTL51, FTL51B, FTL71, FTL81.

    • Order code 71118694

      滑动套筒100bar NPT1,AlloyC22,3.1开关动作点可调整。最大1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL41, FTL51, FTL51B, FTL71, FTL81.

    • Order code 71118695

      滑动套筒100barNPT1-1/2,AlloyC22,3.1开关动作点可调整。

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL41, FTL51, FTL51B, FTL71, FTL81.

    • Order code 52003978

      滑动套筒G1,316L 开关动作点可调整。低压环境。材质: 316L。适用型号:

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L

    • Order code 52011888

      滑动套筒G1,316L,3.1开关动作点可调整。低压环境。材质: 316L。检验

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003980

      滑动套筒G1-1/2,316L 开关动作点可调整。低压环境。材质: 316L。适

      FTL51/FTL71 Switch point adjustment For pressureless condition Material: 316L

    • Order code 52011890

      滑动套筒G1-1/2,316L,3.1开关动作点可调整。低压环境。材质: 316

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003979

      滑动套筒NPT1,316L 开关动作点可调整。低压环境。材质: 316L。适用型

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L

    • Order code 52011889

      滑动套筒NPT1,316L,3.1开关动作点可调整。低压环境。材质: 316L。

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52003981

      滑动套筒

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L

    • Order code 52011891

      滑动套筒NPT1-1/2,316L,3.1开关动作点可调整。低压环境。材质: 3

      FTL51/FTL71 Switch point adjustment for pressureless condition Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71438291

      遮阳罩,塑料,XW111 适用型号: FTL41,FTL51B,PMC51B,P

      Usage: FTL41, FTL51B, PMC51B, PMD55B, PMP51B.

    • Order code 71438303

      遮阳罩

      Usage: FMG50, FTL51B, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.
