Proline Promass E 500
科里奥利质量流量计

科里奥利质量流量

Flowmeter with minimized total cost of ownership, as remote version with up to 4 I/Os.
Accurate measurement of liquids and gases for a wide range of standard applications.

Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).

Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.

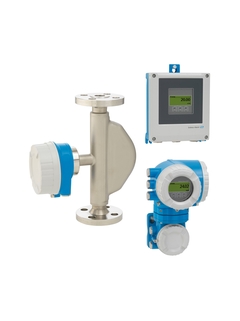

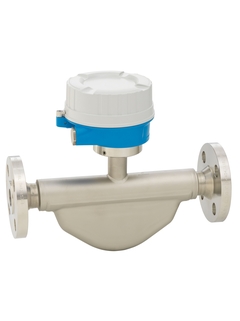

Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

DN 8...80 (⅜...3")

测量管：1.4539 (904L)
连接部件：1.4404 (316/316L)

质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

质量流量（液体）：±0.15 %（标准）、±0.10 %（可选）
体积流量（液体）：±0.15 %
质量流量（气体）：±0.5 %
密度（液体）：±0.0005 g/cm³

0...180 000 kg/h (0...6615 lb/min)

PN 100，Cl. 600，63K

–40...+150 °C (–40...+302 °F)

标准：–40...+60 °C (–40...+140 °F)
可选：–50...+60 °C (–58...+140 °F)

1.4301 (304)，耐腐蚀
传感器接线盒（标准）：铝合金AlSi10Mg涂层
传感器接线盒（可选）：1.4301 (304)、1.4404 (316L)

铝合金AlSi10Mg涂层；1.4409 (CF3M)，类同316L；聚碳酸酯

分体式传感器（标准）：IP66/67，Type 4X
分体式传感器（可选）：IP69。分体式变送器：IP66/67, Type 4X

四行背光显示，触摸键操作（外部操作）
通过现场显示单元和调试软件设置

4路输出：
4...20 mA HART（有源/无源）
4...20 mA WirelessHART
4...20 mA（有源/无源）
脉冲/频率/开关量输出（有源/无源）
双脉冲输出（有源/无源）
继电器输出

状态输入
4...20 mA输入

HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

24 VDC
100...230 VAC
100...230 VAC / 24 VDC（非危险区）

ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

CE认证、C-tick认证、EAC认证

功能安全遵循IEC 61508标准，允许在IEC 61511标准规定的安全应用中使用

在认证标定装置上执行标定（符合ISO/IEC 17025标准）
Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

LR approval, DNV approval, ABS approval, BV approval, CCS approval

PED、CRN

3.1材料证书

3-A、EHEDG

科里奥利质量流量

Flowmeter with minimized total cost of ownership, as remote version with up to 4 I/Os.
Accurate measurement of liquids and gases for a wide range of standard applications.

LR approval, DNV approval, ABS approval, BV approval

科里奥利质量流量

Flowmeter with minimized total cost of ownership, as remote version with up to 4 I/Os.
Accurate measurement of liquids and gases for a wide range of standard applications.

Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).

Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

科里奥利质量流量

Flowmeter with minimized total cost of ownership, as remote version with up to 4 I/Os.
Accurate measurement of liquids and gases for a wide range of standard applications.

Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).

Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

DN 8 to 80 (⅜ to 3")

Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Mass flow (liquid): ±0.15 % (standard), ±0.10 % (option)
Volume flow (liquid): ±0.15 %
Mass flow (gas): ±0.50 %
Density (liquid): ±0.0005 g/cm³

0 to 180 000 kg/h (0 to 6615 lb/min)

PN 100, Class 600, 63K

–40 to +150 °C (–40 to +302 °F)

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)

1.4301 (304), corrosion resistant
Sensor connection housing (standard): AlSi10Mg, coated
Sensor connection housing (option): 1.4301 (304); 1.4404 (316L)

AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

Sensor remote version (standard): IP66/67, type 4X enclosure
Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure

4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible

4 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output

Status input
4-20 mA input

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC

CE, C-tick, EAC marking

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

LR approval, DNV approval, ABS approval, BV approval, CCS approval

PED, CRN

3.1 material

3-A, EHEDG, cGMP
