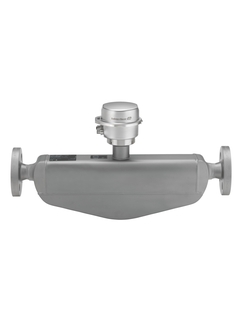

Proline Promass H 100
科里奥利质量流量计

科里奥利质量流量

Chemically resistant single-tube flowmeter with an ultra-compact transmitter.
Measuring highly accurately liquids and gases in applications requiring highest corrosion resistance.

Maximum safety for chemically aggressive fluids – corrosion‐resistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2"). Medium temperature up to +205 °C (+401 °F).

Space-saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

DN 8...50 (³⁄₈...2⁄")

测量管：钽2.5W；702 (UNS R60702)
连接部件：钽；702 (UNS R60702)

质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

质量流量（液体）：±0.1 %
体积流量（液体）：±0.1 %
质量流量（气体，仅适用钽材）：±0.5 %
密度（液体）：±0.0005 g/cm³

0...70 000 kg/h (0...2570 lb/min)

PN 40、Cl. 300、20K

钽：–50...+150 °C (–58...+302 °F)
锆：–50...+205 °C (–58...+401 °F)

标准：–40...+60 °C (–40...+140 °F)
可选：–50...+60 °C (–58...+140 °F)

1.4301 (304)，耐腐蚀

一体式：铝合金AlSi10Mg涂层
一体式/超紧凑型一体式：1.4301 (304)

标准：IP66/67，Type 4X
可选：IP69

四行背光显示（无现场操作）
通过网页服务器和调试软件设置

4...20 mA HART（有源）
脉冲/频率/开关量输出（无源）

无

HART、Modbus RS485、EtherNet/IP、PROFIBUS DP、PROFINET

20...30 VDC

ATEX, IECEx, cCSAus, INMETRO, NEPSI

CE认证、C-tick认证、EAC认证

在认证标定装置上标定（符合ISO/IEC 17025标准）、NAMUR
Heartbeat Technology（心跳技术）符合溯源校验要求，符合ISO 9001:2008标准章节7.6 a（TÜV认证）

PED、CRN

3.1材料证书

科里奥利质量流量

Chemically resistant single-tube flowmeter with an ultra-compact transmitter.
Measuring highly accurately liquids and gases in applications requiring highest corrosion resistance.

Maximum safety for chemically aggressive fluids – corrosion‐resistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2"). Medium temperature up to +205 °C (+401 °F).

Space-saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

DN 8 to 50 (³⁄₈ to 2")

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas, Tantalum only): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 70 000 kg/h (0 to 2570 lb/min)

PN 40, Class 300, 20K

Tantalum: –50 to +150 °C (–58 to +302 °F)
Zirconium: –50 to +205 °C (–58 to +401 °F)

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)

1.4301 (304), corrosion resistant

Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)

Standard: IP66/67, type 4X enclosure
Option: IP69

4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible

4‐20 mA HART (active)
Pulse/frequency/switch output (passive)

None

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

DC 20 to 30 V

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

CE, C-Tick, EAC marking

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for traceable verification cording to ISO 9001:2008 – Section 7.6a (TÜV SÜD attestation)

PED, CRN

3.1 material
