振动式
限位检测
Liquiphant FTL33

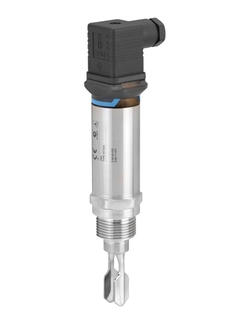

音叉开关 - Liquiphant FTL33限位检测 ©Endress+Hauser

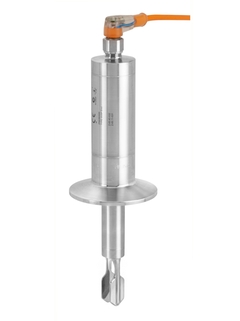

音叉开关 - Liquiphant FTL33限位检测 ©Endress+Hauser

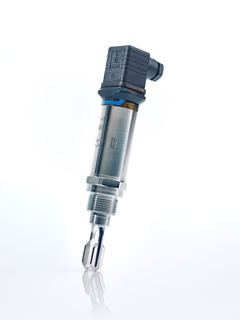

音叉开关 - Liquiphant FTL33限位检测 ©Endress+Hauser

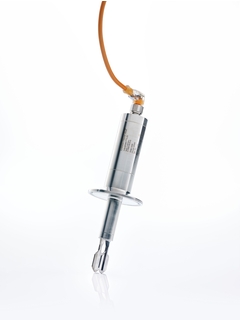

音叉开关 - Liquiphant FTL33限位检测 ©Endress+Hauser

限位检测开关采用紧凑的卫生型设计和不锈钢外壳,适用于食品行业

Liquiphant FTL33液体限位开关专门为卫生要求高的食品和饮料行业所设计。Liquiphant特别适用于储罐、混合罐和管道中的溢出保护或泵空转保护。IO-Link功能可轻松实现参数设置。
紧凑:
- 市场上最小尺寸的振动式传感器
安全:
- 连续自监控
- 可靠开关动作,不受介质属性的影响
简单:
- 无需标定或调节
- 即插即用
- IO-Link 连接

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 设计用于卫生型应用场合,特别是食品行业 - 提供卫生型过程连接和认证

    • 耐CIP和SIP清洗 - 最高防护等级为IP69k

    • 设计符合最高质量和环境持续性要求,自监控的Liquiphant即使在断电时也能提供安全开关动作。

    • 不受介质特性变换的影响,提供精确开关点

    • 在介质变化的工况下,无需调节、即插即用的限位开关。测量不受电导率、粘附、扰动、流动或气泡的影响

    • 无需标定,无需特定知识或工具(例如:软件)

    • 坚固耐用的不锈钢(316L)材质,具有最高耐久性 - 无机械可移动部件,免维护

  • 应用领域

    FTL33是适用于卫生型应用的紧凑型限位开关,适用于食品行业中的液体测量,以及生命科学行业。

    • 过程连接:螺纹,M24过程适配接头,DIN11851,Tri-clamp卡箍,齐平安装

    • 温度:-40...+150°C (-40...+302°F)

    • 压力:-1...+40bar (-14.5...580psi)

    • 表面光洁度:0.76µm或1.5µm

    • 认证:WHG溢出保护和泄漏检测、EHEDG、3-A、FDA、CSA C/US、3.1材料证书、最终检测报告

特征和规格

返回

Details

  • 测量原理

    液体音叉

  • 特点/应用

    液体限位开关,适用于食品行业

  • 电源/通信

    20...253V AC/DC,两线制
    10...35V DC-PNP,三线制

  • 环境温度

    40...70°C
    (-40...158°F)

  • 过程温度

    -40...150 °C
    (-40...302 °F)

  • 过程压力(绝压)/最大过压限定值

    真空...40 bar
    (真空...580 psi)

  • 最小介质密度

    >0.7g/cm³
    (>0.5g/cm³,可选)

  • 主要接液部件

    316L

  • 过程连接

    螺纹:
    G1/2、G3/4、G1、MNPT1/2、MNPT3/4、MNPT1、R1/2、R3/4、R1

  • 卫生型过程连接

    齐平安装在焊座中
    DIN11851接头
    Tri-Clamp

  • 通信

    AC/DC,DC-PNP

  • 证书和认证

    CSA C/US、EAC

  • 安全认证

    溢出保护WHG
    泄漏

  • 设计认证

    EN 10204-3.1

  • 卫生型认证

    3A、EHEDG

  • 选项

    开关切换延迟时间
    除油脂清洗
    表面抛光测量

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 57
    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 71258357

      焊接适配器 G3/4, d=29, 316L

      Flush mount process connection. For pipe-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33.

    • Order code 52028295

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ" w/o flange Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52028294

      Weld-in adapt. G3/4,d=29,316L,sleeve,3.1

      Flush mount FTL20/FTL20H, FTL31/FTL33, w/o flange. Only weld-in adapter w/o seal and ring. Inspection cert. EN10204-3.1 material (316L wetted parts).

    • Order code 71258355

      焊接适配器 G3/4 d=50, 316L

      Flush mount process connection. For vessel-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33, FMI51, FTI51, 11371. Usage: TMR35.

    • Order code 52018765

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ", FMI51, FTI51 "GQJ" Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52028293

      Weld-in adapt. G3/4,d=50,316L,sleeve,3.1

      Flush mount FTL20/FTL20H, FTL31/FTL33, flange. Only weld-in adapter w/o seal and ring. Inspection cert. EN10204-3.1 material (316L wetted parts).

    • Order code 71258358

      焊座 G1, d=53, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 71093129

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52001051

      焊座,G1,d=60

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52011896

      焊座,G1,d=60 ,3.1材质认证

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52001221

      焊座

      Flush mount process connection FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring

    • Order code 52011898

      焊座

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71041381

      焊座M24 D65

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71041383

      焊座M24 D65,3.1材质认证

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 52001047

      焊座

      齐平式安装 过程连接 材质: 316L

    • Order code 52006909

      焊座

      Flush mount process connection FTL20H "UPJ", FTL50H/FTL51H "EE2" Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52021717

      O型圈

      for weld-in adapter G3/4 D=50 316L Liquiphant T FTL20H

    • Order code 71086117

      O型圈

      Material: silicone VMQ 80. USP Class VI. Usage: Weld-in adapter G3/4, 316L, (71258355) vesselmounting, (71258357) pipe-mounting, flush mount, FTL31/FTL33, FTW23/FTW33, QMW43, Weld-in adapter G3/4, 316L, 3.1, (52018765) vesselmounting, (52028295) pipe-mounting, flush mount, FMI51, FTI51, FTL31/FTL33, FTW23/FTW33, QMW43.

    • Order code 52014472

      O型圈

      for weld-in adapter G1 (52001051) Liquiphant M "GW2" Liquiphant T "7", Liquicap M "GWJ", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for weld-in andapter G1, 316L 3.1 (52011896) Liquiphant M "GW2", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for sliding sleeve Soliphant T

    • Order code 71086102

      O型圈

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O型圈

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 52014424

      密封垫圈

      for weld-in adapter G1, adjustable, 316L (52001221) Liquiphant M "GW2" for weld-in adapter G1, adjustable, 316L (52011898) Liquiphant M "GW2" for weld-in adapter G1, adjustable Liquiphant FTL330H/FTL330L, Liquiphant T FTL20H "UPJ

    • Order code 71075662

      密封垫圈

      Material: silicone VMQ. USP Class VI, FDA. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.

    • Order code 52023997

      过程转换接头M24- Variv. N DN50 PN40

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024004

      过程转换接头M24- Variv. N DN50 PN40,3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023996

      过程转换接头M24- Variv.F DN32 PN40

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024003

      过程转换接头M24- Variv.F DN32 PN40,3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023998

      过程转换接头M24- DIN11851 DN50

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024005

      过程转换接头M24- DIN11851 DN50,3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Abnahmepr黤zeugnis EN10204-3.1 Material

    • Order code 52026997

      过程转换接头M24- SMS 1-1/2"

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52026999

      过程转换接头M24- SMS 1-1/2",3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52024267

      EPDM O型圈

      5x O-ring 15.54x2.62mm FDA, 3A compliant Ceraphant T process adapter

    • Order code 52021715

      活接头螺母

      for process connection UPJ flush mount weld in adapter 52001047 Liquiphant T FTL20H

    • Order code 71258359

      螺母

      DIN11851 DN32. Usage: FTL20H, FTL33.

    • Order code 71258361

      螺母

      DIN11851 DN32. Usage: FTL20H, FTL33, FTW33, PMP23, PTP33B.
