Micropilot FMR57

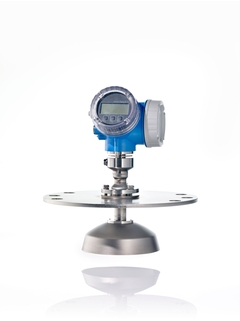

Micropilot FMR57 天线单元直径 200 (8"), 通用法兰直径200 (8"), 抛物面天线, 铝制 ©Endress+Hauser

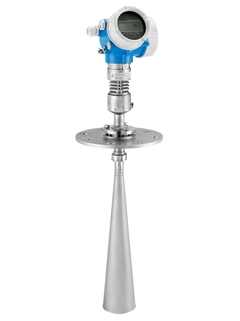

Micropilot FMR57 ©Endress+Hauser

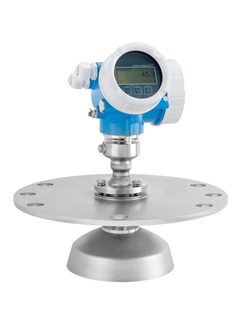

Micropilot FMR57特写 ©Endress+Hauser
  • Micropilot FMR57 天线单元直径 200 (8"), 通用法兰直径200 (8"), 抛物面天线, 铝制
  • Micropilot FMR57
  • Micropilot FMR57特写

满足最高测量要求的标准型固体散料物位传感器

Micropilot FMR57传感器可满足最高的固体散料物位测量要求, 适用于高大贮仓，煤仓或堆场的物位测量。抛物面天线的发射角度非常小，适用狭长形贮仓的物位测量。Micropilot雷达物位仪适用于粉状、粒状等固体散料的连续性、非接触式的物位测量。测量不受粉尘、进料噪音、温度变化、气相介质变化的影响。

Extended选型
  • F
  • L
  • E
  • X

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富，适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 测量精度

      +/- 3 mm (0.12 in)

    • 过程温度

      -40...+400 °C
      (-40...+752 °F)

    • 过程压力（绝压）/最大过压限定值

      真空...16 bar
      (真空...232 psi)

    • 最大测量距离

      70 m (230 ft)

    • 主要接液部件

      316L、PEEK、PTFE、聚酰胺

Loading alternative products

快速选择

从我们建议的选项中选择
售价
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

FMR57
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
价格核算中…
暂时无价格信息
from CHF 803.-
  • 可选附加功能
请使用 Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

  • 优势

    • 硬件和软件开发过程符合IEC 61508标准，单台仪表满足SIL2， 同构冗余条件下达SIL3

    • HistoROM集成数据存储单元，帮助快速调试、维修和诊断

    • 测量可靠性高，基于多回波追踪计算，即使仓内存在障碍物依然能够准确测量

    • 心跳技术，在整个生命周期内实现高效、安全的工厂运营

    • 无缝集成到控制或资产管理系统，直观的菜单引导式操作概念（现场或通过控制系统）

    • 测量稳定可靠，不受介质和过程条件变化的影响

    • 通过世界权威的SIL和WHG实验认证，节约您的时间和经济成本

  • 应用领域

    喇叭形或抛物面天线。凭借补助空气净化连接，即使强力喷粉或产生黏附，都不会对测量造成任何影响。

    • 过程连接：1½" 螺纹或法兰

    • 温度范围：-40 至 +400°C (–40 到 752°F)

    • 压力范围：-1 至+16bar (-14.5 到 +232psi)

    • 最大测量范围：70m (230ft)

    • K波段：26GHz

    • 国际防爆认证, SIL, 5点线性协议

特征和规格

返回

Details

  • 测量原理

    固体物位雷达

  • 特点/应用

    适用最高要求的固体散料的料位测量：
    在严苛工况下的高料仓、料堆、堆料中可靠进行非接触式料位测量，例如严重粉尘场合和粘附介质

  • 特点

    多路回波跟踪确保安全性和可靠性
    空气吹扫接口
    HistoROM智能数据存储单元

  • 电源/通信

    两线制（HART、PROFIBUS PA、FOUNDATION Fieldbus）
    四限制（HART）

  • 频率

    K波段（约26 GHz）

  • 天线

    抛物面天线，DN200/8"、DN250/10"
    喇叭天线：DN80/3"、DN100/4"

  • 测量精度

    +/- 3 mm (0.12 in)

  • 环境温度

    -40...+80 °C
    (-40...+176 °F)

  • 过程温度

    -40...+400 °C
    (-40...+752 °F)

  • 过程压力（绝压）/最大过压限定值

    真空...16 bar
    (真空...232 psi)

  • 主要接液部件

    316L、PEEK、PTFE、聚酰胺

  • 过程连接

    螺纹：
    MNPT 1 1/2、R 1 1/2
    法兰：
    DN80...DN100、
    ASME 3"...4"、
    JIS 10K、
    UNI DN100/8"...DN250/10"

  • 最大测量距离

    70 m (230 ft)

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, KC

  • 安全认证

    SIL

  • 设计认证

    EN 10204-3.1

  • 船级认证

    GL、ABS、LR、BV、DNV

  • 选项

    显示单元
    用户自定义参数
    天线延伸管
    免PWIS

  • 应用限制

    Dk < 1.6
    以下因素会减小最大量程：
    反射特性不佳的介质
    安息角
    十分松散的固体散料表面，例如气动进料过程中的轻质散料
    粘附，特别是潮湿介质粘附
