Micropilot M FMR250

此产品现已不再销售。

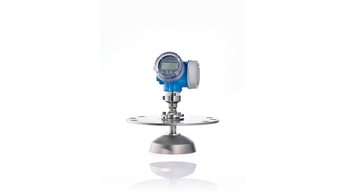

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

测量原理

固体物位雷达
特点/应用

粉料及颗粒状固料的非接触式物位测量
特点

空气吹洗标准头
电源/通信

两线制HART
频率

~ 26 GHz
天线

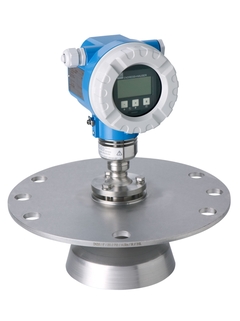

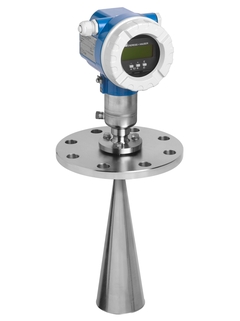

"DN200/8"抛物面天线；DN80/3", DN100/4"喇叭天线"
测量精度

±15mm (或量程的 0,04% ，两者较大的)
环境温度

-40...+80℃
过程温度

-40...+200℃
过程压力（绝压）/最大过压限定值

真空可达16bar
主要接液部件

PEEK, 1.4435, 1.4404, 316L
过程连接

"R1 1/2", NPT1 1/2；EN法兰：DN80, DN 100、ANSI法兰：3", 4"、JIS法兰：80A, 100A、UNI法兰：UNI DN100/4"/100A、UNI DN200/8"/200A"
盲区距离

天线长度 + 400mm
最大测量距离

70m
通信

4 ... 20 mA HART，PROFIBUS PA
证书和认证

ATEX，FM，CSA
选项

"分离型显示；250mm/ 10"或450mm/18"天线延伸管；调解器 (± 15°)"
应用限制

Dk < 1,6

显示更多
显示更少

文档/手册/软件

下载类型

过滤

技术资料 Micropilot M FMR250
雷达物位仪
连续、非接触式固体料位测量
经济的4...20 mA 两线制技术

技术信息(TI)
Micropilot M FMR250 PROFIBUS PA Operating Instructions
Continuous and non-contact level measurement in solids.
Cost-effective 4 to 20mA 2-wire technology.

操作手册（BA）
Micropilot M FMR240, 244, 245, 250 HART, PROFIBUS PA, FOUNDATION Fieldbus Description of Instrument Functions
Continuous and con-contact level measurement.
Cost-effective 4 to 20 mA 2-wíre technology.
Suitable for hazardous locations.

操作手册（BA）
操作手册 Micropilot M FMR250
雷达物位仪

操作手册（BA）
Micropilot M FMR250 FOUNDATION Fieldbus Operating Instructions
Continuous and non-contact level measurement in solids.
Cost-effective 4 to 20mA 2-wire technology.

操作手册（BA）
简明操作指南 Micropilot M FMR250
雷达物位仪

Short Instruction (KA)

12/09

英语
简明操作指南 Micropilot M FMR250
雷达物位仪

Short Instruction (KA)

12/09

英语
简明操作指南 Micropilot M FMR250
Micropilot M FMR250
雷达物位仪

Short Instruction (KA)

12/09

英语
Micropilot M FMR240, FMR244, FMR245, FMR250 Kurzanleitung / Brief operating instructions
Micropilot M FMR240, FMR244, FMR245, FMR250

Kurzanleitung / Brief operating instructions

Short Instruction (KA)

08/06

德语 , 英语
Micropilot M FMR250 HART (SW 1.0) Instalation instructions for parabolic reflector
Smart Transmitter for continuous and non-contact level measurement in
solids. Cost-effective 420 mA 2-wire technology.

Short Instruction (KA)

07/04

德语 , 英语 , 西班牙语 , French , 意大利语 , 荷兰语
FMR2x, FMP4x, FMU4x - Exchange of terminal module
FMR2x, FMP4x, FMU4x - Exchange of terminal module

Short Instruction (KA)

04/21

英语
Micropilot II/M - exchange of housing F12
Micropilot II/M - exchange of housing F12

Short Instruction (KA)

04/21

德语 , 英语
Micropilot II/M - exchange of housing T12
Micropilot II/M - exchange of housing T12

Short Instruction (KA)

04/21

德语 , 英语
Micropilot M, Leveflex M, Prosonic M - Modification of F12 housing (2 wire) for connection of FHX40
Micropilot M, Leveflex M, Prosonic M - Modification of F12 housing (2
wire) for
connection of FHX40

Short Instruction (KA)

04/21

德语 , 英语
Terminal module for housing F12/F23 Installation Instruction
Micropilot M, Levelflex M, Prosonic M

安装指南(EA)
Antenna assembly for FMR250 Installation instruction
Micropilot M FMR250

安装指南(EA)
Cable separate version Installation Instructions
Cerabar M, Cerabar S, Deltabar S, Deltapilot M, Deltapilot S

安装指南(EA)
Cover F23 Installation instruction
Levelflex M, Micropilot M

安装指南(EA)
Safety Instructions Micropilot M FMR250
HART
II 1/2 G, II 2 G Ex ia IIC T6...T1
II 1/2 D, II 1/3 D Ex iaD 20/2x IP6x T xx °C
PTB 04 ATEX 2108 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
PROFIBUS PA, FOUNDATION Fieldbus
II 1/2 G Ex d [ia] IIC T6...T1
PTB 04 ATEX 2108 (ATEX)

Ex 防爆说明(XA)
Micropilot M FMR250, FMR255
Control drawing FM

Drawing No.: 960006749 E

Ex 防爆说明(XA)
Safety Instructions Micropilot M, Levelflex M, Prosonic M
FM Control Drawing
EMC C-module for ToF apparatus
Cl. I, II, III, Div. 2, Group A, B, C, D, E, F, G
and Cl. I, Zone 2, Group IIC
NIFW installation

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
HART
II 1/2 G Ex d [ia] IIC T6...T1
PTB 04 ATEX 2108 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
PROFIBUS PA, FOUNDATION Fieldbus
II 1/2 D, II 1/3 D, II 2 D Ex tD ... IP6x Txx°C, Ex tD ... [Ex iaD]
IP6x Txx°,
Ex iaD ... IP6xTxx°C
PTB 04 ATEX 2108 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
4-20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
Ex d ia [ia Ga] IIC T1...T6 Ga/Gb
GYJ13.1095X (NEPSI)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
HART
II 1/2 G Ex ia IIC T6...T1
PTB 04 ATEX 2108 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
4-20 mA HART
Ex ia IIC T1...T6 Ga
GYJ13.1094X (NEPSI)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR230, FMR231, FMR240, FMR244, FMR245, FMR250
II 3 G Ex nA IIC T6...T1 Gc
EG 01 025

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
HART
II 1/2 D, II 2 D, II 1/3 D Ex tD ... IP6x T xx °C
PTB 04 ATEX 2108 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
PROFIBUS PA, FOUNDATION Fieldbus
Ex ia IIC T1...T6 Ga
GYJ13.1094X (NEPSI)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
PROFIBUS PA, FOUNDATION Fieldbus
II 1/2 G Ex ia IIC T6...T1
PTB 04 ATEX 2108 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
PROFIBUS PA, FOUNDATION Fieldbus
II 1/2 G, II 2 G Ex ia IIC T6...T1
II 1/2 D, II 1/3 D Ex iaD 20/2x IP6x T xx °C
PTB 04 ATEX 2108 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Micropilot M FMR250
4-20 mA HART
DIP A20/21 TA, T IP65
DIP A21 TA, T IP65
DIP A20/22 TA, T IP65
GYJ13.1096 (NEPSI)

Ex 防爆说明(XA)
Micropilot M FMR250, FMR255
PROFIBUS PA, FOUNDATION Fieldbus

FM

Drawing No.: 960007254 A, 960007257 A Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
HART

CSA

Drawing No.: 960007253 A, 960007256 A Drawing Type: Control drawing

证书FM/CSA (ZD)
Grounding of screen variations
Screen grounding

证书FM/CSA (ZD)
Micropilot M FMR250
IS-HART

CSA

Drawing No.: 960006750 A Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
Control drawing FM

Drawing No.: 960006749 D

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
Drawing No.: 960007253 C, 960007256 C

Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
HART

FM

Drawing No.: 960006749 B Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
Drawing No.: 960006751 E

Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
Control drawing FM

Drawing No.: 960006749 C

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
HART

CSA

Drawing No.: 960006751 B Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
IS-HART

CSA

Drawing No.: 960006750 B Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
HART

CSA

Drawing No.: 960006751 C Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
IS-HART

FM

Drawing No.: 960006748 B Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
Control drawing FM

Drawing No.: 960007254 B, 960007257 B

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
IS

FM

Drawing Type: Control drawing

Drawing No.: 960006748 D

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
Drawing No.: 960006750 D

Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
Control drawing FM

Drawing No.: 960007254 C, 960007257 C

证书FM/CSA (ZD)
Micropilot M FMR250, FMR255
HART

CSA

Drawing No.: 960007253 B, 960007256 B Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250
IS-HART

FM

Drawing No.: 960006748 A Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR250
HART

CSA

Drawing No.: 960006751 A Drawing Type: Control drawing

证书FM/CSA (ZD)
Micropilot M FMR230/231, FMR240/244/245, FMR250 Functional Safety Manual
Level-Radar with 4 to 20 mA Output Signal

特殊资料(SD)
Alignment of the housing
Alignment of the housing

特殊资料(SD)
Micropilot M FMR250
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

特殊资料(SD)
Interoperability Statement: Micropilot M, FOUNDATION fieldbus
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Micropilot M, FOUNDATION fieldbus Level Transmitter, Device Revision: 3,
DD Revision: 3, Device ID: 0x100F, Software Revision: 2.04

特殊资料(SD)
Interoperability Statement: Micropilot M, FOUNDATION fieldbus
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Micropilot M, FOUNDATION fieldbus Level Transmitter, Device Revision: 4,
DD Revision: 1, Device ID: 0x100F, Software Revision: 4.00

特殊资料(SD)
Micropilot M FMR230, FMR231, FMR240, FMR244, FMR245, FMR250 Micropilot S FMR530, FMR532, FMR533, FMR540 Hinweis zur Montage
Füllstand-Radar für Flüssigkeiten und Schüttgüter

特殊资料(SD)
Horn cover for Micropilot M FMR240/250
Horn cover for 80 mm (3") and 100 mm (4") horn antenna.

特殊资料(SD)
Micropilot M/S FMR250/540 Instalation instructions for parabolic reflector
Smart Transmitter for continuous and non-contact level measurement in
solids. Cost-effective 420 mA 2-wire technology.

特殊资料(SD)
Levelflex M FMP40, FMP41C, FMP43, FMP45 Micropilot M FMR230, FMR231, FMR240, FMR244, FMR245, FMR250 Hinweis zur Montage
Füllstand-Radar für Flüssigkeiten und Schüttgütern

Geführtes Füllstand-Radar für Flüssigkeiten und Schüttgüter

特殊资料(SD)
Micropilot M FMR230/231, FMR240/244/245, FMR250
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

特殊资料(SD)
Interoperability Statement: Micropilot M, HART
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Micropilot M, HART Level Transmitter, Device Revision: 2, Device ID:
0x0f, Software Revision: 1.02.00

特殊资料(SD)
Micropilot M FMR250 Functional Safety Manual
Level-Radar with 4 to 20 mA Output Signal

特殊资料(SD)
Interoperability Statement: Micropilot M, FOUNDATION fieldbus
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Micropilot M, FOUNDATION fieldbus Level Transmitter, Device Revision: 3,
DD Revision: 3, Device ID: 0x100F, Software Revision: 1.0

特殊资料(SD)
PRM HART Package V1.08.00 Manufacturer Information includes PRM - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.08.00

生产商信息(MI)
PRM FOUNDATION fieldbus Package V1.05.00 Manufacturer Information includes PRM - Device List, Release Notes – FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.05.00

生产商信息(MI)
AMS FOUNDATION fieldbus Package V1.06.00 Manufacturer Information includes AMS - Device List, Release Notes – FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.06.00

生产商信息(MI)
AMS HART Package V1.12.00 Manufacturer Information includes AMS - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.12.00

生产商信息(MI)
Micropilot M FMR23x / FMR24x / FMR250 Manufacturer Information for users regarding software updates (NE53)
Software version V01.04.00 HART and PROFIBUS PA

生产商信息(MI)
Micropilot M FMR24x / FMR250 Manufacturer information for users regarding software updates (NE53)
Software version V01.05.00 HART and PROFIBUS PA

生产商信息(MI)
Please fill in. (You can find example text among the HELP menu)
Please fill in. (You can find example text among the HELP menu)

生产商信息(MI)
Simatic PDM PROFIBUS Package V1.12.00 Manufacturer Information includes PDM - Device List, Release Notes – PROFIBUS
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.12.00

生产商信息(MI)
Simatic PDM HART Package 1.14.00 Manufacturer Information includes PDM - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.14.00

生产商信息(MI)
perspektiven Grundstoffe 2013
Kundenmagazin: Optimale Lösungen für Schüttgut-Profis

用户杂志(CM)

10/13

德语
Przetworniki poziomu Levelflex NiS_02_2011
Nowa rodzina innowacyjnych radarów falowodowych Levelflex
Evolution Series

公共出版物(PU)

04/12

波兰语
Anteny przetworników poziomu- art CE_05_2010
Kryteria doboru anteny bezkontaktowego, radarowego
przetwornika poziomu. Rozwiązania konstrukcyjne zwiększające
bezpieczeństwo i ułatwiające eksploatację.

公共出版物(PU)

03/12

波兰语
Przetworniki poziomu - art CE 04/2011
Przetworniki poziomu
Jednoczesne wytwarzanie ciepła i energii elektrycznej, czyli kogeneracja
to w ostatnich latach niezwykle popularne zagadnienie w polskiej
energetyce cieplnej i zawodowej. Pozwala ona na obniżenie poziomu
zużycia węgla w procesie wytwarzania energii. Ograniczenie emisji do
atmosfery szkodliwych gazów oraz zmniejszenie strat energii między
wytwórcą i odbiorcą.
Składowanie biomasy w elektrociepłowni lub w elektrowni.
Pomiary ilości biomasy w silosach magazynowych.

公共出版物(PU)

03/12

波兰语
Anteny przetworników poziomu- art CE_05_2010
Kryteria doboru anteny bezkontaktowego, radarowego
przetwornika poziomu. Rozwiązania konstrukcyjne zwiększające
bezpieczeństwo i ułatwiające eksploatację.

公共出版物(PU)

03/12

波兰语
Radar level measurement used in dog and cat food storage silo
Micropilot M - FMR250 solids radar provides excellent measurement on
finished dog and cat food.

案例分析(CS)

07/10

英语
Radar for level measurement in corn gluten silos
Micropilot M - FMR250 solids radar with parabolic antenna and extension
provides excellent measurement on corn gluten silos.

案例分析(CS)

07/10

英语
Micropilot M FMR250 in lime kiln - Chemical
Micropilot M FMR250 withstands heat in high temperature level
application

案例分析(CS)

06/10

英语
Level radar used to measure pneumatic filling through tough build up with air purge.
Micropilot M FMR250 aimed to the angle of repose of the sodium carbonate
allowed the radar signal through the open area in the center of the
tank. Therefore the free space signal was not locking on the product
bridge along the wall of the tank

案例分析(CS)

06/10

英语
Soybean extraction plant uses non-intrusive radar level device for application
Micropilot M FMR250 with 4” horn eliminates abrasion while measuring
soybean oil and meal during hexane extraction process, increasing its’
life span and sanitation.

案例分析(CS)

06/10

英语
Radar level detection of corn meal in 171 foot tall - 40 foot diameter silo
Micropilot M FMR250 meets challanging radar level application and
surpasses measurement expectations of customer

案例分析(CS)

06/10

英语
Level measurement with free space radar system in polypylene flakes
Micropilot M - FMR250 radar with air purges is used to measure low
dielectric polypropylene flakes in a silo

案例分析(CS)

06/10

英语
Case study: Solid solutions in inventory monitoring
Micropilot M FMR250 radar level gauge on glass cullet silos

案例分析(CS)

04/07

英语
Coal/biomass level measurements - Micropilot M radar
Case study on Coal/biomass level measurements - Micropilot M radar
level transmitter. GDF Suez.

案例分析(CS)

03/12

英语
Level mesurement in dog and cat food storage silos
Micropilot M - FMR250 solids radar provides excellent measurement on
finished dog and cat food pellets

案例分析(CS)

01/11

英语
IN004F IMR250 level for bulk solids applications
USA version of FMR250 IN Radar level for bulk solids applications

创新(IN)

03/05

us
Micropilot M Level-Radar via PROFIBUS PA to the PlantPAx Process Automation System
System using a 1788HP-EN2PAR Linking Device
Integration Document

系统合作伙伴(SP)

01/13

英语
Micropilot M Level-Radar via HART to the PlantPAx Process Automation System
System using a ControlLogix 1756 HART Analog Input Module
Integration Document

系统合作伙伴(SP)

01/09

英语
GSD Single, GSD_EH_PA_LE_Micropilot_M_0x1522b_PALIB, 14.04.2014 (Level, M icropilot M, 0x1522b)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

1.00.00

Language neutral
EDD Single, PDM_HART_LE_Micropilot_0x001E_0x04_0x01, 07.11.2018 (Level, Micropilot M, 0x001E)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_LE_MicropilotFMR25x_0x001E_0x05_0x02, 29.09.2014 (Le vel, Micropilot M, 0x001E)
HART,
PDM Version: 6.0 SP5, 8.1 SP1

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_LE_MicropilotM_0x100Fb_0x05_0x03_FF_ITK5_00, 09.11.2016 (Level, Micropilot M, 0x1
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 5.00

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_LE_MicropilotM_0x100Fb_0x05_0x05_FF_ITK5_20, 09.11.2016 (Level, Micropilot M, 0x1
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 5.20

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_LE_MicropilotM_0x1522b_Rev5_na, 21.02.2019 (Level, Micropilot M, 0x1522b)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, MicropilotM_FMR2xx_FF_V5_xx_DevRev5, 22.10.2020 (Level, Micropilot M, 0x100Fb)
FOUNDATION Fieldbus H1,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.6.55.40

Language neutral
DTM Single, MicropilotM_FMR25x_PA_V04_00, 20.10.2020 (Level, Micropilot M, 0x1522b)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.155.349

Language neutral
DTM Single, MicropilotM_FMR25x_PA_V5_xx, 20.10.2020 (Level, Micropilot M, 0x1522b)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.155.349

Language neutral
DTM Single, MicropilotM_FMR25x_V4_xx, 23.10.2020 (Level, Micropilot M, 0x001E)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, MicropilotM_FMR25x_V5_xx, 23.10.2020 (Level, Micropilot M, 0x001E)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Plant Resource Manager Version: R3.11

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, MicropilotM_FMR2xx_V1_00, 23.10.2020 (Level, Micropilot M, 0x001E)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
Faceplate Library, PRM_FF_Package_Level_1_05_00, 29.05.2018 (Level)
FOUNDATION Fieldbus H1,

Plant Resource Manager Version: R3.02, R3.12

Faceplate

1.05.00

Language neutral
Micropilot, Micropilot M, Micropilot S
产品型号: FMR57-, FMR56-, FMR540-, FMR54-, FMR533-, FMR532-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMR250-, FMR244-, FMR240-, FMR231-, FMR230-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC BY_112 11.01. TP020 003 126

Miscellaneous

俄语
Micropilot, Micropilot M
产品型号: FMR244-, FMR250-, FMR56-, FMR57-
证书号: TС RU D-DE.MU62.B.02534

Miscellaneous

俄语
Micropilot M
产品型号: FMR244-, FMR231-, FMR245-, FMR240-, FMR250-, FMR230-
地区/国家: USA, Canada
认证机构: CSA
类别: I/zone 0, I/zone 2, II,III/1/E,F,G/, I,II,III/1/A,B,C,D,E,F,G/, I/2/A,B,C,D/
保护: Ex/nC/IIC/T, Ex/ia/IIC/T

Explosion Protection

英语
Micropilot M
产品型号: FMR250-, FMR245-, FMR244-, FMR230-, FMR231-, FMR240-
地区/国家: USA
认证机构: FM
类别: I,II,III/1/ABCDEFG
保护: Antenna 6P, IS / AEx ia IIC T6 / NI / DIP, NEMA 4X

Explosion Protection

英语
Micropilot M
产品型号: FMR25X-, FMR250-
地区/国家: Canada
类别: K-BAND (25,5 GHZ)

Radio Equipment

英语 , French
Micropilot M
产品型号: FMR25X-, FMR250-
地区/国家: USA
认证机构: FCC
类别: K-BAND (25,5 GHZ)

Radio Equipment

英语
Micropilot M
产品型号: FMR25X-, FMR250-
认证机构: RegTP
类别: K-BAND (25,5 GHZ)

Radio Equipment

德语 , 英语
Product Family: Micropilot I, Micropilot II, Micropilot M
产品型号: FMR231E-, FMR231-, FMR240-, FMR245-, FMR250-, FMR230-, FMR130-, FMR131-, FMR230V-
地区/国家: International
认证机构: PI, PROFIBUS International
软件版本号: PROFILE 3.0

Fieldbus Conformance

英语
Product Family: Micropilot M
产品型号: FMR240-, FMR244-, FMR245-, FMR250-
地区/国家: International
认证机构: Fieldbus Foundation
软件版本号: DEVICE REV. 05, DD-ITK 5.20

Fieldbus Conformance

英语
Micropilot M
产品型号: FMR230-, FMR231-, FMR240-, FMR244-, FMR245-, FMR250-
地区/国家: Canada
认证机构: CRN

Pressure Equipment

英语
Micropilot M
产品型号: FMR230-, FMR231-, FMR240-, FMR244-, FMR245-, FMR250-
地区/国家: Canada
认证机构: CRN

Pressure Equipment

英语
Micropilot M
产品型号: FMR230-, FMR231-, FMR240-, FMR244-, FMR245-, FMR250-
地区/国家: Canada
认证机构: CRN

Pressure Equipment

英语
Micropilot M, Micropilot S
产品型号: FMR230-, FMR231-, FMR240-, FMR244-, FMR245-, FMR250-, FMR530-, FMR532-, FMR533-, FMR540-
地区/国家: Russia (GOST)
认证机构: Rosstandart
证书号: DE.C.29.004.A № 31102

Metrology

俄语
Micropilot M
产品型号: FMR250-, FMR245-, FMR244-, FMR240-, FMR231-, FMR230-
地区/国家: USA, Canada
认证机构: CSA
类别: GENERAL PURPOSE
保护: Type4X/6P

Ordinary Location Product Safety

英语

显示更多
显示更少

附件/备件

???显示为PDF???

搜索

过滤

Order code

Specification

- Order code 52006628

  有接头接线|M20-M12"PA"(WDM)150

  4-pin metall plug for installation in the device, providing connection to a T-Box (WDM) or cable socket (WDM). Cable length: 150mm. Not suitable for PROMAG and PROMAG.

  显示详细信息隐藏详细信息
12
- Nr 12 Order code 535720-9020

  Set of screws housing F12/T12/F23

  Consists of: 1x stop screw M5x10. 1x retaining screw M8x10. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

  显示详细信息隐藏详细信息
20
- Nr 20 Order code 517391-0011

  Cover F12/T12 Alu, coated, gasket

  Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

  显示详细信息隐藏详细信息
25
- Nr 25 Order code 518710-0020

  Cover T3/T12 Alu, coated, gasket

  Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231,FMR240/FMR244/ FMR245, FMR250, FMR530/FMR531/FMR532/ FMR533, FMR540, FMU40/FMU41/FMU42.

  显示详细信息隐藏详细信息
20
- Nr 20 Order code 52005936

  铝盖

  Material: Aluminium for operating + display module VU331 and housing F12/T12 Micropilot M/S, Prosonic M, Levelflex M

  显示详细信息隐藏详细信息
11
- Nr 11 Order code 52006026

  终端腔室护盖

  Hood for terminal compartment Micropilot M, Prosonic M, Levelflex M

  显示详细信息隐藏详细信息
20
- Nr 20 Order code 52018670

  带视窗盖

  Material: 316L for display VU331 Levelflex M, Micropilot M

  显示详细信息隐藏详细信息
- Nr 20 Order code 52018671

  带垫圈盖

  Material: 316L Levelflex M, Micropilot M

  显示详细信息隐藏详细信息
11
- Nr 11 Order code 52019062

  终端腔室护盖

  Hood for terminal compartment for separate display Micropilot M, Prosonic M, Levelflex M

  显示详细信息隐藏详细信息
- Nr 11 Order code 52005643

  遮罩

  cable compartment, electronics side Micropilot M/S, Prosonic M, Levelflex M

  显示详细信息隐藏详细信息
- Order code 71092209

  O型圈

  Usage: cover T12/F12/F23.

  显示详细信息隐藏详细信息
35
- Nr 35 Order code 52006197

  终端模块

  with cable connection for housing F12 Micropilot M, Levelflex M, Prosonic M

  显示详细信息隐藏详细信息
- Nr 35 Order code 52012156

  终端模块

  PROFIBUS PA, FOUNDATION Fieldbus Micropilot II/M, Prosonic M, Levelflex M

  显示详细信息隐藏详细信息
- Nr 35 Order code 52013302

  终端模块

  for housing T12, Levelflex M, Prosonic M, Micropilot M

  显示详细信息隐藏详细信息
- Nr 35 Order code 52013303

  终端模块

  2-wire, PROFIBUS PA/FOUNDATION Fieldbus Ex d limiter, for housing T12 Levelflex M, Micropilot M, Prosonic M

  显示详细信息隐藏详细信息
- Nr 35 Order code 52018949

  终端模块

  4-pole, 2-wire for Aluminium T12 housing OVP = overvoltage protection Levelflex M, Prosonic M, Micropilot M

  显示详细信息隐藏详细信息
- Nr 35 Order code 52018950

  终端模块

  2-pole, 2-wire PROFIBUS PA, FOUNDATION Fieldbus for Aluminium T12 housing OVP = overvoltage protection Levelflex M, Prosonic M, Micropilot M

  显示详细信息隐藏详细信息
30
- Nr 30 Order code 71026754

  电子插件

  version 5.0 Micropilot M FMR240/FMR244/FMR245/FMR250

  显示详细信息隐藏详细信息
- Nr 30 Order code 71026819

  电子插件

  PROFIBUS PA, version 5.0 Micropilot M FMR240/FMR244/FMR245/FMR250

  显示详细信息隐藏详细信息
- Nr 30 Order code 71026820

  电子插件

  FOUNDATION Fieldbus, version 5.0 Micropilot M FMR240/FMR244/FMR245/FMR250

  显示详细信息隐藏详细信息
40
- Nr 40 Order code 52026443

  显示仪VU331

  4-line alphanumeric display Micropilot M, Micropilot S, Prosonic M, Levelflex M

  显示详细信息隐藏详细信息
31
- Nr 31 Order code 52024953

  高频模块

  version: uP III.3 for electronics from software version 1.0 Micropilot M FMR250 for electronics from software version 5.0 Micropilot M FMR24x, advanced dynamics

  显示详细信息隐藏详细信息
55
- Nr 55 Order code 52025230

  喇叭

  Material: 316L with fixing screws

  显示详细信息隐藏详细信息
- Nr 55 Order code 52025231

  喇叭

  Material: 316L with fixing screws

  显示详细信息隐藏详细信息
- Nr 55 Order code 52025233

  抛物面反射器

  with fixing screws Micropilot M FMR250 Micropilot S FMR540

  显示详细信息隐藏详细信息
- Nr 55 Order code 71020169

  喇叭

  Material: 316L with fixing screws

  显示详细信息隐藏详细信息
- Nr 55 Order code 71090287

  抛物面反射器

  Fixing screws. DN200/8". Usage: FMR57, FMR540.

  显示详细信息隐藏详细信息
- Nr 55 Order code 71090289

  抛物面反射器

  Fixing screws. DN250/10". Usage: FMR540, FMR57.

  显示详细信息隐藏详细信息
50
- Nr 50 Order code FMR250X-

  天线 FMR250

  Process connection. Usage: FMR250.

  显示详细信息隐藏详细信息
65
- Nr 65 Order code 535720-9010

  Sealing kit FMR2xx

  Consists of: 2x gasket Pg13.5 FA. 2x O-ring 17.0x2.0 EPDM. 1x O-ring 49.21x3.53 EPDM. 2x O-ring 17.12x2.62 FKM. 1x O-ring 113.9x3.53 EPDM. 1x O-ring 72.0x3.0 EPDM. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250.

  显示详细信息隐藏详细信息
- Order code 52018204

  转接件

  for modification to remote display with housing F12 + 2-wire electronics for non-hazardous area only please order FHX40 separately Levelflex M, Micropilot M, Prosonic M

  显示详细信息隐藏详细信息
- Order code 52016334

  电缆

  doubled shielded connection cable for display FHX40

  显示详细信息隐藏详细信息
- Order code 71020502

  电缆

  doubled shielded connection cable for display FHX40

  显示详细信息隐藏详细信息
- Order code 71020503

  电缆

  doubled shielded connection cable for display FHX40

  显示详细信息隐藏详细信息
- Order code 71020504

  电缆

  doubled shielded connection cable for display FHX40

  显示详细信息隐藏详细信息
- Order code 52013874

  安装支架

  for remote display FHX40

  显示详细信息隐藏详细信息
- Order code 71133074

  遮阳罩

  Protection cover with lateral cable gland. Material: stainless steel. Usage: FMR250, FMR57 (200oC).

  显示详细信息隐藏详细信息
- Order code FHX40-

  远程显示仪 FHX40

  remote display + local operation Micropilot M, Prosonic M, Levelflex M, Gammapilot M in Aluminium field housing IP65 NEMA4X. 4-line LC-display. :: menu driven plain text operation :: Easy setup :: User language selectable :: envelope curve display on site

  显示详细信息隐藏详细信息
- Order code 52009925

  高频测试电缆

  coax cable dummy antenna FMR24x, FMR25x, FMR540

  显示详细信息隐藏详细信息
- Order code 52007646

  拔天线电缆工具

  Micropilot M/Micropilot S

  显示详细信息隐藏详细信息
- Order code 71007843

  ToF 适配器 FXA291

  Usage: connection Micropilot M, Micropilot S, Levelflex M, Prosonic M, Tank Side Monitor, Deltabar S, Cerabar S, Gammapilot M, Micropilot I, to Commubox FXA291.

  显示详细信息隐藏详细信息
- Order code 71000221

  适配电缆

  Connection service tool RS232(52013675)/ ToF adapter FXA291 (71007843) > Micropilot M, Prosonic M, Levelflex M, Cerabar S, Deltabar S

  显示详细信息隐藏详细信息
- Order code 52007441

  适配电缆

  Connection > adapter service tool RS232 (016154-0000). To use the ToF-Tool software Micropilot M, Micropilot S, Prosonic M, Levelflex M

  显示详细信息隐藏详细信息
- Order code 71105889

  雷达防尘罩 100mm 4"

  Horn protection for horn antenna 100mm (4in). Consists of: PTFE disc + mounting ring. Usage: FMR51/FMR57, FMR240, FMR250.

  显示详细信息隐藏详细信息
- Order code 71105890

  雷达防尘罩 80mm 3"

  Horn protection for horn antenna 80mm (3in). Consists of: PTFE disc + mounting ring. Usage: FMR51/FMR57, FMR240, FMR250.

  显示详细信息隐藏详细信息
- Order code 71067434

  更改铭牌

  Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.

  显示详细信息隐藏详细信息
- Order code 543199-0001

  Protective cover for housing T12/F12, SS

  Usage: Micropilot M, Micropilot S, Prosonic M, Levelflex M. Material: 316Ti.

  显示详细信息隐藏详细信息
- Order code

  Phase out spares

  显示详细信息隐藏详细信息
- Order code

  08/2019

  显示详细信息隐藏详细信息

显示更多
显示更少

替代产品

F

L

E

X
Micropilot FMR57

先进的专利技术-动态算法、独特的HistoROM数据存储单元- FMR57提高了过程安全性，同时降低了运行维护成本，符合IEC61508标准。
更多信息

价格核算中…

暂时无价格信息

登录后显示价格

from CHF 803.-

简易产品
轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

什么是FLEX产品选型

标准产品
测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

什么是FLEX产品选型

高端产品
功能丰富，适用范围广

仪表技术性能

选型便捷程度

什么是FLEX产品选型

定制产品
专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

什么是FLEX产品选型

FLEX产品选型	仪表技术性能	选型便捷程度
F L E X Fundamental选型完美胜任基本测量任务	仪表技术性能	选型便捷程度
F L E X Lean选型轻松应对关键工艺的测量挑战	仪表技术性能	选型便捷程度
F L E X Extended选型创新技术助力工艺流程优化	仪表技术性能	选型便捷程度
F L E X Xpert选型满足严苛工况的特殊测量要求	仪表技术性能	选型便捷程度特殊选型

获取FLEX产品选型的详细信息

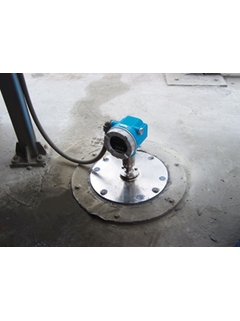

Micropilot M FMR250

特征和规格

Details

测量原理

特点/应用

特点

电源/通信

频率

天线

测量精度

环境温度

过程温度

过程压力（绝压）/最大过压限定值

主要接液部件

过程连接

盲区距离

最大测量距离

通信

证书和认证

选项

应用限制

文档/手册/软件

附件/备件

替代产品

Micropilot FMR57
