微波限位栅发射器

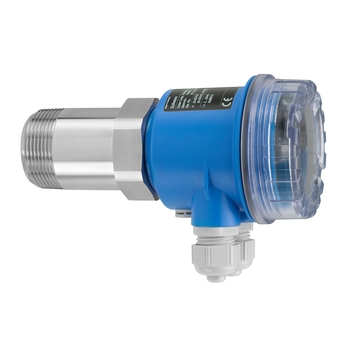

Soliwave FQR56

©Endress+Hauser

用于颗粒固体非接触式限位检测的微波限位栅发射器

Soliwave FQR56微波限位栅发射器适用于非接触式限位检测,可安装在容器、导管、传动轴或自由落体轴中,也可安装在非金属容器外部进行测量,控制并计算各种类型的颗粒固体。可与Soliwave FDR56接收器配套使用。

此产品暂未在中国市场销售

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 齐平式非接触式安装

    • 使用R 1-1/2-或1-1/2NPT-螺纹,安装方便

    • 电子外壳可360°旋转,可在安装后将设备调至最佳位置。

    • 机械部分结构坚固:
      - 无磨损;
      - 接液部分选用陶瓷传感器隔膜(可选);
      - 使用寿命长;
      - 免维护。

    • 接收器上可显示信号强度。

    • 直接连接电源(发射器与接收器可分开或配套使用)

    • 符合ATEX1/2GD与IECEx标准

  • 应用领域

    Soliwave微波限位开关适用于非接触式限位检测,可安装容器、导管、传动轴或自由落体轴中,也可安装在非金属容器外部进行测量,控制并计数各种类型的颗粒固体或袋状或盒状包装体等。 典型测量的颗粒固体包括:木屑、木粉与面粉,石膏、水泥与石灰,纸张及硬纸片,碎石与沙粒,常见的干粉。

特征和规格

返回

Details

  • 测量原理

    微波安全栅

  • 特点/应用

    变送器
    非接触式限位检测和流量监测
    检测、计数和物位测量
    物料传输点监测
    沉积物和污染检测和分析

    安装:
    非接触式安装(传输窗口)或前部齐平安装(接触式)

  • 特点

    测量范围:最大100 m

  • 电源/通信

    85...253VAC
    20...30 VDC/ 20...60 VAC

  • 环境温度

    -40...+70 °C
    (–40...+158 °F)

  • 过程温度

    非接触式安装:任意
    在安装范围内:
    -40 °C...+70 °C (-40 °F...+158 °F)
    带HT接头:
    最高+450 °C (+842 °F)

  • 过程压力(绝压)/最大过压限定值

    非接触式安装:任意
    在安装范围内:
    0.5 bar ... 6.8 bar (7.2 psi ... 99 psi),绝压
    带HD接头:
    最大+21 bar (+305 psi),绝压

  • 最小介质密度

    固体重量:> 10 g/l

  • 主要接液部件

    非接触式安装:
    非接液部件
    在安装范围内:
    316Ti或铝;
    PTFE或陶瓷

  • 过程连接

    1-1/2" R、1-1/2" G、1-1/2" NPT

  • 卫生型过程连接

    非接触式安装

  • 证书和认证

    ATEX、CSA C/US、IEC Ex

  • 设计认证

    EN10204-3.1

  • 选项

    观视玻璃窗
    高温接头
    高温接头
    安装架
    FAR50、FAR51、FAR52、FAR53、FAR54、FAR55

  • 组件

    接收器:FDR56

  • 应用限制

    固体重量:< 10 g/l

文档/手册/软件
