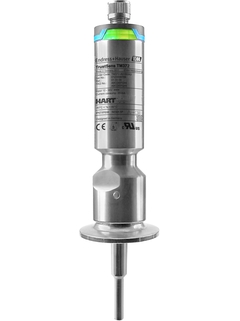

Compact sanitary RTD - iTHERM TrustSens TM371 with self-calibrating Pt100 sensor and iTHERM QuickNeck quick-release neck for fast insert removal

- F
- L
- E
- X

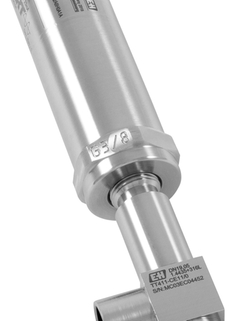

Sanitary RTDs, such as the compact TrustSens TM371 temperature measurement device, are available with special TT411 elbow thermowells in hygienic design for clean processes and accurate measurements

- F
- L
- E
- X
Our sanitary resistance thermometer is recognized by numerous industry awards for its breakthrough technology, including the prestigious HERMES AWARD

- F
- L
- E
- X
iTHERM TrustSens - innovative thermometer designed for food & beverage and life sciences industries

- F
- L
- E
- X
Temperature measurement is a critcal part of sterile process applications. iTHERM TrustSens supports automation of product safety and compliance.

- F
- L
- E
- X
iTHERM TrustSens - The award-winning thermometer for all hygienic and aseptic applications
产品规格参数
-
响应时间
t50 = 2.5 s
t90 = 5.4 s -
最大过程压力(静压)
at 20 °C: 40 bar (580 psi)
-
工作温度范围
Pt 100:
-40 °C to 160 °C
(-40 °F to 320 °F) -
所需最大插入深度
up to 900.00 mm (35.4'')
应用领域
Our award-winning iTHERM TrustSens TM371 sanitary RTD features the world's first self-calibrating Pt100 sensor unit! The hygienic temperature transmitter with Heartbeat Technology effectively eliminates the risk of undetected non-conformities, reduces production downtime while increasing product safety and process efficiency in food, beverage and life sciences applications. The instrument complies with FDA and GMP regulations and integrates with the Netilion cloud-based Industry 4.0 ecosystem.
Designed for critical hygienic and aseptic applications in life sciences, food & beverage
RTD self-calibration in processes such as SIP, UHT, edible oil refining, industrial deep fat frying and more
Measuring range: -40 to 160 °C (-40 to 320 °F)
Protection class: up to IP69K
Signal output: 4 to 20 mA, HART®
Optional: Secure Bluetooth® and/or WirelessHART® (requires FieldPort SWA50)
EHEDG, ASME BPE, FDA, 3-A, 1935/2004, 2023/2006, 10/2011, CE, CRN, CSA General Purpose
优势
Reduce risks and costs by implementing fully automated, traceable inline RTD sensor self-calibration; Eliminate non-conformities or undetected failures
True sanitary RTD sensor self-calibration making use of the Curie effect
Built-in, long-term stable fix point reference with complete traceability of calibration chain to ITS-90
Full instrument diagnostics, monitoring and verification with Heartbeat Technology
Automated process documentation, built-in memory for 350 calibration events
24/7 access to printable, audit proof calibration certificates, on-site or through cloud-based system integration
Built-in 4 to 20 mA loop check function saves time and increases process safety
Highest temperature measurement precision
Individual transmitter-sensor matching from factory for improved RTD accuracy
演示视频
-
iTHERM TrustSens TM371 sanitary RTD: The world's first self-calibrating hygienic temperature transmitter
-
How to perform a fully automated, inline 4 to 20 mA loop check in five easy steps
-
Lower risk and drive automation in regulated processes using iTHERM TrustSens TM371

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
热电阻
-
特点/应用
self-calibrating
metric style
compact temperature probe
hygienic design
life sciences, food & beverage -
热保护套管
without
incl. thermowell
incl. elbow thermowell -
铠装芯子/探头
without exchangeable insert
-
热保护套管外径
6.0 mm (0.24'')
9.0 mm (0.35'')
12.7 mm (0.5") -
所需最大插入深度
up to 900.00 mm (35.4'')
-
热保护套管材质
1.4435 Delta Ferrite < 1%
316L -
过程连接
compression fitting
weld in adapter
clamp connections acc. to ISO 2852
screwed pipe joint acc. to DIN 11851
aseptic screwed pipe joint acc. to DIN 11864-1
metallic sealing system
thread acc. to ISO 228 for Liquiphant adaptor
APV Inline
Varivent
Ingold
SMS 1147
Neumo Biocontrol
TT411 elbow pieces DIN 11865 -
热保护套管末端类型
straight
reduced -
表面光洁度Ra
0.76 μm (29.92 μin)
0.38 μm (14.96 μin)
0.38 μm (14.96 μin) electropolished -
工作温度范围
Pt 100:
-40 °C to 160 °C
(-40 °F to 320 °F) -
最大过程压力(静压)
at 20 °C: 40 bar (580 psi)
-
响应时间
t50 = 2.5 s
t90 = 5.4 s -
模块化温度变送器
no (4 to 20 mA signal, HART)
