此产品暂未在中国市场销售
产品规格参数
-
Laser wavelength
Starter: 785 nm
Base Model: 532 nm, 785 nm, 1000 nm
Hybrid: 785 nm -
Spectral coverage
Starter:
300-3300 cm-1 (785 nm)
Base Model:
150-4350 cm-1 (532 nm)
150-3425 cm-1 (785 nm)
200-2400 cm-1 (1000 nm)
Hybrid: 175-1890 cm-1 (785 nm)
应用领域
Rxn2拉曼光谱分析仪采用成熟的拉曼光谱分析技术。Rxn2拉曼光谱分析仪专供分析实验室使用,具备模型转移能力,能够可靠完成常规样气组份识别,支持项目研发和早期工艺设计,允许执行在线分析扩展设置。Rxn2拉曼光谱分析仪可选桌面台式安装型,或移动带轮推车安装型,方便在工艺研发实验室中灵活使用。
化工行业:挤出聚合过程监测、聚合物共混、催化研究
制药行业:化学反应、结晶产物、共晶、混合、干燥、颗粒物
生物制药:生物过程监测和控制、PAT/QbD应用、细胞培养、发酵,下游工段操作、cGLP/cGMP合规
食品与饮料行业:区域化非均质性、发酵
优势
可靠实时在线测量
自带控制软件,直观易懂,通过触摸屏或远程接口操作

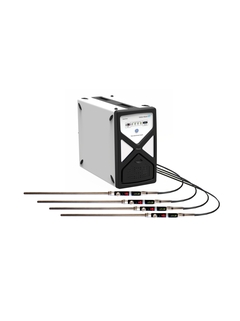

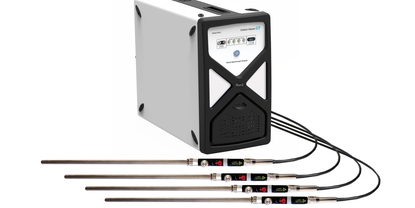

单台分析仪最多可以连接四个探头,使用方便
按序操作,快速分析各个通道,通道访问顺序可编程设置
内置多参数预测器,将采集的拉曼光谱转换为工艺知识
输出信号可直接接入危险区或防爆场合中
符合cGLP/cGMP标准

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
Raman spectroscopy
-
Laser wavelength
Starter: 785 nm
Base Model: 532 nm, 785 nm, 1000 nm
Hybrid: 785 nm -
Spectral coverage
Starter:
300-3300 cm-1 (785 nm)
Base Model:
150-4350 cm-1 (532 nm)
150-3425 cm-1 (785 nm)
200-2400 cm-1 (1000 nm)
Hybrid: 175-1890 cm-1 (785 nm) -
Spectral resolution
Starter:
10 cm-1 (average)
Base model (average):
5 cm-1 (532 nm)
4 cm-1 (785 nm)
5 cm-1 (1000 nm)
Hybrid:
4 cm-1 (785 nm) average -
Channels
Starter:
Single channel
Base Model:
Up to four channels
Hybrid:
Up to two channels -
Temperature
Operating:
15 to 30 °C
Storage:
-15 to 50 °C -
Relative humidity
20-80% RH, non-condensing
-
Input voltage
100-240 V, 50-60 Hz, ±10%
-
Power consumption (W)
400 (max)
250 (typical start-up)
120 (typical running) -
Warm up time (minutes)
120
-
Unit dimensions (width x height x depth in mm)
Benchtop model: 279 x 483 x 592
Cart model: 685 x 1022 (to tabletop) x 753 -
Weight (kg)
Base model: 32
Cart model: 93 -
Sampling probe compatibility
Starter:
Raman Rxn-10 (with accessory optics)
Base model:
Raman Rxn-10 (with accessory optics), Rxn-40, Rxn-41, Rxn-45, Rxn 46
Hybrid:
Channel 1 - Raman Rxn-20 (with accessory optics)
Channel 2 - Raman Rxn-10 (with accessory optics), Rxn-40, Rxn-41, Rxn-45, Rxn 46 -
Automation interface
OPC
Modbus
HTTPS
(contact us for other options) -
Installation options

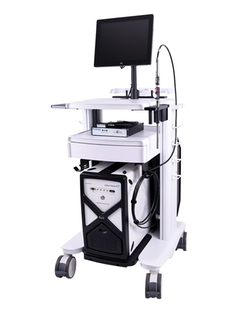

Benchtop (standard) or mobile wheeled cart
-
Hazardous area certifications
ATEX, CSA, IECEx
-
测量原理
Raman spectroscopy
-
Laser wavelength
Starter: 785 nm
Base Model: 532 nm, 785 nm, 1000 nm
Hybrid: 785 nm -
Spectral coverage
Starter:
300-3300 cm-1 (785 nm)
Base Model:
150-4350 cm-1 (532 nm)
150-3425 cm-1 (785 nm)
200-2400 cm-1 (1000 nm)
Hybrid: 175-1890 cm-1 (785 nm) -
Spectral resolution
Starter:
10 cm-1 (average)
Base model (average):
5 cm-1 (532 nm)
4 cm-1 (785 nm)
5 cm-1 (1000 nm)
Hybrid:
4 cm-1 (785 nm) average -
Channels
Starter:
Single channel
Base Model:
Up to four channels
Hybrid:
Up to two channels -
Temperature
Operating:
15 to 30 °C
Storage:
-15 to 50 °C -
Relative humidity
20-80% RH, non-condensing
-
Input voltage
100-240 V, 50-60 Hz, ±10%
-
Power consumption (W)
400 (max)
250 (typical start-up)
120 (typical running) -
Warm up time (minutes)
120
-
Unit dimensions (width x height x depth in mm)
Benchtop model: 279 x 483 x 592
Cart model: 685 x 1022 (to tabletop) x 753 -
Weight (kg)
Base model: 32
Cart model: 93 -
Sampling probe compatibility
Starter:
Raman Rxn-10 (with accessory optics)
Base model:
Raman Rxn-10 (with accessory optics)
Hybrid:
Channel 1 - Raman Rxn-20 (with accessory optics)
Channel 2 - Raman Rxn-10 (with accessory optics) -
Automation interface
OPC
Modbus
HTTPS
(contact us for other options) -
Installation options
Benchtop (standard) or mobile wheeled cart
-
Hazardous area certifications
ATEX, CSA, IECEx
-
测量原理
Raman spectroscopy
-
Laser wavelength
532 nm
-
Spectral coverage
150-4350 cm-1 (532 nm)
-
Spectral resolution
5 cm-1 (532 nm)
-
Channels
Up to four channels
-
Temperature
Operating:
15 to 30 °C
Storage:
-15 to 50 °C -
Relative humidity
20-80% RH, non-condensing
-
Input voltage
100-240 V, 50-60 Hz, ±10%
-
Power consumption (W)
400 (max)
250 (typical start-up)
120 (typical running) -
Warm up time (minutes)
120
-
Unit dimensions (width x height x depth in mm)
Benchtop model: 279 x 483 x 592
Cart model: 685 x 1022 (to tabletop) x 753 -
Weight (kg)
Base model: 32
Cart model: 93 -
Sampling probe compatibility
Raman Rxn-30
-
Automation interface
OPC
Modbus
HTTPS
(contact us for other options) -
Installation options
Benchtop (standard) or mobile wheeled cart
-
Hazardous area certifications
ATEX, CSA, IECEx
