浸入式支架 Flexdip CYA112

©Endress+Hauser
©Endress+Hauser

模块化支架，便于传感器安装在饮用水、污水和公共用水的测量装置中

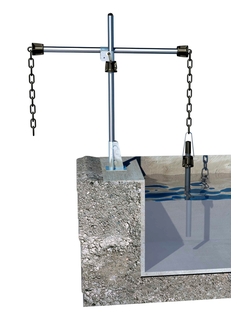

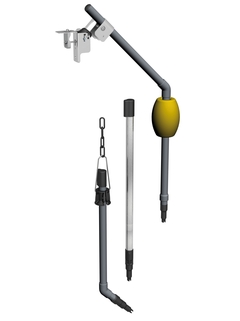

Flexdip CYA112是模块化安装支架，用于敞口池、明渠和水池中安装传感器。它允许几乎所有类型传感器的安装，包括链式、固定式和自由摆动式。对于Memosens 和固定的缆式传感器可以实现更快速和安全的安装。支架提供了出色的灵活性，并且能低成本最优配置整个测量。

快速选择

从我们建议的选项中选择
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CYA112
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • 可选附加功能
请使用Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

附加组件

  • 优势

    • 模块化结构设计，可以针对每个测量点进行优化配置

    • 采用非接触插入式的Memosens传感器，可以快速安装和更换

    • 安装带整体电缆的传感器时不会发生缠绕

    • 安装和维护简便

    • 鲁棒性设计：适用过程压力可达6 bar (87 psi)

  • 应用领域

    Flexdip CYH112 支架适用于敞口池、水槽和储罐测量：

    • 污水处理厂

    • 自来水厂

    • 公用工程

    采用Flexdip CYA112支架，组成完美的测量系统，并可对传感器进行简单隔离.

    Flexdip组成的测量系统可测量以下参数：

    • pH/ORP

    • 电导率

    • 溶解氧

    • 浊度

    • 污泥泥位

    • 消毒

    • UV光度法

    • 营养盐

特征和规格

返回

Details

  • 测量原理

    玻璃电极

  • 应用

    Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels

  • 安装

    CYA112 is a modular assembly system for sensors in open basins, channels and tanks

  • 特点

    Simple and easy installation
    Universal and flexible

  • 设计

    Versions in stainless steel or PVC

  • 材质

    Immersion pipe, connection angle, welded threads: stainless steel 1.4404
    Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF
    O-rings: EPDM

  • 外形尺寸

    Tauchrohr Durchmesser: 40 mm (1.57 Zoll)
    Länge: 600, 1200, 1800 und 2400 mm
    (23.6, 47.2, 70.9 und 94.5 Zoll)

  • 过程温度

    0 ... 60 °C (32 ... 140 °F)

  • 测量原理

    玻璃电极

  • 应用

    • 水处理
    • 污水处理
    • 工厂设计
    • 明渠
    • 水池
    • 敞口罐和过程罐
    • 波动液面

  • 安装

    CYA112模块化安装支架系统，用于在水池、明渠和罐体中安装传感器

  • 特点

    安装简单便捷
    使用广泛、灵活

  • 设计

    PVC或不锈钢材质型

  • 材质

    不锈钢和塑料

  • 外形尺寸

    Immersion pipe diameter: 40 mm (1.57 inch)
    Length: 600, 1200, 1800 and 2400 mm
    (23.6, 47.2, 70.9 and 94.5 inch)

  • 过程温度

    -20...+60 °C
    -4...140 °F

  • 测量原理

    单波束散射光

  • 应用

    Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels

  • 安装

    CYA112 is a modular assembly system for sensors in open basins, channels and tanks

  • 特点

    Simple and easy installation
    Universal and flexible

  • 设计

    Versions in stainless steel or PVC

  • 材质

    Immersion pipe, connection angle, welded threads: stainless steel 1.4404
    Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF
    O-rings: EPDM

  • 外形尺寸

    Immersion pipe diameter: 40 mm (1.57 inch)
    Length: 600, 1200, 1800 and 2400 mm
    (23.6, 47.2, 70.9 and 94.5 inch)

  • 过程温度

    0 to 60 °C (32 to 140 °F)

  • 测量原理

    ORP电极

  • 应用

    Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels

  • 安装

    CYA112 is a modular assembly system for sensors in open basins, channels and tanks

  • 特点

    Simple and easy installation
    Universal and flexible

  • 设计

    Versions in stainless steel or PVC

  • 材质

    Immersion pipe, connection angle, welded threads: stainless steel 1.4404
    Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF
    O-rings: EPDM

  • 外形尺寸

    Immersion pipe diameter: 40 mm (1.57 inch)
    Length: 600, 1200, 1800 and 2400 mm
    (23.6, 47.2, 70.9 and 94.5 inch)

  • 过程温度

    0 to 60 °C (32 to 140 °F)

  • 测量原理

    紫外光（UV）光度计

  • 特点

    Simple and easy installation
    Universal and flexible

  • 设计

    Versions in stainless steel or PVC

  • 过程温度

    0 to 60 °C (32 to 140 °F)

  • 应用

    Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels

  • 测量原理

    溶解氧传感器

  • 应用

    Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels

  • 安装

    CYA112 is a modular assembly system for sensors in open basins, channels and tanks

  • 特点

    Simple and easy installation
    Universal and flexible

  • 设计

    Versions in stainless steel or PVC

  • 材质

    Immersion pipe, connection angle, welded threads: stainless steel 1.4404
    Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF
    O-rings: EPDM

  • 外形尺寸

    Immersion pipe diameter: 40 mm (1.57 inch)
    Length: 600, 1200, 1800 and 2400 mm
    (23.6, 47.2, 70.9 and 94.5 inch)

  • 过程温度

    -20...+60 °C
    -4...140 °F

  • 测量原理

    总氯

  • 应用

    Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels

  • 特点

    Simple and easy installation
    Universal and flexible

  • 设计

    Versions in stainless steel or PVC

  • 材质

    Immersion pipe, connection angle, welded threads: stainless steel 1.4404
    Sensor adaption, quick fastener, multifunctional clamp ring: POM - GF
    O-rings: EPDM

  • 外形尺寸

    Immersion pipe diameter: 40 mm (1.57 inch)
    Length: 600, 1200, 1800 and 2400 mm
    (23.6, 47.2, 70.9 and 94.5 inch)

  • 过程温度

    0 to 60 °C (32 to 140 °F)
