Micropilot FMR56

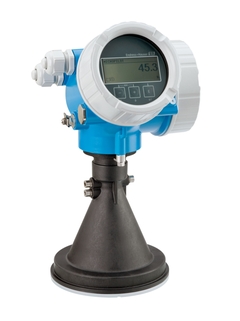

Micropilot FMR50/56 带有天线100 mm (4"),铝制外壳 ©Endress+Hauser

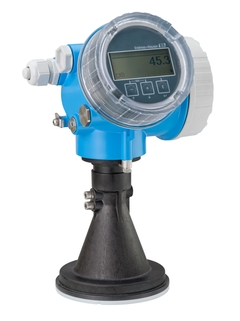

Micropilot FMR50/56 天线80mm (3") 塑料外壳 ©Endress+Hauser

适用于固料物位测量的经济、高效的基本型仪表

Micropilot FMR56专为固料贮仓或货柜等轻型工况条件下的物位测量而设计。Micropilot适合粉状、粒状等固体散料的连续、非接触式的物位测量。测量值不受粉尘、进料噪音、温度变化、气相介质的影响。

  • 优势

    • 测量稳定可靠,不受介质和过程条件变化的影响

    • HistoROM集成数据存储单元,帮助快速调试、维修和诊断

    • 测量可靠性高,基于多回波追踪计算,即使仓内存在障碍物依然能够准确测量

    • 硬件和软件开发过程符合IEC 61508标准,单台仪表满足SIL2, 同构冗余条件下达SIL3

    • 心跳技术,在整个生命周期内实现高效、安全的工厂运营

    • 无缝集成到控制或资产管理系统,直观的菜单引导式操作概念(现场或通过控制系统)

    • 通过世界权威的SIL和WHG实验认证,节约您的时间和经济成本

  • 应用领域

    PP镀层的喇叭天线,可通过安装支架或密封转盘,轻松对准固体表面。

    • 过程连接:安装支架或松套法兰

    • 温度范围:-40至+80°C (-40至+176°F)

    • 压力范围:-1至3bar (-14.5至43.5psi)

    • 最大测量范围:30m(98ft)

    • K波段: 26GHz

    • 国际防爆认证, SIL, 5点线性协议

特征和规格

返回

Details

  • 测量原理

    固体物位雷达

  • 特点/应用

    适用简单应用:
    在固体料仓或储罐上进行可靠的非接触料位测量

  • 特点

    多路回波跟踪确保安全性和可靠性
    HistoROM智能数据存储单元

  • 电源/通信

    两线制(HART、PROFIBUS PA、FOUNDATION Fieldbus)
    四限制(HART)

  • 频率

    K波段(约26 GHz)

  • 天线

    喇叭天线,DN80/3",PP填充
    喇叭天线,DN100/4",PP填充

  • 测量精度

    +/- 3 mm (0.12 in)

  • 环境温度

    -40...+80 °C
    (-40...+176 °F)

  • 过程温度

    -40...+80 °C
    (-40...+176 °F)

  • 过程压力(绝压)/最大过压限定值

    真空...3 bar
    (真空...43.5 psi)

  • 主要接液部件

    PP、UP

  • 过程连接

    法兰:
    UNI DN80...DN150
    (3"...6")
    安装架

  • 最大测量距离

    30 m (98 ft)

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、KC

  • 安全认证

    SIL

  • 选项

    显示单元
    用户自定义参数

  • 应用限制

    Dk < 1.6
    以下因素会减小最大量程:
    反射特性不佳的介质
    安息角
    十分松散的固体散料表面,例如气动进料过程中的轻质散料
    粘附,特别是潮湿介质粘附

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 19
    • Nr 19 Order code 71115175

      外壳过滤塞(黄铜/镍)

      Consists of: 2x filter plug brass nickel, pressure compensation filter. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 17
    • Nr 17 Order code 71115176

      外壳设置固定夹

      Usage: housing GT18/GT19/GT20, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 20
    • Nr 20 Order code 71110292

      铝盖

      Material: plastics PBT-FR sight glas PC. O-ring EPDM, PTFE coated. Usage: FHX50, FMP50/FMP51/FMP52/ FMP53/FMP54/FMP55/FMP56/FMP57, FMR50/ FMR51/FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110293

      铝盖

      Material: plastics PBT, metallized. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110297

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71110299

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 25
    • Nr 25 Order code 71110295

      铝盖

      Material: plastics PBT, metallized. Usage: terminal compartment, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71110301

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: terminal compartment, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71110302

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: terminal compartment Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185517

      铝盖

      Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185518

      Material: plastic PBT, metallizied. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

  • 65
    • Nr 65 Order code 71110303

      外壳密封套件

      Consists of: O-ring 88.5x3.53 EPDM/PTFE, cover electronics compartment, housing GT19. O-Ring 88.5x3.53 NBR, cover electronics compartment, housing GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, cover terminal compartment, housing GT19. O-Ring 91.67x3.53 NBR, cover terminal compartment, housing GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, housing/sensor. FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71128617

      过压保护器

      4-20mA HART. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71128619

      过压保护器

      4-20mA HART, PROFIBUS PA, FOUNDATION Fieldbus, Imp./Freq./Switch output. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 34
    • Nr 34 Order code 71108594

      I/O 模块

      Non-Ex, Ex. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71108599

      I/O 模块

      Non-Ex, Ex. 1x current output HART, 1x PFS. PFS=switch output. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57. FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71164940

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71187812

      I/O 模块

      Version 2. Not for Ex d/XP. LP=low powered. 1x current output HART. Usage: FMP50/FMP51/FMP52/FMP53/FMP54/ FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/ FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207473

      I/O 模块

      Non-Ex, Ex. 10.4-48VDC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207474

      I/O 模块

      Non-Ex, Ex. Current output, 4-20mA HART + 4-20mA analog. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71207475

      I/O 模块

      Non-Ex, Ex. 90-253VAC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

  • 37
    • Nr 37 Order code 71110279

      端子套件 4-接线, I/O 模块

      Consists of: 2x terminal 2-pole, green. 2x terminal 2-pole, red. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 37 Order code 71110280

      端子套件 2-接线, I/O 模块

      Consists of: 4x terminal 2-pole, green. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 30
  • 40
    • Nr 40 Order code XPD0024-

      显示模块

      For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Consists of: Display SD02, helix cable, ribbon cable, connector cover.

    • Nr 40 Order code XPD0025-

      显示模块

      For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200. Consists of: Display SD03 illuminated, ribbon cable, connector cover.

    • Order code 71162242

      盖子|GT18/GT19/GT20,316L

      Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/ FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71162777

      角度调整装置 3"/DN80/80, horn 80mm

      Max 4bar abs/58psia, suitable for: NPS 3" Cl.150 / DN80 PN16 / 10K 80. Usage: FMR20, FMR50/FMR56, 80mm/3" horn, 3" 150lbs/DN80 PN16/10K 80.

    • Order code 71162778

      角度调整装置 4"/DN100/100, horn 80mm

      Max 4bar abs/58psia, suitable for: NPS 4" Cl.150 / DN100 PN16 / 10K 100. Usage: FMR20, FMR50/56, 80mm/3" horn, 4" 150lbs/DN100 PN16/10K 100.

    • Order code 71162780

      角度调整装置 6"/DN150/150, horn 80mm

      Max 4bar abs/58psia, suitable for: NPS 6" Cl.150 / DN150 PN16 / 10K 150. Usage: FMR50/56, 80mm/3" horn. 6" 150lbs/DN150 PN16/10K 150. Usage: FMR20.

    • Order code 71162781

      角度调整装置 4"/DN100/100, horn 100mm

      UNI slip on flange 4"/DN100/100, PP max 4bar abs/58psia, suitable for NPS 4" Cl.150 / DN100 PN16 / 10K 100. Usage: FMR50/FMR56, 100mm/4" horn.

    • Order code 71162782

      角度调整装置 6"/DN150/150, horn 100mm

      UNI slip on flange 6"/DN150/150, PP max 4bar abs/58psia, suitable for NPS 6" Cl.150 / DN150 PN16 / 10K 150. Usage: FMR50/FMR56, 100mm/4" horn.

    • Order code 71377355

      蓝牙模块

      Module for wireless data communication. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Order code 71074263

      可调密封圈

      DN80 PN10-40. Material: EPDM. Usage: FMR50/FMR56, FMR244.

    • Order code 71074264

      可调密封圈

      DN100 PN10-16. Material: EPDM. Usage: FMR50/FMR56, FMR244.

    • Order code 71074265

      可调密封圈

      DN150 PN10-16. Material: EPDM. Usage: FMR50/FMR56, FMR244.

    • Order code 71249070

      可调密封圈

      ASME 3" 150lbs / JIS 80A 10K. Material: EPDM. Usage: FMR50/FMR56, FMR244.

    • Order code 71249072

      可调密封圈

      ASME 4" 150lbs. Material: EPDM. Usage: FMR50/FMR56, FMR244. Not for JIS.

    • Order code 71249073

      可调密封圈

      ASME 6" 150lbs / JIS 150A 10K. Material: EPDM. Usage: FMR50/FMR56, FMR244.

    • Order code 71162776

      安装支架

      Material: 304. Usage: alignment FMR50/FMR56.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.
