此产品暂未在中国市场销售
产品规格参数
-
过程温度
Non-contact installation: any
Within installation:
–20 °C ... +60 °C (–4 °F ... +140 °F)
With HT-Adapter:
up to +450 °C (+842 °F) -
过程压力(绝压)/最大过压限定值
Non-contact installation: any
Within installation:
0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.
With HP-Adapter:
up to +21 bar (+305 psi) abs. -
最小介质密度
Solid weight: > 10 g/l
应用领域

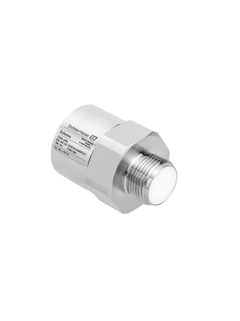

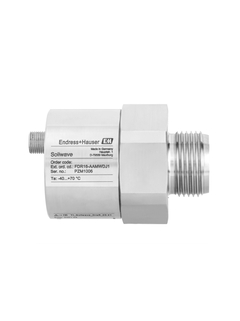

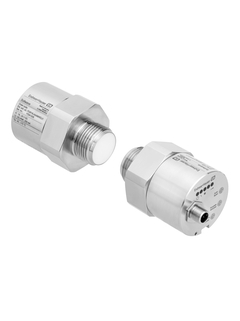

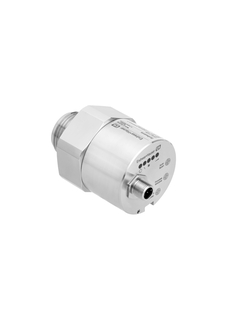

Soliwave FDR16是超紧凑型料位栅,适用于非接触式限位检测,货物计件,以及对象检测。Soliwave FDR16与FQR16成对配套使用。微波料位栅采用非接触式检测方法,可以安装在操作困难位置或狭小空间内使用。可以在非金属罐体的外部测量。
微波料位栅Soliwave FDR16和FQR16用于粉末状固料、浆状固体,以及液体的低限和高限检测,例如罐体防溢和泵空转保护。仪表还可用于货物计件和对象检测。仪表满足不同行业的使用要求,应用广泛,比如基础原材料、能源和食品行业。
优势
非接触式测量原理 — 过程特性不会干扰检测过程
高安全性 — 配备永久自诊断和全面自检功能
首款微波料位栅,IP69防护等级
符合欧盟1935/2004标准的要求
调试简单,性价比高
安全检测 —— 非接触式测量方法,无磨损、免维护、连续工作
坚固耐用 —— 不锈钢外壳

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
微波安全栅
-
特点/应用
Microwave barrier
Non-contact point level detection
(min/max, e.g. full and empty detection for overflow
and dry run protection) for all types of bulk solids
(from powdery to lumpy) and liquids, also in potentially
explosive atmospheres (dust Ex).
Detection, counting, and positioning of objects
Object detection on conveyor belts -
特点
Detection range: max. 20 m
-
电源/通信
18 V ... 30 V DC,
Plug M12 -
环境温度
-20 °C ... +60 °C (-4 ... +140 °F)
-
过程温度
Non-contact installation: any
Within installation:
–20 °C ... +60 °C (–4 °F ... +140 °F)
With HT-Adapter:
up to +450 °C (+842 °F) -
过程压力(绝压)/最大过压限定值
Non-contact installation: any
Within installation:
0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.
With HP-Adapter:
up to +21 bar (+305 psi) abs. -
最小介质密度
Solid weight: > 10 g/l
-
主要接液部件
Non-contact installation:
no wetted parts
Contact installation:
316L, PTFE -
过程连接
ISO228-1: G1", G1-1/2"
ASME: NPT1-1/2" -
卫生型过程连接
Non-contact installation
-
通信
3-wire-DC-PNP,
2 DC-PNP-outputs -
证书和认证
ATEX, IEC Ex
-
设计认证
EN10204-3.1
-
卫生型认证
EG1935/2004
-
选项
Mounting bracket
Counternut
Welding sleeve
Connection cable
Connecting cable
High-pressure adapter
High-temperature adapter
Extension for HT-adapter
Mounting flange
Sight glass fitting
FAR50, FAR51, FAR52, FAR54 -
组件
FQR16
-
应用限制
Solid weight: < 10 g/l
