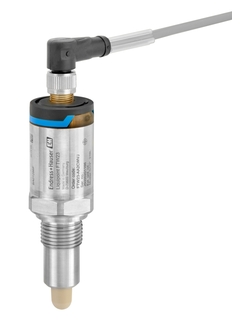

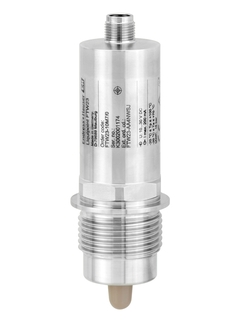

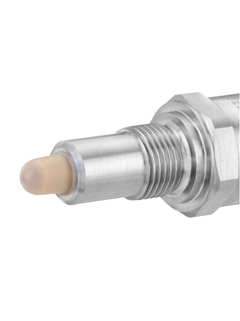

Liquipoint FTW23

Liquipoint FTW23 ©Endress+Hauser
Liquipoint FTW23 ©Endress+Hauser

Liquipoint FTW23 演示—不同介质

FTW23 是强大标准应用团队的成员之一 - Liquiphant, Liquipoint, Cerabar, Ceraphant

Liquipoint FTW23 ©Endress+Hauser

经济高效的限位开关,用于水基液检测

Liquipoint FTW23 符合所有国际卫生型要求,针对食品行业设计和制造,同时适用于所有行业中的工业应用。专门设计用于无粘附液体介质的应用场合。IO-Link 功能简化了参数设置。高效:
- 使用经济
- 通过测试磁体进行功能检查
简便:
- 无需标定或调节
- 无需使用特殊工具,即插即用
- IO-Link 连接功能

  • 优势

    • 紧凑型结构设计,安装简便,即使在狭小空间中或难于操作的场合中也能简便安装

    • 利用工程工具轻松配置设备,IO-Link 降低了成本和复杂性

    • 耐CIP和SIP清洗 - 最高防护等级为IP69

    • 无需针对每种介质单独进行调节

    • 通过LED显示进行现场功能检测

  • 应用领域

    适用于在储罐、混合容器和管道中使用。针对水基介质;通常要求测量介质的介电常数 >20,但通过 IO-LINK 进行校准,可以检测介电常数 >1.5 的介质。

    • 过程连接:螺纹

    • 温度:-20...+100°C (-4...+212°F);CIP/SIP:max. 135°C (275°F),1 h内

    • 压力:-1...16 bar abs (-14.5...232 psi)

    • 卫生型认证

特征和规格

返回

Details

  • 测量原理

    导电性

  • 特点/应用

    紧凑型液体限位开关,适用水基液体

  • 特点

    适用CIP清洗和SIP清洗

  • 电源/通信

    10…30 V DC

  • 环境温度

    -40...70°C
    -40...158°F

  • 过程温度

    标准:
    -20...100°C
    清洗:
    -20...135°C,在1小时内
    (-4...275°F,在1小时内)

  • 过程压力(绝压)/最大过压限定值

    真空...16 bar
    (真空...232 psi)

  • 主要接液部件

    传感器:316L
    传感器密封圈:PEEK

  • 过程连接

    螺纹G1、G1/2、G3/4、M24

  • 通信

    DC PNP
    IO- Link

  • 证书和认证

    CSA C/US

  • 设计认证

    EN 10204-3.1

  • 卫生型认证

    3A、EHEDG

  • 选项

    焊座,
    卫生型过程连接的转接头

  • 应用限制

    导电性泡沫被视为液体

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 57
    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 71258357

      焊接适配器 G3/4, d=29, 316L

      Flush mount process connection. For pipe-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33.

    • Order code 52028295

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ" w/o flange Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71258355

      焊接适配器 G3/4 d=50, 316L

      Flush mount process connection. For vessel-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33, FMI51, FTI51, 11371. Usage: TMR35.

    • Order code 52018765

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ", FMI51, FTI51 "GQJ" Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71258358

      焊座 G1, d=53, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 71093129

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52001051

      焊座,G1,d=60

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52011896

      焊座,G1,d=60 ,3.1材质认证

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71041381

      焊座M24 D65

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71041383

      焊座M24 D65,3.1材质认证

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71086117

      O型圈

      Material: silicone VMQ 80. USP Class VI. Usage: Weld-in adapter G3/4, 316L, (71258355) vesselmounting, (71258357) pipe-mounting, flush mount, FTL31/FTL33, FTW23/FTW33, QMW43, Weld-in adapter G3/4, 316L, 3.1, (52018765) vesselmounting, (52028295) pipe-mounting, flush mount, FMI51, FTI51, FTL31/FTL33, FTW23/FTW33, QMW43.

    • Order code 52014472

      O型圈

      for weld-in adapter G1 (52001051) Liquiphant M "GW2" Liquiphant T "7", Liquicap M "GWJ", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for weld-in andapter G1, 316L 3.1 (52011896) Liquiphant M "GW2", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for sliding sleeve Soliphant T

    • Order code 71086102

      O型圈

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O型圈

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 52014424

      密封垫圈

      for weld-in adapter G1, adjustable, 316L (52001221) Liquiphant M "GW2" for weld-in adapter G1, adjustable, 316L (52011898) Liquiphant M "GW2" for weld-in adapter G1, adjustable Liquiphant FTL330H/FTL330L, Liquiphant T FTL20H "UPJ

    • Order code 52023997

      过程转换接头M24- Variv. N DN50 PN40

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024004

      过程转换接头M24- Variv. N DN50 PN40,3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023996

      过程转换接头M24- Variv.F DN32 PN40

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024003

      过程转换接头M24- Variv.F DN32 PN40,3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023998

      过程转换接头M24- DIN11851 DN50

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024005

      过程转换接头M24- DIN11851 DN50,3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Abnahmepr黤zeugnis EN10204-3.1 Material

    • Order code 52026997

      过程转换接头M24- SMS 1-1/2"

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52026999

      过程转换接头M24- SMS 1-1/2",3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52024267

      EPDM O型圈

      5x O-ring 15.54x2.62mm FDA, 3A compliant Ceraphant T process adapter
