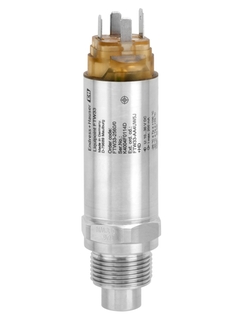

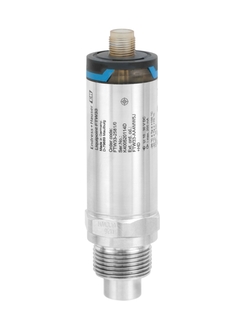

Liquipoint FTW33

Liquipoint FTW33 ©Endress+Hauser

不同介质中的Liquipoint FTW33示例

Liquipoint FTW33 ©Endress+Hauser
Liquipoint FTW33 ©Endress+Hauser
Liquipoint FTW33 ©Endress+Hauser
Liquipoint FTW33 ©Endress+Hauser
Liquipoint FTW33 ©Endress+Hauser
Liquipoint FTW33 ©Endress+Hauser
Liquipoint FTW33 ©Endress+Hauser

超紧凑型齐平安装的探头,适用于液体和糊状介质检测

Liquipoint FTW33 符合所有国际卫生型要求,专为食品行业而开发,适用于所有行业的工业应用。可用于糊状介质、粘稠介质和严重粘附介质。高级:
- 油基和水基流体,和糊状/粘稠介质检测
- 真正齐平安装
可靠:
- 带自动粘附补偿功能
- 通过测试磁铁进行功能检查
简便:
- 无需标定或调节
- 即插即用,无需使用特殊工具

  • 优势

    • 齐平安装,仍可使用管道安装短管,特别适用于卫生型行业

    • 黏附补偿功能可实现安全可靠的测量,确保可靠开关切换

    • 无需针对每种介质单独进行调节

    • 紧凑型结构设计,即使在狭小空间中或难于操作的场合中也能简便安装

    • 具有多种过程连接,可以安装在新工厂和现有工厂中

    • 耐CIP和SIP清洗 - 最高防护等级为IP69

    • 通过LED显示进行现场功能检测

  • 应用领域

    在管道储罐、混合容器和过程容器中使用,带或不带搅拌器。适用于电导率>1 μS/cm或介电常数>2的液体。设计用于食品行业。可以在食品行业中进行泡沫检测。

    • 过程连接:螺纹和卫生型连接

    • 传感器长度:齐平安装

    • 温度:-20...+100°C (-4...+212°F);CIP/SIP:max. 150°C (302°F),1 h内

    • 压力:0...25 bar abs (0...362.5 psi abs)

    • 卫生型证书

特征和规格

返回

Details

  • 测量原理

    导电性

  • 特点/应用

    紧凑型限位探头,在管道和储罐、混合罐、带或不带搅拌器的过程罐中使用,适用水基液或油基液,带自动粘附补偿,齐平安装

  • 特点

    耐CIP和SIP
    可以检测导电性泡沫或可以关闭

  • 电源/通信

    10…30 VDC

  • 环境温度

    -40 ... 70°C
    (-40 ... 158°F)

  • 过程温度

    标准:
    -20 ... 100°C
    清洗:
    -20 ... 150°C,在1小时内
    (-4 ... 302°F,在1小时内)

  • 过程压力(绝压)/最大过压限定值

    真空... 25 bar
    (真空... 362.5 psi)

  • 主要接液部件

    传感器:316L
    传感器密封圈:PEEK

  • 过程连接

    螺纹G1、G1/2、G3/4、M24

  • 卫生型过程连接

    卡箍ISO 2852 1...1 1/2"、2",
    DIN11851管道接头

  • 通信

    DC PNP

  • 证书和认证

    CSA C/US

  • 设计认证

    EN 10204-3.1

  • 卫生型认证

    3A、EHEDG

  • 选项

    焊座,
    卫生型过程连接的转接头

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code

      Unit is not repairable.

    • Order code 71280307

      M16阀插头座

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Order code 71280349

      Valve plug ISO4400 NPTF1/2, 4-pole

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Order code 71280350

      阀塞

      Consists of: plug connector, screw, seal, Usage: FTL31/FTL33, FTW33.

    • Order code 52006263

      M12插头

      M12 插头 自连接 M12转成格兰

    • Order code 52024216

      电缆插座

      M12x1 plug 5m cable PVC, 316L lock Especially for sanitary applications

    • Order code 52018763

      电缆插座

      适用于M12插头,集成LED指示 带5m电缆 PVC 材质 316L锁紧螺母 针对卫生型应用

    • Order code 52010285

      电缆插座

      适用于M12插头 带5m电缆 PVC材质,铜镀锡/ 镍锁紧螺母

    • Order code 52021717

      O型圈

      for weld-in adapter G3/4 D=50 316L Liquiphant T FTL20H

    • Order code 52014472

      O型圈

      for weld-in adapter G1 (52001051) Liquiphant M "GW2" Liquiphant T "7", Liquicap M "GWJ", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for weld-in andapter G1, 316L 3.1 (52011896) Liquiphant M "GW2", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for sliding sleeve Soliphant T

    • Order code 52014424

      密封垫圈

      for weld-in adapter G1, adjustable, 316L (52001221) Liquiphant M "GW2" for weld-in adapter G1, adjustable, 316L (52011898) Liquiphant M "GW2" for weld-in adapter G1, adjustable Liquiphant FTL330H/FTL330L, Liquiphant T FTL20H "UPJ

    • Order code 71194296

      密封圈

      Process gasket. Usage: process connection G1/2, FTL31/FTL33, FTW23, FTW33.

    • Order code 71185027

      密封圈

      Process gasket. Usage: process connection G3/4, FMP50/FMP51/FMP56, FTL31/FTL33, FTL50/FTL50H, FTL80/FTL81, FTW23, FTW33.

    • Order code 52014048

      密封圈

      Process gasket for process connections G1

    • Order code 52024267

      EPDM O型圈过程接口

      5x O-ring 15.54x2.62mm FDA, 3A compliant Ceraphant T process adapter

    • Order code 52010156

      套筒扳手

      Liquiphant T FTL20/FTL20H

    • Order code 71267011

      Test magnet

      Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51H, FTW23, FTW33.

    • Order code 71258357

      焊接适配器 G3/4, d=29, 316L

      Flush mount process connection. For pipe-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33.

    • Order code 52028295

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ" w/o flange Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71258355

      焊接适配器 G3/4 d=50, 316L

      Flush mount process connection. For vessel-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33, FMI51, FTI51, 11371. Usage: TMR35.

    • Order code 52018765

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ", FMI51, FTI51 "GQJ" Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71258358

      焊座 G1, d=53, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 71093129

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52001051

      焊座

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52011896

      焊座

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71041381

      焊座

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71041383

      焊座

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 52001047

      焊座

      齐平式安装 过程连接 材质: 316L

    • Order code 52006909

      焊座

      Flush mount process connection FTL20H "UPJ", FTL50H/FTL51H "EE2" Material: 316L Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52023997

      过程接口 Varivent N

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024004

      过程接口 Varivent N, 3.1

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023996

      过程接口 Varivent F

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024003

      过程接口 Varivent F, 3.1

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023998

      过程接口 DIN11851 DN50

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024005

      过程接口 DIN11851 DN50, 3.1

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Abnahmepr黤zeugnis EN10204-3.1 Material

    • Order code 52026997

      过程接口 SMS 1-1/2"

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52026999

      过程接口 SMS 1-1/2", 3.1

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52021715

      活接头螺母

      for process connection UPJ flush mount weld in adapter 52001047 Liquiphant T FTL20H

    • Order code 71258359

      Union nut DIN11851, F32, 304

      DIN11851 DN32. Usage: FTL20H, FTL33.

    • Order code 71258361

      Union nut DIN11851, F40, 304

      DIN11851 DN32. Usage: FTL20H, FTL33, FTW33, PMP23, PTP33B.
