产品规格参数
-
测量精度
class 2 acc. to IEC 60584
ASTM E230 and ANSI MC 96.1
IEC/Class A
IEC/Class AA -
响应时间
depending on configuration:
TC:
t50 = 2 s
t90 = 5 s
RTD:
t50 = 0,8s
t90 = 2s -
最大过程压力(静压)
at 20 °C: 200 bar (2900 psi)
-
工作温度范围
Type K:
-270 °C ...1.100 °C
(-454 °F ...2.012 °F)
Type J:
-210 °C ...760 °C
(-346 °F ...1.382 °F)
Type N:
-270 °C …1100 °C
(-454 °F ...752 °F)
Pt100 WW; 3mm; 316L; -200...600oC
Pt100 WW; 6mm; 316L; -200...600oC
Pt100 TF; 3mm; 316L; -50…400oC
Pt100 TF; 6mm; 316L; -50…400oC
Pt100 StrongSens; 6mm; 316L; -50…500oC -
所需最大插入深度
up to 30.000,00 mm (1181'')

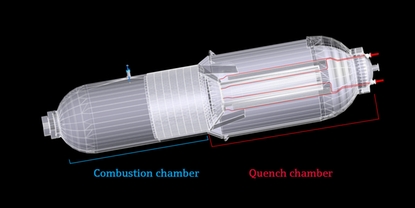

应用领域

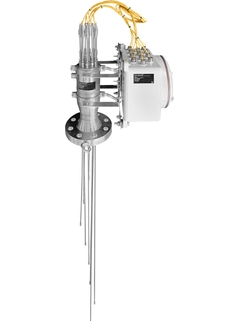

iTHERM TMS02 MultiSens Flex遵循最高安全标准设计,允许针对不同应用进行定制。温度测量芯子可弯曲,通过一个过程接口即可实现三维温度测量。仪表可以与热保护套管配套使用,也可以单独使用;具有最优响应时间,强机械强度,并且传感器可更换。采用热电偶或热电阻技术,或使用iTHERM StrongSens,配备高级诊断腔室,提供附加安全防护。
石化行业
油气行业
重化工工艺
优势
传感器的三维温度测量满足所需过程监测设置要求
模块化产品的安装、过程集成和维护都十分简单,灵活适应各类定制的罐体条件
铠装芯子具有高过程兼容性,符合IEC 60584、ASTM E230和IEC 60751标准
在线电子部件热保护功能保证最高产品稳定性
符合各类防护要求,可以安装在危险区中使用,过程集成简单
诊断腔室用作第二过程安全栅,实现附加安全防护;高级诊断功能能够进行压力监测,实现预维护
