TC65
防爆热电偶温度计

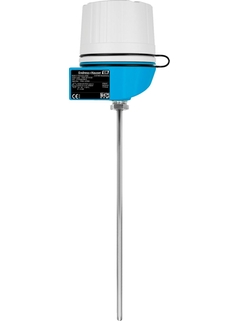

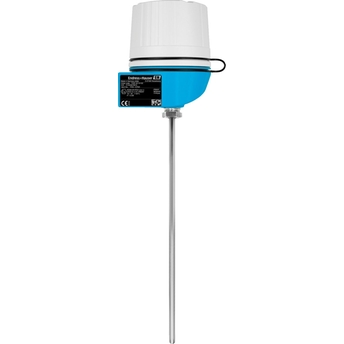

产品图片:TC65 热电偶温度计 ©Endress+Hauser

过程温度的安全测量,适用于石油、天然气等行业中恶劣工况的测量场合

此款热电偶温度计坚固耐用,适用于化工、石油、天然气、能源等行业的恶劣工况和安全要求高的测量场合。可选变送器兼容各种通用通信协议,可即装即用,与直接连线的传感器相比,提高了测量精度和可靠性。传感器可可直接与被测物接触,或使用弹簧压紧的温度计套管,设备设置灵活。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 防爆类型:本质安全型(Ex ia),隔爆型(Ex d),无火花型(Ex nA)

    • 测量芯子兼容性高,设计符合DIN 43772标准

    • 模块化设计,采用符合DIN EN 50446的标准接线盒和客户指定的插入深度,灵活性高

  • 应用领域

    • 精细化工

    • 石化行业

    • 电厂

    • 环境工程

    • 测量范围:–40 to 1 100 °C (–40 to 2 012 °F)

    • 根据所用的过程连接形式,静压范围可达 75 bar

    • 保护等级: IP68

特征和规格

返回

Details

  • 测量原理

    热电偶

  • 特点/应用

    英标
    模块化温度计
    满足重尘应用要求
    可以在危险区中使用
    螺纹过程连接
    带延长颈

  • 热保护套管

    无(不能与热保护套管配套使用)

  • 铠装芯子/探头

    矿物绝缘材料(MI),可弯曲

  • 热保护套管外径

    3.0 mm (0.12'')
    6.0 mm (0.24'')

  • 所需最大插入深度

    最大30,000.00 mm (1.181.10'')

  • 热保护套管材质

    1.4404 (316L)
    Alloy 600 (2.4816)合金

  • 过程连接

    公螺纹:
    NPT1/2"
    NPT3/4"
    卡套:
    NPT1/2"
    NPT3/4"

  • 热保护套管末端类型

    直管型
    锥管型

  • 工作温度范围

    K型:
    -40...1.100 °C
    (-40...2.012 °F)
    J型:
    -200...750 °C
    (-328...1.382 °F)

  • 最大过程压力(静压)

    20 °C时:80 bar (1,160 psi)

  • 测量精度

    Cl. 1,符合IEC 60584标准

  • 响应时间

    取决于设置
    t50 = 3 s
    t90 = 7 s

  • 模块化温度变送器

    是(4…20 mA;HART;PROFIBUS PA;FOUNDATION FIELDBUS)

  • 防爆认证

    ATEX II
    IECEx
    NEPSI
    防爆

  • 证书

    Gost认证
    SIL(仅针对变送器)

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • F
  • B
    • Nr B Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Nr B Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

  • D
    • Nr D Order code TA30H-

      Terminal Head TA30H

      Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).

  • B
    • Nr B Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
