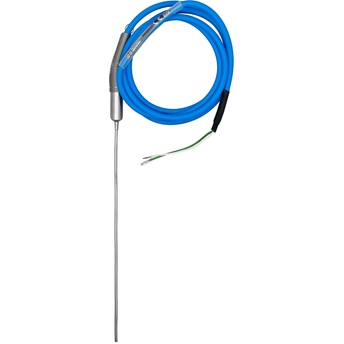

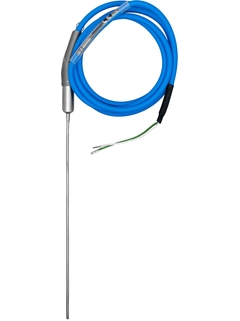

TSC310
热电偶传感器，导线探头
热电偶传感器的设计适合过程和实验室应用,性价比高。
热电偶探头安装简单，在普通过程应用中测量温度可靠、准确，提供了较高的操作安全性。探头特别适合用于机械设备，实验室仪器和工厂中测量气态和液态戒指，例如空气、水和油。探头外壳不用增加保护套管，直接与过程介质接触，能迅速准确地探测温度瞬间变化
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量精度
Cl. 2，符合IEC 60584标准
-
响应时间
t50 = 1 s
t90 = 2 s -
最大过程压力（静压）
20 °C时：25 bar (363 psi)
-
工作温度范围
K型：
-40...1.100 °C
(-40...2.012 °F)
J型：
-40...750 °C
(-40...1.382 °F) -
所需最大插入深度
最大100,000.00 mm (3,937.01'')
-
附加组件
-
优势
符合用户要求的插入长度，不同的过程连接，灵活性高
响应时间迅速
符合DIN EN 60584和ASTM E230/ANSI MC96.1标准的各种热电偶：J型 (Fe-CuNi), K型 (NiCr-Ni)
可危险场所使用：本质安全（(Ex ia)和无火花(Ex nA)
通过NEPSI(Ex ia)认证
