TST41N

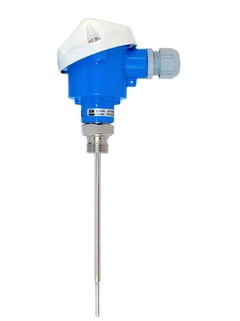

模块化热电阻（RTD）温度计

适合各行各业的全面、通用的温度测量技术

温度计主要用于化工行业，也适合其它行业应用。头部装配变送器的设备可即装即用，与直接连线的传感器相比，增强了测量精确度和可靠性。多种过程连接、规格和材质提供了应用的灵活性。

选型
登录和配置后的定价

比较

快速选择

从我们建议的选项中选择

<%label%>
-- selected coding

-- selected label
<%label%>
如需查看其他非推荐选项，请使用Configurator进行完整产品选型
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

如需查看其他非推荐选项，请使用Configurator进行完整产品选型
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

可选附加功能

请使用Configurator进行完整产品选型

或

个性化配置

从所有可用选项中继续选择

配置

优势
模块化设计，采用符合DIN EN 50446的标准接线盒和客户指定的浸入长度，灵活性高
芯子兼容性高，设计符合DIN 43772标准
短锥/锥形端部，加快反应时间
头部变送器选择容易：模拟输出4至20 mA、HART®、PROFIBUS® PA或 FF现场总线

特征和规格

测量原理

热电阻
特点/应用

英标
模块化温度计
响应时间短（缩径型/锥管型）
螺纹过程连接
带延长颈
热保护套管

无（不能与热保护套管配套使用）
铠装芯子/探头

矿物绝缘材料（MI），可弯曲
热保护套管外径

6.0 mm (0.24'')
9.0 mm (0.35'')
所需最大插入深度

最大10,000.00 mm (393.70'')
热保护套管材质

1.4404 (316L)
过程连接

公螺纹：
G1/2"
G3/4"
G1"
NPT1/2"
NPT3/4"
NPT1"
M20x1.5
热保护套管末端类型

缩径管
表面光洁度Ra

0.8 μm (31.5 μin.)
工作温度范围

PT 100：
-50...600 °C
(-58...1.112 °F)
最大过程压力（静压）

20 °C时：20 bar (290 psi)
测量精度

Cl. A ，遵循IEC 60751标准
Cl. AA，遵循IEC 60751标准
响应时间

取决于设置
t50 = 3 s
t90 = 6 s
模块化温度变送器

是（4…20 mA；HART；PROFIBUS PA；FOUNDATION FIELDBUS）

显示更多
显示更少

文档/手册/软件

下载类型

过滤

New Version (01.14): Omnigrad TST40N, TST41N
Modular resistance thermometer with threaded process connection

技术信息(TI)
Technical information
RTD Thermometer
omnigrad TST41N
Contact thermometer - Fast response
M.I. cable
Threaded process connection
With TIG welded reinforcing tube

技术信息(TI)
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли

竞争力手册(CP)

08/11

俄语
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности

竞争力手册(CP)

04/10

俄语
Process RTD Direct contact
产品型号: TST41N-
一致性声明编号: HE_00517_01.17
制造商规格: RoHS

Manufacturer Declaration

英语
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
产品型号: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
一致性声明编号: EC_00568_01.17

EU Declaration

德语 , 英语 , fr
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
产品型号: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
一致性声明编号: EC_00136_02.16

EU Declaration

德语 , 英语
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Low cost RTD General purpose, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, RTD-thermometer
产品型号: TR88-, TS111-, TSM187-, TSM487-, TST187-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST487-, TST602-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR300-, TPR100-
地区/国家: Russia
认证机构: Rosstandart
证书号: IT.C.32.004.A_66572

Metrology

俄语

显示更多
显示更少

附件/备件

搜索

过滤

Order code

Specification

- Order code 60001328

  垫圈

  显示详细信息隐藏详细信息
- Order code 60001344

  垫圈

  显示详细信息隐藏详细信息
- Order code 71163501

  密封圈

  显示详细信息隐藏详细信息
- Order code 71044061

  设备包

  2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector

  显示详细信息隐藏详细信息
- Order code 71367414

  Spare parts kit copper ring G1/2",(10 p)

  Packing unit: 10 pieces

  显示详细信息隐藏详细信息
- Order code 71367420

  Spare parts kit copper ring G3/4",(10 p)

  Packing unit: 10 pieces

  显示详细信息隐藏详细信息
- Order code 71367424

  Spare parts kit copper ring G1",(10 p)

  Packing unit: 10 pieces

  显示详细信息隐藏详细信息
- Order code 71367425

  Spare parts kit copper ring M20x1.5(10p)

  Packing unit: 10 pieces

  显示详细信息隐藏详细信息
- Order code 71367427

  Spare parts kit ring D21/di 10xgreen,10p

  Packing unit: 10 pieces

  显示详细信息隐藏详细信息
D
- Nr D Order code TA20A-

  接线盒 TA20A

  Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.

  显示详细信息隐藏详细信息
- Nr D Order code TA20B-

  接线盒 TA20B

  Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black Ambient temperature: max. +80 oC Protection: IP65

  显示详细信息隐藏详细信息
- Nr D Order code TA20D-

  接线盒 TA20D

  Product being phased out, limited availability. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66

  显示详细信息隐藏详细信息
- Order code FXA195-

  通讯接口 FXA195

  Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  显示详细信息隐藏详细信息
- Order code READWIN-

  Readwin 2000调试包 READWIN

  Readwin 2000 Operation + Read. software

  显示详细信息隐藏详细信息
B
- Nr B Order code TMT180-

  模块温度变送器 TMT180

  Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

  显示详细信息隐藏详细信息
- Nr B Order code TMT181-

  模块温度变送器 TMT181

  Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

  显示详细信息隐藏详细信息
- Order code TXU10-

  仪表调试包 TXU10

  用于可以PC编程调试的设备程序设置+用于带USB接口的PC的连接线

  显示详细信息隐藏详细信息
B
- Nr B Order code TMT84-

  模块温度变送器 TMT84

  Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable.

  显示详细信息隐藏详细信息
- Nr B Order code TMT85-

  模块温度变送器 TMT85

  Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose.

  显示详细信息隐藏详细信息
- Nr B Order code TID10-

  温度变送器显示器TID10

  to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84.

  显示详细信息隐藏详细信息
D
- Nr D Order code TA30A-

  接线头 TA30A

  Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

  显示详细信息隐藏详细信息
- Nr D Order code TA30D-

  接线头 TA30D

  Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

  显示详细信息隐藏详细信息
B
- Nr B Order code TMT182-

  模块温度变送器 TMT182

  Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine.

  显示详细信息隐藏详细信息
- Nr B Order code TMT82-

  模块温度变送器 TMT82

  2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

  显示详细信息隐藏详细信息

显示更多
显示更少

替代产品

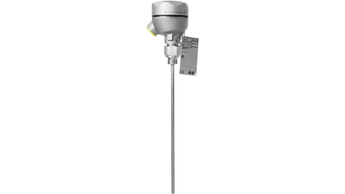

- iTHERM TM111

  模块化温度计带趋势设定功能，直接安装，适用不同工业应用场合。安装热电阻或热电偶传感器，使用简单。
  更多信息

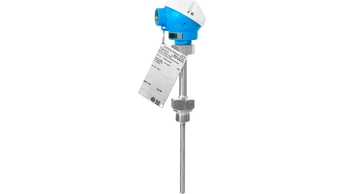

- iTHERM TM101

  热电阻或热电偶温度计，直接安装在过程中。基本型温度计，铠装芯子不可替换，适用所有标准应用场合。
  更多信息
- iTHERM TM111

  Modular thermometer with resistance sensor or thermocouple w/o thermowell for direct process contact. Metrical version with non-exchangeable insert for demanding applications in a high variety of industries. Measuring range: -200...+1.100oC/ -328...2.012oF (depending on the configuration). ::Fastest response times for optimal process control through iTHERM QuickSens insert. ::Maximum robustness for highest process safety through iTHERM StrongSens insert. ::Material process wetted parts: 316L, Alloy600.
- iTHERM TM101

  Modular thermometer with resistance sensor or thermocouple w/o thermowell for direct process contact. Metrical version with non-exchangeable insert for low demanding applications in a high variety of industries. Thermometer insert in direct contact to process. Measuring range: -50...+650oC/ -58...+1.202oF (depending on the configuration). Material in direct contact with process: 316L, Alloy600.
显示更多
