TR24

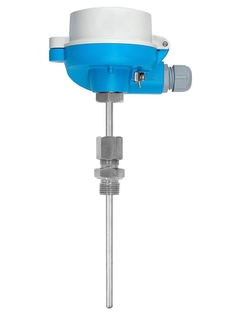

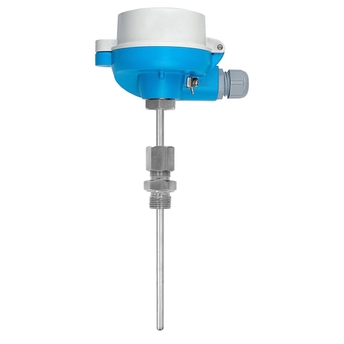

模块化热电阻(RTD)温度计

TR24
模块化热电阻(RTD)温度计 ©Endress+Hauser

适合各行各业的全面、通用的温度测量技术

高度模块化、坚固耐用的温度计适合几乎所有行业应用。头部选装变送器的设备兼容所有通用通信协议,可即装即用,与直接连线的传感器相比,增强了测量精确度和可靠性。多种过程连接、规格和材质提供了应用的灵活性。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 模块化设计,采用符合DIN EN 50446的标准接线盒和客户指定的浸入长度,灵活性高

    • 芯子兼容性高,设计符合DIN 43772标准

    • 短锥型端部,加快反应时间

    • 危险场所使用的保护类型:本质安全型(Ex ia),无火花型(Ex nA)

    • 头部变送器选择容易:模拟输出4至20 mA、HART®、PROFIBUS® PA或 FF现场总线

特征和规格

返回

Details

  • 测量原理

    热电阻

  • 特点/应用

    英标型
    模块化温度计
    螺纹过程连接
    无延长颈

  • 热保护套管

    无(不能与热保护套管配套使用)

  • 铠装芯子/探头

    矿物绝缘材料(MI),可弯曲

  • 热保护套管外径

    3.0 mm (0。12'')
    6.0 mm (0.24'')

  • 所需最大插入深度

    最大10,000.00 mm (393.70'')

  • 热保护套管材质

    1.4404 (316L)

  • 过程连接

    紧固套管:
    G1/2"
    NPT1/2"
    焊入式

  • 热保护套管末端类型

    直管型
    缩径型

  • 表面光洁度Ra

    未设置

  • 工作温度范围

    PT 100:
    -200...500 °C
    (-328...932 °F)

  • 最大过程压力(静压)

    20 °C时:40 bar (580 psi)

  • 测量精度

    Cl. A ,遵循IEC 60751标准
    Cl. AA,遵循IEC 60751标准

  • 响应时间

    取决于设置
    t50 = 2 s
    t90 = 5 s

  • 模块化温度变送器

    是(4…20 mA;HART;PROFIBUS PA;FOUNDATION FIELDBUS)

  • 防爆认证

    ATEX II
    NEPSI
    IECEx

  • 证书

    Gost认证
    SIL(仅针对变送器)

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • C
  • A
    • Nr A Order code TPR100-

      热电阻芯 TPR100

      Mineral insulated cable (MgO) Replaceable insert acc.EN60751. max. measuring range: -200...600 oC (depending on configuration)

  • F
  • B
    • Nr B Order code TMT84-

      模块温度变送器 TMT84

      Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable.

    • Nr B Order code TMT85-

      模块温度变送器 TMT85

      Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose.

    • Nr B Order code TID10-

      温度变送器显示器TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84.

  • D
    • Nr D Order code TA20A-

      接线盒 TA20A

      Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.

    • Nr D Order code TA20B-

      接线盒 TA20B

      Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black Ambient temperature: max. +80 oC Protection: IP65

    • Nr D Order code TA20D-

      接线盒 TA20D

      Product being phased out, limited availability. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66

    • Nr D Order code TA20R-

      接线盒 TA20R

      Stainless steel AISI 316L W 1.4404. Max temperature 100 oC, ATEX: +95 oC. Protection class IP66/IP67

    • Nr D Order code TA20W-

      接线盒 TA20W

      Product being phased out, limited availability. Connection head hinged to mount a measuring insert with head transmitter or connection socket. To be mounted on an armature or a protection sleeve. Material: Aluminium Area temperature: max. +100 oC; ATEX: +95 oC Protection: IP66

    • Nr D Order code TA21E-

      接线盒 TA21E

      Retainer for terminal block or head transmitter. Cover: srewable. Material: Aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65.

    • Order code READWIN-

      Readwin 2000调试包 READWIN

      Readwin 2000 Operation + Read. software

    • Order code TXU10-

      仪表调试包 TXU10

      用于可以PC编程调试的设备 程序设置+用于带USB接口的PC的连接线

    • Order code FXA195-

      通讯接口 FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  • D
    • Nr D Order code TA30A-

      接线头 TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr D Order code TA30D-

      接线头 TA30D

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr D Order code TA30P-

      接线盒 TA30P

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: Polyamid PA12 antistatic. Colour: black. Ambient temp.: -40...120oC (housing). Protection: IP65 (housing).

  • B
    • Nr B Order code TMT180-

      模块温度变送器 TMT180

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT181-

      模块温度变送器 TMT181

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT182-

      模块温度变送器 TMT182

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine.

    • Nr B Order code TMT82-

      模块温度变送器 TMT82

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
