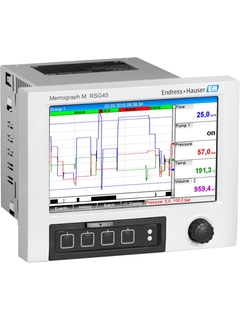

Memograph M RSG45
保存、显示、分析和通信
高级数据管理仪是一个灵活强大的过程值处理系统。操作直观,Memograph M能够快速简便地满足各个应用的要求。过程测量值清晰显示在显示屏中,并安全记录;监控和分析限定值。通过通用通信协议,测量值和计算值都可以便捷地与上层系统通信,并允许各个工厂模块互连。也可提供不带显示屏的 DIN 导轨版本。
- F
- L
- E
- X
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
输入
20 analog (max) (U, I, TC, RTD, frequency, pulse)
20 HART (max) (HART, 4…20mA)
14 digital (max) (control, event and counting inputs) -
输出
12 relays (max)
2 analog (max) (I, pulse)
1 transmitter power supply -
显示
TFT 7" colour graphic display
TFT 7" colour graphic display with touch panel -
存储/记录
internal memory
SD card
USB flash drive -
计算结果
Mass/heat quantity
heat quantity difference
-
快速选择
个性化配置
-
优势
高数据安全性:防篡改的数据储存单元和带电子签名的个性化访问权限设置(FDA 21 CFR 11)
HART输入卡:直接连接HART传感器,提供准确过程值,用于计算和记录
HART网关:使用Memograph M,无需中断测量回路,即可通过FieldCare直接访问现场的HART传感器,节约时间
不锈钢前面板,触摸键操作:在苛刻工况条件下无故障操作,例如:卫生型或危险区应用。

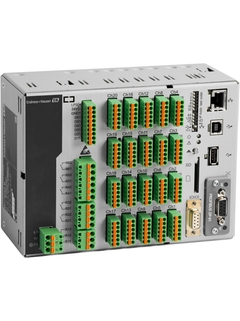

DIN 导轨版本:一体式,小尺寸,适用于机柜安装或远程现场应用。
系统功能:支持通用现场总线(Modbus、Profibus DP、...
-
应用领域
各类任务解决方案:例如:
过程测量技术
电厂和能源供给
蒸汽锅炉监控/能效计算
食品和制药行业
工厂和设备工程和建造;牛奶巴氏杀菌机
环境和气候测量技术;溢出控制
质保和生产
批量分析;电报功能
iTHERM TrustSens 校准监测
测试舱和实验室应用
