静压式液位计

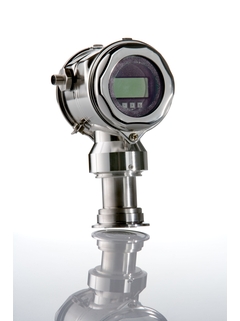

Deltapilot FMB70

©Endress+Hauser
©Endress+Hauser
©Endress+Hauser
©Endress+Hauser
©Endress+Hauser

采用Contite测量元件的高性能压力传感器，用于静压式液位测量

Deltapilot FMB70采用抗冷凝CONTITE测量元件和双腔室外壳，主要用于过程工业和卫生行业，测量敞开式或封闭式容器中液体或浆料介质的液位，测量不受泡沫影响。内置HistoROM数据模块，方便管理过程和设备参数。设计符合IEC 61508标准，满足SIL3功能安全要求。

Extended选型
  • F
  • L
  • E
  • X

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富，适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 测量精度

      标准：0.1%
      可选：0.075%

    • 过程温度

      -10...100°C
      (14...212°F)

    • 压力测量范围

      100mbar...10bar
      (1.5...150psi)

    • 过程压力（绝压）/最大过压限定值

      40 bar (600 psi)

    • 主要接液部件

      Alloy C合金
      316L

    • 最大测量距离

      100m (328ft) H2O

    • 过程膜片的材质

      316L、AlloyC合金、
      铑>金

    • 传感器

      100 mbar...10 bar
      (1.5 psi...150 psi)

Loading alternative products

快速选择

从我们建议的选项中选择
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FMB70
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
价格核算中…
暂时无价格信息
from CHF 803.-
  • 可选附加功能
请使用 Configurator进行完整产品选型 to continue.
或

个性化配置

从所有可用选项中继续选择

附加组件

  • 优势

    • 优良的可重复性和长期的稳定性

    • 全密封CONTITE测量元件: 抗冷凝，气候防护； 高参考精度：±0.1%，可选：±0.075%； 最小温度影响

    • 用于过程压力监测达到SIL3要求, 符合IEC61508标准，通过TÜV SÜD认证

    • HistoROM®/M-DAT记忆模块

    • 测量元件和电子元件的功能监测

    • 连续模块化测量差压、静压和压力（Deltabar S， Deltapilot S，Cerabar S)，如， 可更换显示， 通用型电子元件

    • 调试简单，无需操作工具

  • 应用领域

    静压式传感器可用于以下测量：

    • 过程工业、过程测量、制药和食品行业等领域的液体和浆料介质的静压测量

    • 液体液位、体积或质量的测量

特征和规格

返回

Details

  • 测量原理

    静压

  • 特点

    压力变送器，用于压力或静压液位测量，带齐平安装的金属CONTITE传感器：
    - 全密封焊接
    - 完全抗冷凝
    - 不受气候条件的影响
    - 长期稳定性
    - 最小温度影响

    一体式仪表
    模块化仪表平台

  • 供电电压

    4...20 mA HART
    10.5...45 VDC（非防爆）：
    Ex ia：10.5...30 VDC
    PROFIBUS PA：
    9...32 VDC（非防爆）
    FOUNDATION Fieldbus：
    9...32 VDC（非防爆）

  • 参考测量精度

    标准：0.1%
    可选：0.075%

  • 长期稳定性

    0.05% URL /年

  • 过程温度

    -10...100°C
    (14...212°F)

  • 环境温度

    -40...85°C
    (-40...185°F)

  • 传感器

    100 mbar...10 bar
    (1.5 psi...150 psi)

  • 最小可标定量程

    25 mbar (3.63 psi)

  • 抗真空压力

    0 mbar abs.

  • 最大过压限定值

    40 bar (600 psi)

  • 过程连接

    螺纹：
    G1 1/2、MNPT1/2

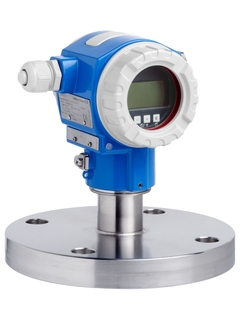

    法兰：
    DN40...DN100，
    ASME 1 1/2"...4"，
    JIS 10K

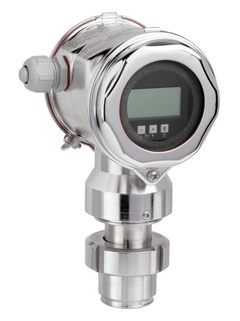

  • 卫生型过程连接

    Tri-Clamp卡箍
    DIN11851
    DIN11864-1
    NEUMO
    Varivent N
    SMS
    DRD

  • 过程膜片的材质

    316L、AlloyC合金、
    铑>金

  • 垫圈材质

    无，焊接传感器

  • 填充液

    惰性油、
    合成油

  • 外壳材质

    316L、铸铝

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、EAC

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN10204-3.1
    NACE MR0175
    MR0103

  • 卫生型认证

    3A、EHEDG
    CoC ASME-BPE

  • 船级认证

    GL

  • 饮用水认证

    NSF

  • 特点

    金-铑涂层膜片

  • 测量原理

    静压

  • 特点/应用

    压力变送器，用于压力测量或静压液位测量，带齐平安装的金属CONTITE传感器：
    - 全密封焊接
    - 完全抗冷凝
    - 不受气候条件的影响
    - 长期稳定性
    - 最小温度影响

    一体式仪表
    模块化仪表平台

  • 特点

    诊断功能

  • 电源/通信

    4...20mA HART：
    10.5...45 VDC
    Ex ia：10.5...30 VDC
    PROFIBUS PA /
    FOUNDATION Fieldbus：
    9...32 VDC（非防爆型）

  • 测量精度

    标准：0.1%
    可选：0.075%

  • 长期稳定性

    0.05% URL /年

  • 环境温度

    -40...85°C
    (-40...185°F)

  • 过程温度

    -10...100°C
    (14...212°F)

  • 过程压力（绝压）/最大过压限定值

    40 bar (600 psi)

  • 压力测量范围

    100mbar...10bar
    (1.5...150psi)

  • 主要接液部件

    Alloy C合金
    316L

  • 过程连接

    螺纹：
    G1 1/2、MNPT1/2
    法兰：
    DN40...DN100，
    ASME 1 1/2"...4"，
    JIS 10K

  • 卫生型过程连接

    Tri-Clamp卡箍
    DIN11851
    DIN11864-1
    NEUMO
    Varivent N
    SMS
    DRD

  • 最大测量距离

    100m (328ft) H2O

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、EAC

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN10204-3.1
    NACE MR0175、MR0103

  • 卫生型认证

    3A、EHEDG
    CoC ASME-BPE

  • 船级认证

    GL

  • 饮用水认证

    NSF

  • 选项

    HistoROM/M-Dat
    四行数字显示
    不锈钢外壳或铝外壳

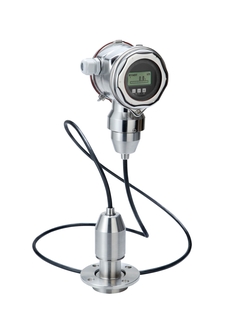

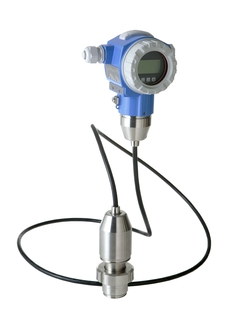

    分离型外壳

  • 应用限制

    传感器：Contite，
    抗冷凝，防水，
    金属焊接
    在带压条件下可以使用两台压力变送器进行差压测量。注意表压比：静压

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 12
    • Nr 12 Order code 52020440

      安装组件

      consists of: 2x O-ring 45.69x2.62 EPDM retaining ring, plastics Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 12 Order code 71020596

      安装组件

      consists of: 2x O-ring 45.62x69x2.62 EPDM 1x profile gasket 51.4x57.2x1.6 VMQ retaining ring, plastics Cerabar S PMC71/PMP71/PMP75 Deltabar S PMD70/PMD75/FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 13
  • 15
    • Nr 15 Order code 52020760

      缆塞

      consists of: cable gland M20 O-ring 18.72x2.62 VMQ Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020761

      电缆入口

      consists of: gasket 18.72x2.51 NBR adapter M20 > G1/2 O-ring 18.77x1.78 NBR Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020762

      插接头

      Harting plug set Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020763

      插接头

      Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Order code 52006263

      过程连接件|Socket for plug 4p-125V, 4A-M12

      M12 插头 自连接 M12转成格兰

    • Order code 71043576

      大气补偿过滤口

      Consists of: filter plug, Gore-Tex filter. Usage: housing T15, FMB70.

    • Order code 71111056

      大气补偿过滤口

      Consists of: vent screw 304. Pressure compensation filter. O-ring EPDM, protection lid. Usage: housing T14, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Housing F31, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55. Housing F15 w/o B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

    • Order code 71219639

      大气补偿过滤口

      Consists of: vent screw 304. Pressure compensation filter. O-ring VMQ, protection lid. Usage: housing T17, FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/ PMP75. Housing F15 bei B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

  • 20
    • Nr 20 Order code 52020432

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 25
    • Nr 25 Order code 71002774

      不锈钢盖

      Material: 316L flat gasket VMQ, centering ring, screw not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 20
    • Nr 20 Order code 71002810

      带视窗盖

      Material: 316L Sight glass: mineral glass flat gasket VMQ, centering ring, screw approval 2,3,4,8,Q,W,7,8 Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71002811

      带视窗盖

      Material: 316L Sight glass: Polycarbonat PC flat gasket VMQ, centering ring, screw approval A,F,R,S,U,1,6 Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71245247

      铝盖

      Material: aluminium, coated. Sight glass: mineral glass, coated. O-ring EPDM, FDA. Not for EEx d/XP. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 21
    • Order code 71290825

      接地端子

      Consists of: spring washer, screw, earth handle, clamp. Usage: housing T14/T15/T17, FMB70, FMD71/FMD72/ FMD77/FMD78, PMC71, PMP71/PMP75, PMD70/PMD75. Housing F30/F31, FMB50/FMB51/FMB52/ FMB53, PMC51, PMD55, PMP51/PMP55.

  • 25
    • Nr 25 Order code 52020432

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 30
    • Nr 30 Order code 71026358

      电子插件

      4-20mA, version 2.1 push button on electronics Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 30 Order code 71026359

      电子插件

      4-20mA, version 2.1 push buttons on housing Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 30 Order code 71071824

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.00.zz. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071825

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.00.zz. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071826

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 15mA +/- 1mA. Push button on electronics. Verwendung: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071827

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 15mA +/- 1mA. Push button on housing. Verwendung: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71196092

      电子插件

      4-20mA, version 02.11.zz. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71196093

      电子插件

      4-20mA, version 2.11.zz. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71214890

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 04.00.zz, FF, DevRev07. Current consumption 15mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for SIL.

    • Nr 30 Order code 71214892

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 04.00.zz, FF, DevRev07. Current consumption 15mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for SIL.

    • Nr 30 Order code 71224775

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.01.zz, PROFIBUS PA, Profile 3.02, DevRev03. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71224776

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.01.zz, PROFIBUS PA, Profile 3.02, DevRev03. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71263933

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on electronics. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71263934

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on housing. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71386147

      电子插件 HART Ex, v2.30

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on electronics. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71386153

      电子插件

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on housing. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

  • 31
    • Nr 31 Order code 52027785

      存储器

      Setup-/diagnostic software included. Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 31 Order code 52027785

      存储器

      Setup-/diagnostic software included. Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 35
    • Nr 35 Order code 52020434

      接线端子

      RFI-filter Cerabar S PMC71/PMP71/PMP72/PMP75 Deltabar S PMD70/PMD75/FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 35 Order code 52026605

      接线端子

      RFI-filter PROFIBUS PA Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 35 Order code 52027691

      接线端子

      RFI-filter FOUNDATION Fieldbus Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 35 Order code 71028473

      接线端子

      Overvoltage protection, RFI-filter Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71028475

      接线端子

      Overvoltage protection, RFI-filter PROFIBUS PA Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71028476

      接线端子

      Overvoltage protection, RFI-filter FOUNDATION Fieldbus Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71121574

      接线端子

      RFI filter. PROFIBUS PA. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for TIIS.

    • Nr 35 Order code 71191892

      接线端子

      RFI-filter. Not for TIIS Ex ia, TIIS Ex d. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 35 Order code 71191894

      接线端子

      Overvoltage protection, RFI-filter. Not for TIIS Ex ia, TIIS Ex d. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 40
    • Nr 40 Order code 71002865

      显示模块

      Digital display with snapped bracket languages de, en, fr, es, it, nl for electronics from software version 2.0 languages ja, zh for electronics from software version 2.0.1 Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Order code 71043886

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043888

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043889

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71070738

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 214880-0002

      Weld-in adapter UNI D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 52002041

      焊座

      Flush mount process connection FTL50H/FTL51H "PE2", PMC45, PMP46 "KL", PMC71, PMP75 "TK", FMB70 "TK", FMD78 "TK" Material: 316L Seal: PTFE flat

    • Order code 52006262

      焊座, UNI D85

      Flush mount process connection FMI51/FMI52, FTI51/FTI52 "UPJ", FMP41C "UPK"/"UQK", PMC45 "HA", FMB70 "00" Universal adapter Core hole: 85mm Material: 316L

    • Order code 52010173

      焊座, UNI D85，3.1材质认证

      Flush mount process connection. Core hole: 85mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 52010174

      焊座, UNI D65，3.1材质认证

      Flush mount process connection FMI51/FMI52, FTI51/FTI52 "UPJ", FMP41C "UPK"/"UQK", PMC45 "HA", FMB70 "00" Universal adapter Core hole: 65mm Material: 316L Inspection cert. EN10204-3.1 material

    • Order code 52011899

      焊座

      Flush mount process connection FTL50H/FTL51H "PE2", PMC45, PMP46 "KL", PMC71, PMP75 "TK", FMB70 "TK", FMD78 "TK" Material: 316L Seal: PTFE flat Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52024469

      过程连接件|Weld-in G1-1/2, 316L

      mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Correct installation only with dummy

    • Order code 52024470

      焊座

      mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Inspection cert. EN10204-3.1 material

    • Order code 916743-0000

      Weld-in adapter DRD DN50, 304

      Flush mount process connection. Material: 304. Seal: PTFE flat. FDA compliant. Usage: Flush mount FTL50/FTL50H/FTL51/FTL51C/FTL51H, PMC51, PMP51, PMP55, PMC71, PMP75, FMB50, FMB70, FMD78.

  • 50
  • 57
    • Order code 71114172

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114173

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114174

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114177

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114178

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114205

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114206

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114208

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50_110_UNJ/UPJ, PMC51_110_UNJ/UPJ.

    • Order code 52024471

      焊座焊接保护堵头

      to avoid any deformation during welding of nozzle 52024469 / 52024470.

    • Order code 71114176

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114178

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71114207

      通用接头转接件

      Slotted-nut, process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A conform. Usage: FMB50, PMC51.

    • Order code 71350315

      通用接头转接件

      Process connection. Material: 316L. FDA, 3-A conform. Usage: FMB50, FMB70, FMD71, FMD78, PMC51, PMP23, PMP55.

    • Order code 71114160

      焊座

      Flush mount process connection. Core hole: 85mm. Material: 316L. Seal: silicone profile gasket FDA conform. Usage: FMB50, FMB70.

    • Order code 71114171

      焊座

      Flush mount process connection. Core hole: 85mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket FDA conform. Usage: FMB50, FMB70.

    • Order code 71304770

      安装组件

      Material: 316L. Usage: mounting kit to attach the own mounting bracket / weather protection cover, FMB70, PMC71, PMP71/PMP75.

    • Order code 71377369

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377370

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377371

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377380

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377383

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71102216

      安装组件

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

成功案例

比较产品
本网站使用cookies。如果您继续使用本网站，即表明您同意我们使用cookies。 单击此处，了解更多信息
