Deltapilot S DB50

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

测量原理

绝压和表压
特点

用于静压物位测量的压力变送器，齐平安装的CONTITE传感器，采用金属测量膜片，哈C4材质，密封焊接，高湿度保护，一体化型
供电电压

三线模拟信号：15...20V DC，两线PFM信号：14...16V DC，4...20mA HART：11,5...30V DC；PROFIBUS PA：9...24V DC，Ex ia：9...32V DC，基金会现场总线：9...32V DC
参考测量精度

0,2%，可选0,1%
长期稳定性

0,1% URL / 6月
过程温度

-10...100℃
环境温度

-40...85℃
传感器

100mbar...10bar
最大量程比

最大10:1
最大过压限定值

25bar
过程连接

螺纹，法兰 (DIN, ANSI, JIS)
通信

三线模拟量；两线PFM；4...20mA HART；PROFIBUS PA；基金会现场总线
证书和认证

ATEX、CSA、TIIS、WHG/溢出保护，船级认证
替代产品

FMB70

显示更多
显示更少

测量原理

静压
特点/应用

用于静压物位测量的压力变送器，齐平安装的CONTITE传感器，采用金属测量膜片，哈C4材质，密封焊接，高湿度保护，一体化型
电源/通信

三线模拟信号：15...20V DC，两线PFM信号：14...16V DC，4...20mA HART：11,5...30V DC；PROFIBUS PA：9...24V DC，Ex ia：9...32V DC，基金会现场总线：9...32V DC
测量精度

0,2%，可选0,1%
长期稳定性

0,1% URL / 6个月
环境温度

-40...85℃
过程温度

-10...100℃
过程压力（绝压）/最大过压限定值

25bar
压力测量范围

100 mbar...10 bar
主要接液部件

哈C合金，316L
过程连接

螺纹，法兰 (DIN, ANSI, JIS)
最大测量距离

100m H2O
通信

三线制模拟量，两线制PFM信号，4...20 mA HART，PROFIBUS PA，基金会现场总线
证书和认证

ATEX、CSA、TIIS、WHG/溢出保护，船级认证
选项

数字显示，不锈钢外壳、铝外壳或聚酯外壳
替代产品

FMB70
应用限制

改变密度

显示更多
显示更少

文档/手册/软件

下载类型

过滤

Deltapilot S Pressure sensor with CONTITE measuring
Deltapilot S DB50(A), DB50L, DB50S, DB51(A), DB52(A), DB53(A), Pressure
sensor with CONTITE measuring cell

技术信息(TI)
Technical Information (Operating Instructions) Hydrostatic Level Measurement deltapilot S DB 50, DB 51, DB 52, DB 50 L, DB 53
Pressure sensors with CONTITE measuring cell
watertight, condensation-free, stable
For foodstuffs, water, wastewater,
chemicals
and pharmaceuticals

技术信息(TI)
Operating Instructions Electronic insert FEB 20 with INTENSOR Protocol / FEB 22 with HART Protocol
Pressure sensors with CONTITE measuring cell watertight, condensation-free, stable.
For foodstuffs, water, wastewater, chemicals
and pharmaceutical.

操作手册（BA）
Operating Instructions Deltapilot S Foundation Fieldbus Hydrostatic Level Measurement
Pressure sensors with CONTITE measuring cell watertight,
condensation-free, stable.
For foostuffs, water, wastewater, chemicals and
pharmaceuticals.

操作手册（BA）
Operating Instructions Deltapilot S PROFIBUS-PA Hydrostatic Level Measurement
Pressure sensors with CONTITE measuring cell watertight,
condensation-free, stable.
For foodstuffs, water, wastewater, chemicals
and pharmaceutical.

操作手册（BA）
Operating Instructions Electronic insert FEB 20 with INTENSOR Protocol / FEB 22 with HART Protocol
Pressure sensors with CONTITE measuring cell watertight,
condensation-free, stable.

For foodstuffs, water, wastewater, chemicals
and pharmaceutical.

操作手册（BA）
Operating Instructions Deltapilot S FEB 11/ FEB 17; FEB 11 P/ FEB 17 P.
Electronic insert.

Short Instruction (KA)

08/96

德语 , 英语 , 西班牙语 , French , 意大利语 , 荷兰语
Operating Instructions Deltapilot S.
Partial mounting of the housing.

Short Instruction (KA)

02/98

德语 , 英语 , 西班牙语 , French , 意大利语 , 荷兰语
Spare Part
de - Profildichtung für Universal-Prozessadapter

en - Profile seal for Universal Process Mounting Adapter

fr - Joint profilé pour adaptateur universel

Short Instruction (KA)

02/10

德语 , 英语 , French
Welded measuring cell Installation instruction
Deltapilot S

安装指南(EA)
Harting plug HAN7D Installation instruction
Cerabar M/S, Deltabar M/S, Deltapilot M/S

安装指南(EA)
Stainless steel housing F8 Installation instruction
Deltapilot S

安装指南(EA)
Pressure adapter Installation instruction
Deltapilot M, Deltapilot S, Waterpilot

安装指南(EA)
Safety Instructions Deltapilot S DB50, DB50L, DB51, DB52, DB53
PROFIBUS PA
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2134 (ATEX)

Ex 防爆说明(XA)
Deltapilot S DB50, DB50L, DB51, DB52, DB53
FOUNDATION Fieldbus
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2134 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Deltapilot S DB50, DB50L, DB51, DB52, DB53
PFM, 4...20 mA
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2094 (ATEX)

Ex 防爆说明(XA)
Deltapilot S DB50, DB50L, DB51, DB52, DB53
Approval No.: EG 02 004-a

ATEX II 3 G Protection: EEx nA II T6

PFM, 4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex 防爆说明(XA)
Deltapilot S DB50, DB50L, DB51, DB52
Z-65.11-128 (DIBt)

证书(ZE)
Deltapilot S DB50(L), DB51, DB52, FEB17(P), FMC470Z/671Z, FMX570, FMB672Z, SIF100/110, HTA470Z
Z-65.11-29 (DIBt)

证书(ZE)
Deltapilot S DB50, DB50L, DB51, DB52
Z-65.11-246 (DIBt)

证书(ZE)
Deltapilot S DB50, DB50L, DB51, DB52, DB53
FM

Drawing No.: 960373-1024 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

证书FM/CSA (ZD)
Deltapilot S DB50, DB50L, DB51, DB52, DB53
FM

Drawing No.: 960373-1021 B

Drawing Type: Control Drawing

PROFIBUS PA

证书FM/CSA (ZD)
Deltapilot S DB50, DB50L, DB51, DB52, DB53
CSA

Drawing No.: 960373-2021 B

Drawing Type: Control Drawing

PROFIBUS PA

证书FM/CSA (ZD)
Deltapilot S DB50, DB50L, DB51, DB52, DB53
CSA

Drawing No.: 960373-2024 A

Drawing Type: Control Drawing

FOUNDATION Fieldbus

证书FM/CSA (ZD)
Interoperability Statement: Deltapilot S, FOUNDATION fieldbus
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Deltapilot S, FOUNDATION fieldbus Level Transmitter, Device Revision: 1,
DD Revision: 2, Device ID: 0x100B, Software Revision: 1.0

特殊资料(SD)
Simatic PDM HART Package 1.14.00 Manufacturer Information includes PDM - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.14.00

生产商信息(MI)
PRM HART Package V1.08.00 Manufacturer Information includes PRM - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.08.00

生产商信息(MI)
AMS HART Package V1.12.00 Manufacturer Information includes AMS - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.12.00

生产商信息(MI)
Simatic PDM PROFIBUS Package V1.12.00 Manufacturer Information includes PDM - Device List, Release Notes – PROFIBUS
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.12.00

生产商信息(MI)
AMS FOUNDATION fieldbus Package V1.06.00 Manufacturer Information includes AMS - Device List, Release Notes – FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.06.00

生产商信息(MI)
PRM FOUNDATION fieldbus Package V1.05.00 Manufacturer Information includes PRM - Device List, Release Notes – FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.05.00

生产商信息(MI)
Juice application: Juice pasteuriser, Application 1
Meas. point 1: level measurement buffer tank
Application 1: Deltapilot S

行业解决方案(SO)

英语
Brewery application: CIP unit, Application 3
Meas. point 3: level measurement CIP-tank
Application 1: Deltapilot

行业解决方案(SO)

英语
Brewery application: Yeast propagation, Application 5
Meas. point 4: CO2 head pressure measurement

行业解决方案(SO)

英语
Dairy application: UHT unit, Application 1
Meas. point 1: level measurement buffer tank
Application 1: Deltapilot S

行业解决方案(SO)

英语
Dairy application: CIP unit, Application 3
Meas. point 3: level measurement CIP-tank
Application 1: Deltapilot

行业解决方案(SO)

英语
Brewery application: Bright beer buffer tanks, Application 3
Meas. point 3: level measurement at the bright beer tank
Application 1
Hydrostatic

行业解决方案(SO)

英语
Juice application: CIP unit, Application 3
Meas. point 3: level measurement CIP-tank
Application 1: Deltapilot

行业解决方案(SO)

英语
Brewery application: Fermentation and Maturation, Application 10
Meas. point 8: specific gravity at the fermentation tank
Application 1
Hydrostatic

行业解决方案(SO)

英语
Juice application: Mixing batch, Application 3
Meas. point 3: level measurement mixing tanks
Application 1: DeltapilotS

行业解决方案(SO)

英语
Dairy application: Milk storage, Application 1
Meas. point 1: level measurement raw milk storage tank
Application 1: Deltapilot S

行业解决方案(SO)

英语
Dairy application: Butter processing, Application 1
Meas. point 1: level measurement at the cream buffer tank
Application 1: Deltapilot S

行业解决方案(SO)

英语
Dairy application: Cheese processing, Application 1
Meas. point 1: level measurement at the milk buffer tank
Application 1: Deltapilot S

行业解决方案(SO)

英语
Brewery application: Fermentation and Maturation, Application 3
Meas. point 3: level measurement fermentation and maturation tanks
Application 1
Hydrostatic

行业解决方案(SO)

英语
Dairy application: Yoghurt processing, Application 1
Meas. point 1: level measurement at the yoghurt buffer tank
Application 1: Deltapilot S

行业解决方案(SO)

英语
Juice application: Concentrate storage, Application 4
Meas. point 3: level measurement concentrate tank
Application 1
Deltapilot S

行业解决方案(SO)

英语
Brewery application: Fermentation and Maturation, Application 5
Meas. point 4: CO2-head pressure measurement
Application 1
Hydrostatic

行业解决方案(SO)

英语
Brewery application: Bright beer buffer tanks, Application 6
Meas. point 4: CO2-head pressure measurement
Application 1
Hydrostatic

行业解决方案(SO)

英语
Brewery application: Brewhouse, Application 2
Meas. Point 2: level measurement mash and wort
Application 1: hydrostatic

行业解决方案(SO)

英语
Dairy application: Butter processing, Application 3
Meas. point 2: level measurement of culture
Application 1: Deltapilot S

行业解决方案(SO)

英语
Brewery application: Filtration and Stabilisation, Application 4
Meas. point 4: level measurement kieselgur dosing tank

行业解决方案(SO)

英语
Dairy application: Pasteurisation, Application 1
Meas. point 1: level measurement at the buffer tank
Application 1: Deltapilot S

行业解决方案(SO)

英语
Avoid a spill - add a tuning fork to your tank
Solutions for your process - Paring the Liquiphant M FTL50 and
Deltapilot DB50 in your measurement process reduces the potential for
lost production, overflow clean-up and fines.

竞争力手册(CP)

11/04

us
GSD Single, GSD_EH_PA_LE_Deltapilot_0x1503_V02_00_PALIB, 14.04.2014 (Leve l, Deltapilot S, 0x1503)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

2.00.00

Language neutral
GSD Single, GSD_EH_PA_LE_Deltapilot_0x1503_V01_00_PALIB, 14.04.2014 (Leve l, Deltapilot S, 0x1503)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

1.00.00

Language neutral
EDD Single, PDM_PA_LE_DeltapilotS_0x1503_0x02_0x01, 07.01.2019 (Level, Deltapilot S, 0x1503)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_LE_DeltapilotS_0x000B_0x02_0x02, 07.11.2018 (Level, Deltapilot S, 0x000B)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_LE_DeltapilotS_0x1503_0x03_0x01, 07.01.2019 (Level, Deltapilot S, 0x1503)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_LE_DeltapilotS_0x100Ba_0x01_0x01_ITK4_01, 10.11.2016 (L evel, Deltapilot S, 0x100B
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 4.01

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_LE_DeltapilotS_0x100Ba_0x01_0x02_ITK4_60, 10.11.2016 (L evel, Deltapilot S, 0x100B
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 4.60

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, DeltapilotS_FEB24_PA_V1_3, 20.10.2020 (Level, Deltapilot S, 0x1503)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, DeltapilotS_FEB24_PA_V2_0___V2_2, 20.10.2020 (Level, Deltapilot S, 0x1503)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, DeltapilotS_FEB24_PA_V1_0___V1_1, 20.10.2020 (Level, Deltapilot S, 0x1503)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, DeltapilotS_DB5x_V1_x, 23.10.2020 (Level, Deltapilot S, 0x000B)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, DeltapilotS_DB5x_V2_0, 23.10.2020 (Level, Deltapilot S, 0x000B)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
Faceplate Library, PRM_FF_Package_Level_1_05_00, 29.05.2018 (Level)
FOUNDATION Fieldbus H1,

Plant Resource Manager Version: R3.02, R3.12

Faceplate

1.05.00

Language neutral
Product Family: Deltapilot S
产品型号: DB51A-, DB51-, DB52-, DB53-, DB52A-, DB50A-, DB50L-, DB50S-, DB53A-, DB50-
地区/国家: International
认证机构: PNO, Profibus
软件版本号: PROFILE 3.0

Fieldbus Conformance

英语

显示更多
显示更少

附件/备件

???显示为PDF???

搜索

过滤

Order code

Specification

- Order code

  Phase out spares

  显示详细信息隐藏详细信息
- Order code

  10/2012

  显示详细信息隐藏详细信息
- Order code 52006263

  过程连接件|Socket for plug 4p-125V, 4A-M12

  M12 插头自连接 M12转成格兰

  显示详细信息隐藏详细信息
21
- Nr 21 Order code 52008495

  密封组件

  for cover

  显示详细信息隐藏详细信息
20
- Nr 20 Order code 52002593

  铝盖

  O-ring EPDM for Aluminium housing F6

  显示详细信息隐藏详细信息
- Nr 20 Order code 52002594

  塑盖

  O-ring VMQ for Polyester housing F10

  显示详细信息隐藏详细信息
- Order code 917755-0000

  Protection cover, PFA

  Usage: DB4x/DB5x, FMX165, FMX167/FMX21 42mm.

  显示详细信息隐藏详细信息
- Order code 52014047

  密封圈

  Process gasket for process connections G1-1/2

  显示详细信息隐藏详细信息
- Order code 52024469

  过程连接件|Weld-in G1-1/2, 316L

  mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Correct installation only with dummy

  显示详细信息隐藏详细信息
- Order code 52024470

  焊座

  mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Inspection cert. EN10204-3.1 material

  显示详细信息隐藏详细信息
- Order code Info_01002

  显示详细信息隐藏详细信息
- Order code Info_01003

  显示详细信息隐藏详细信息
- Order code Info_01005

  显示详细信息隐藏详细信息

显示更多
显示更少

老产品
- DB40F
- DB41F
- DB42F
- DB43C
- DB32
- DB40RL
- DB40G
- DB41G
- DB42G

替代产品

F

L

E

X

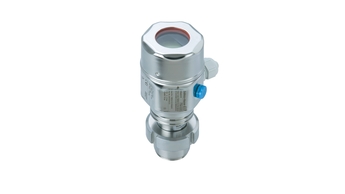

Deltapilot M FMB50

静压式液位计采用压敏元件CONTITE，测量敞开式或封闭式容器中液体或浆料介质的液位，测量不受泡沫影响
更多信息

价格核算中…

暂时无价格信息

登录后显示价格

from CHF 803.-
F

L

E

X

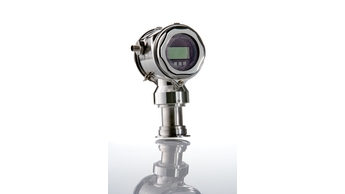

Deltapilot S FMB70

Deltapilot FMB70静压式液位计采用Cintite压力测量元件，测量敞开式或封闭式容器中液体或浆料介质的液位，测量不受泡沫影响，紧凑型结构。
更多信息

价格核算中…

暂时无价格信息

登录后显示价格

from CHF 803.-

简易产品
轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

什么是FLEX产品选型

标准产品
测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

什么是FLEX产品选型

高端产品
功能丰富，适用范围广

仪表技术性能

选型便捷程度

什么是FLEX产品选型

定制产品
专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

什么是FLEX产品选型

FLEX产品选型	仪表技术性能	选型便捷程度
F L E X Fundamental选型完美胜任基本测量任务	仪表技术性能	选型便捷程度
F L E X Lean选型轻松应对关键工艺的测量挑战	仪表技术性能	选型便捷程度
F L E X Extended选型创新技术助力工艺流程优化	仪表技术性能	选型便捷程度
F L E X Xpert选型满足严苛工况的特殊测量要求	仪表技术性能	选型便捷程度特殊选型

获取FLEX产品选型的详细信息

Deltapilot S DB50

特征和规格

Details

测量原理

特点

供电电压

参考测量精度

长期稳定性

过程温度

环境温度

传感器

最大量程比

最大过压限定值

过程连接

通信

证书和认证

替代产品

测量原理

特点/应用

电源/通信

测量精度

长期稳定性

环境温度

过程温度

过程压力（绝压）/最大过压限定值

压力测量范围

主要接液部件

过程连接

最大测量距离

通信

证书和认证

选项

替代产品

应用限制

文档/手册/软件

附件/备件

老产品

替代产品

Deltapilot M FMB50

Deltapilot S FMB70
