Proline Promass F 500
科里奥利质量流量计

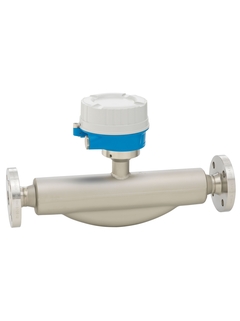

科里奥利质量流量计 - Proline Promass F 500 ©Endress+Hauser

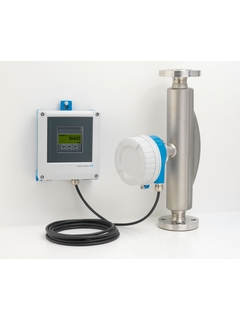

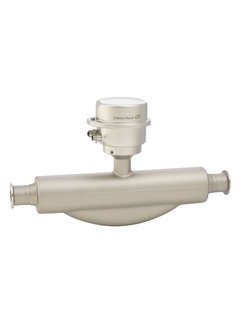

Proline Promass F 500,适用于食品与饮料以及生命科学行业 ©Endress+Hauser

Proline Promass F 500,适用于食品与饮料以及生命科学行业

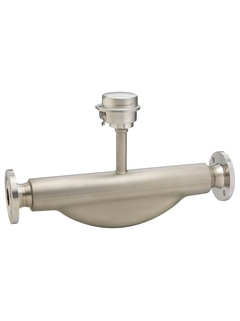

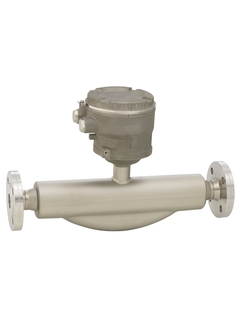

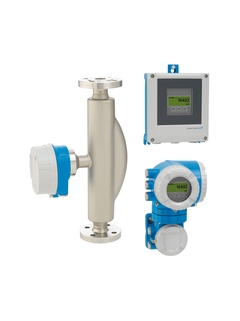

Proline Promass F 500,适用于化工行业 ©Endress+Hauser

Proline Promass F 500,适用于化工行业

Proline Promass F 500,适用于化工行业 ©Endress+Hauser

Proline Promass F 500,适用于化工行业

Proline Promass F 500,适用于化工行业 ©Endress+Hauser

Proline Promass F 500,适用于化工行业

科里奥利力流量测量原理

Premium高精度流量计,坚固耐用,搭配最多带4路输入/输出的分体式变送器

Promass F是经验证的高精度传感器。不受波动和恶劣环境的影响,应用广泛。与创新的分体式变送器配套使用,在苛刻工况条件下Promass F 500仍具有最大安装灵活性和最高操作安全性。Heartbeat Technology(心跳技术)确保始终合规,保证过程安全。

  • 优势

    • 最高过程安全性:不受波动和恶劣工况的影响

    • 较少过程测量点:多参数测量(流量、密度、温度)

    • 节省安装空间:无前/后直管段长度要求

    • 完整查看过程信息和诊断信息:提供多种用户自定义输入/输出组合方式和现场总线

    • 降低复杂性和多样性:用户自定义输入/输出功能

    • 自带验证功能:内置Heartbeat Technology (心跳技术)

  • 应用领域

    • 测量原理不受流体物理特性的影响(例如:粘度和密度)。

    • 在变化的苛刻工况条件下进行液体和气体测量,具有最高测量性能。

    仪表特点

    • 质量流量测量误差:±0.05 % (PremiumCal)

    • 介质温度:-196...350 °C (-320...662 °F)

    • 标称口径:DN 8...250 (3/8...10")

    • 分体式仪表,最多带4路输入/输出

    • 背光显示、触摸键控制和WLAN访问

    • 传感器和变送器通过标准电缆连接

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Premium高精度流量计,坚固耐用,搭配最多带4路输入/输出的分体式变送器。在变化的苛刻工况条件下进行液体和气体测量,具有最高测量性能。

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Premium高精度流量计,坚固耐用,搭配最多带4路输入/输出的分体式变送器。在变化的苛刻工况条件下进行液体和气体测量,具有最高测量性能。

  • 传感器特点

    最高过程安全性:不受波动和严苛工况的影响。更少的过程测量点:多变量测量(流量、密度、温度)。所需安装空间小:无前后直管段长度要求。质量流量测量误差:±0.05 %(PremiumCal)。介质温度:-196...350 °C (-320...662 °F)。

  • 变送器特点

    提供完整的过程信息和诊断信息:多种用户自行组合的I/O接口和现场总线。降低复杂性和多样性:允许用户自定义输入/输出功能。自校验:Heartbeat Technology(心跳技术)。分体式仪表,最多带4路输入/输出。背光显示,触摸键操作和WLAN访问。

  • 公称口径范围

    DN 8...250 (⅜...10")

  • 接液部件材质

    测量管:1.4539 (904L)、1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金
    连接部分:1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金、1.4301 (F304)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量(液体):±0.10 %(标准)、0.05 %(可选)
    体积流量(液体):±0.10 %
    质量流量(气体):±0.35 %
    密度(液体):±0.0005 g/cm³

  • 测量范围

    0...2 200 000 kg/h (0...80 840 lb/min)

  • 最大过程压力

    PN 100,Cl. 600,63K

  • 介质温度范围

    标准型:–50...+150 °C (–58…+302 °F)
    可选:–50...+240 °C (–58…+464 °F)
    高温型:–50...+350 °C (–58…+662 °F)
    可选:–196...+150 °C (–320...+302 °F)

  • 环境温度范围

    标准:–40...+60 °C (–40...+140 °F)
    可选:–60...+60 °C (–76...+140 °F)

  • 传感器外壳材质

    标准:1.4301 (304),耐腐蚀
    可选:1.4404 (316L)
    传感器接线盒(标准):铝合金AlSi10Mg涂层
    传感器接线盒(可选):1.4301 (304)、1.4404 (316L)、1.4409 (CF3M),类同于316L

  • 变送器外壳材质

    铝合金AlSi10Mg涂层;1.4409 (CF3M),类同于316L;聚碳酸酯

  • 防护等级

    分体式传感器(标准):IP66/67,Type 4X
    分体式传感器(可选):IP69。

    分体式变送器:IP66/67, Type 4X

  • 显示/操作

    四行背光显示,触摸键操作(外部操作)
    通过现场显示单元和调试软件设置

  • 输出

    4路输出:
    4...20 mA HART(有源/无源)
    4...20 mA WirelessHART
    4...20 mA(有源/无源)
    脉冲/频率/开关量输出(有源/无源)
    双脉冲输出(有源/无源)
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC(非危险区)

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定(符合ISO/IEC 17025标准)
    Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)
    MI-005非水液体(碳水化合物、低温液体)
    NTEP(非水液体、LPG、低温液体)

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, LH/BV approval

  • 压力认证和证书

    PED、CRN、AD 2000

  • 材料证书

    3.1材料证书
    NACE MR0175/MR0103,PMI,焊接测试遵循EN ISO、ASME、NORSOK标准

  • 卫生型认证和证书

    3-A、EHEDG

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Premium高精度流量计,坚固耐用,搭配最多带4路输入/输出的分体式变送器。在变化的苛刻工况条件下进行液体和气体测量,具有最高测量性能。

  • 传感器特点

    最高过程安全性:不受波动和严苛工况的影响更少的过程测量点:多变量测量(流量、密度、温度)所需安装空间小:无前后直管段长度要求质量流量测量误差:±0.05 %(PremiumCal)介质温度:-196...350 °C (-320...662 °F)

  • 变送器特点

    提供完整的过程信息和诊断信息:多种用户自行组合的I/O接口和现场总线。降低复杂性和多样性:允许用户自定义输入/输出功能。自校验:Heartbeat Technology(心跳技术)。分体式仪表,最多带4路输入/输出。背光显示,触摸键操作和WLAN访问。

  • 公称口径范围

    DN 8...250 (⅜...10")

  • 接液部件材质

    测量管:1.4539 (904L)、1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金
    连接部分:1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金、1.4301 (F304)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量(液体):±0.10 %(标准)、0.05 %(可选)
    体积流量(液体):±0.10 %
    质量流量(气体):±0.35 %
    密度(液体):±0.0005 g/cm³

  • 测量范围

    0...2 200 000 kg/h (0...80 840 lb/min)

  • 最大过程压力

    PN 100,Cl. 600,63K

  • 介质温度范围

    标准型:–50...+150 °C (–58…+302 °F)
    可选:–50...+240 °C (–58…+464 °F)
    高温型:–50...+350 °C (–58…+662 °F)
    可选:–196...+150 °C (–320...+302 °F)

  • 环境温度范围

    标准:–40...+60 °C (–40...+140 °F)
    可选:–60...+60 °C (–76...+140 °F)

  • 传感器外壳材质

    标准:1.4301 (304),耐腐蚀
    可选:1.4404 (316L)
    传感器接线盒(标准):铝合金AlSi10Mg涂层
    传感器接线盒(可选):1.4301 (304)、1.4404 (316L)、1.4409 (CF3M),类同于316L

  • 变送器外壳材质

    铝合金AlSi10Mg涂层;1.4409 (CF3M),类同于316L;聚碳酸酯

  • 防护等级

    分体式传感器(标准):IP66/67,Type 4X
    分体式传感器(可选):IP69。

    分体式变送器:IP66/67,Type 4X
    外接WLAN天线:IP67

  • 显示/操作

    四行背光显示,触摸键操作(外部操作)
    通过现场显示单元和调试软件设置

  • 输出

    4路输出:
    4...20 mA HART(有源/无源)
    4...20 mA WirelessHART
    4...20 mA(有源/无源)
    脉冲/频率/开关量输出(有源/无源)
    双脉冲输出(有源/无源)
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC(非危险区)

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定(符合ISO/IEC 17025标准)
    Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)
    MI-005非水液体(碳水化合物、低温液体)
    NTEP(非水液体、LPG、低温液体)

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, LH/BV approval

  • 压力认证和证书

    PED、CRN、AD 2000

  • 材料证书

    3.1材料证书
    NACE MR0175/MR0103,PMI,焊接测试遵循EN ISO、ASME、NORSOK标准

  • 卫生型认证和证书

    3-A、EHEDG

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Flowmeter with premium accuracy and robustness, as remote version with up to 4 I/Os. Highest measurement performance for liquids and gases under varying, demanding process conditions.

  • 传感器特点

    Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. Mass flow: measurement error ±0.05 % (PremiumCal). Medium temperature: -196 to 350 °C (-320 to 662 °F).

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access.

  • 公称口径范围

    DN 8 to 250 (⅜ to 10")

  • 接液部件材质

    Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
    Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • 最大测量误差

    Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
    Volume flow (liquid): ±0.10 %
    Mass flow (gas): ±0.35 %
    Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 2 200 000 kg/h (0 to 80 840 lb/min)

  • 最大过程压力

    PN 100, Class 600, 63K

  • 介质温度范围

    Standard: –50 to +150 °C (–58…+302 °F)
    Option: –50 to +240 °C (–58…+464 °F)
    High temperatur option: –50 to +350 °C (–58…+662 °F)
    Option: –196 to +150 °C (–320 to +302 °F)

  • 环境温度范围

    Standard: –40 to +60 °C (–40 to +140 °F)
    Option: –60 to +60 °C (–76 to +140 °F)

  • 传感器外壳材质

    Standard: 1.4301 (304), corrosion resistant
    Option: 1.4404 (316L)
    Sensor connection housing (standard): AlSi10Mg, coated
    Sensor connection housing (option): 1.4301 (304); 1.4404 (316L); 1.4409 (CF3M) similar to 316L

  • 变送器外壳材质

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • 防护等级

    Sensor remote version (standard): IP66/67, type 4X enclosure
    Sensor remote version (option): IP69.
    Transmitter remote version: IP66/67, Type 4X enclosure

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible

  • 输出

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • 输入

    Status input
    4-20 mA input

  • 数字通信

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • 电源

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • 防爆认证

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

  • 产品安全性

    CE, C-tick, EAC marking

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)
    MI-005 (Liquids other than water (Hydrocarbons, LPG, cryogenic liquids)
    NTEP (Liquids other than water, LPG, cryogenic liquids)
    MC (Liquids other than water, cryogenic liquids)

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, LH/BV approval

  • 压力认证和证书

    PED, CRN, AD 2000

  • 材料证书

    3.1 material
    NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK

  • 卫生型认证和证书

    3-A, EHEDG, cGMP

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Premium高精度流量计,坚固耐用,搭配最多带4路输入/输出的分体式变送器。在变化的苛刻工况条件下进行液体和气体测量,具有最高测量性能。

  • 传感器特点

    最高过程安全性:不受波动和严苛工况的影响。更少的过程测量点:多变量测量(流量、密度、温度)。所需安装空间小:无前后直管段长度要求。质量流量测量误差:±0.05 %(PremiumCal)。介质温度:-196...350 °C (-320...662 °F)。

  • 变送器特点

    提供完整的过程信息和诊断信息:多种用户自行组合的I/O接口和现场总线。降低了复杂性和可变性:用户自定义I/O接口。自校验:Heartbeat Technology(心跳技术)。分体式仪表,最多带4路输入/输出。背光显示,按键操作和WLAN访问。

  • 公称口径范围

    DN 8...250 (⅜...10")

  • 接液部件材质

    测量管:1.4539 (904L)、1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金
    连接部分:1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金、1.4301 (F304)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量(液体):±0.10 %(标准)、0.05 %(可选)
    体积流量(液体):±0.10 %
    质量流量(气体):±0.35 %
    密度(液体):±0.0005 g/cm³

  • 测量范围

    0...2 200 000 kg/h (0...80 840 lb/min)

  • 最大过程压力

    PN 100,Cl. 600,63K

  • 介质温度范围

    标准型:–50...+150 °C (–58…+302 °F)
    可选:–50...+240 °C (–58…+464 °F)
    高温型:–50...+350 °C (–58…+662 °F)
    可选:–196...+150 °C (–320...+302 °F)

  • 环境温度范围

    标准:–40...+60 °C (–40...+140 °F)
    可选:–60...+60 °C (–76...+140 °F)

  • 传感器外壳材质

    标准:1.4301 (304),耐腐蚀
    可选:1.4404 (316L)
    传感器接线盒(标准):铝合金AlSi10Mg涂层
    传感器接线盒(可选):1.4301 (304)、1.4404 (316L)、1.4409 (CF3M),类同于316L

  • 变送器外壳材质

    铝合金AlSi10Mg涂层;1.4409 (CF3M),类同于316L;聚碳酸酯

  • 防护等级

    分体式传感器(标准):IP66/67,Type 4X
    分体式传感器(可选):IP69。

    分体式变送器:IP66/67,Type 4X
    外接WLAN天线:IP67

  • 显示/操作

    四行背光显示,触摸键操作(外部操作)
    通过现场显示单元和调试软件设置

  • 输出

    4路输出:
    4...20 mA HART(有源/无源)
    4...20 mA WirelessHART
    4...20 mA(有源/无源)
    脉冲/频率/开关量输出(有源/无源)
    双脉冲输出(有源/无源)
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC(非危险区)

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定(符合ISO/IEC 17025标准)
    Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)
    MI-005非水液体(碳水化合物、低温液体)
    NTEP(非水液体、LPG、低温液体)

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, LH/BV approval

  • 压力认证和证书

    PED、CRN、AD 2000

  • 材料证书

    3.1材料证书
    NACE MR0175/MR0103,PMI,焊接测试遵循EN ISO、ASME、NORSOK标准

  • 卫生型认证和证书

    cGMP

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 31
  • 47
  • 36
  • 39
    • Nr 39 Order code 71185788

      T-DAT promass 100,Promag100/400( C )

      Usage: Promag/Promass 100/300/500, 500 digital, Prosonic Flow E 100, Promag 400(C). (C) = generation index C.

  • 33
  • 37
    • Nr 37 Order code 71323010

      模块盒, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 34
  • 46
  • 45
    • Nr 45 Order code 71323075

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323076

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

  • 35
  • 45
    • Nr 45 Order code 71327819

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

  • 50
  • 45
    • Nr 45 Order code 71323077

      接线端子组件

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

    • Nr 45 Order code 71323078

      接线端子组件

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option B = EtherNet, PROFINET. Consists of: 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

    • Nr 45 Order code 71327820

      接线端子组件

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

  • 44
  • 20
    • Nr 20 Order code 71323016

      盖组件

      Usage: Promag/Promass 300, transmitter housing Alu, Non-haz. Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323017

      盖组件

      Usage: Promass 300, transmitter housing Alu, Non-haz. Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323017

      盖组件

      Usage: Promass 300, transmitter housing Alu, Non-haz. Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323020

      铝盖组件 玻璃视窗

      Usage: Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323021

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323021

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323024

      盖组件

      Usage: Promag/Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323025

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323025

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 70
    • Nr 70 Order code 71323026

      盖组件

      Usage: Promag/Promass 300/500, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

    • Nr 70 Order code 71323027

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 70 Order code 71323027

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323032

      盖组件

      Usage: Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323033

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 22 Order code 71323033

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 22 Order code 71323034

      盖组件

      Usage: Promag/Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323035

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 22 Order code 71323035

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323036

      盖组件

      Usage: Promag/Promass 300/500, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 74 Order code 71323037

      盖组件

      Usage: Promag 500, Promass 300/500, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 23
    • Nr 23 Order code 71323038

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323039

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

    • Nr 23 Order code 71323039

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

    • Nr 23 Order code 71323040

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323041

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

    • Nr 23 Order code 71323041

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 75
    • Nr 75 Order code 71323042

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: 10x O-Ring 88,50x3,53 HNBR.

    • Nr 75 Order code 71323043

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

    • Nr 75 Order code 71323043

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71384170

      Kit cover, alu,Promag 400(C),500 digital

      Usage: Promag 400(C) = generation index C, Promag/Promass 500 digital, transmitter housing Alu. Consists of: cover Alu complete included O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150.

    • Nr 20 Order code 71408508

      Kit cover, polycarb., 500 digital

      Usage: Promag/Promass 500 digital, transmitter housing polycarbonate. Consists of: Cover polycarbonate complete, O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150.

  • 70
    • Nr 70 Order code 71278078

      盖密封圈组件

      Usage: Promag 400(C) = generation index C, Promag/Promass 500 digital, transmitter housing Alu, Ex. Consists of: 10x O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF.

    • Nr 70 Order code 71278077

      盖密封圈组件

      Usage: Promag 400(C), 500 digital with polycarbonate housing. (C) = generation index C. Consists of: 10x O-Ring 196,44x3,53 VMQ.

  • 24
    • Nr 24 Order code 71228796

      盖组件

      Usage: Promag 400(C) = generation index C, Promag 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 HNBR.

    • Nr 24 Order code 71323050

      盖组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 FVMQ, -50oC/-58oF.

    • Nr 24 Order code 71323050

      盖组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 FVMQ, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71323051

      外壳密封圈组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: O-Ring 113,90x3,53 HNBR for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323052

      外壳密封圈组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: O-Ring 113,90x3,53 FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

    • Nr 73 Order code 71323052

      外壳密封圈组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: O-Ring 113,90x3,53 FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 24
    • Nr 24 Order code 71323053

      盖组件

      Usage: Promass 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket EPDM for cover.

    • Nr 24 Order code 71323054

      盖组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket FVMQ for cover, -50oC/-58oF.

    • Nr 24 Order code 71323054

      盖组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket FVMQ for cover, -50oC/-58oF.

    • Nr 24 Order code 71323055

      盖组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4404, gasket EPDM for cover.

    • Nr 24 Order code 71323056

      盖组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4404, gasket FVMQ for cover, -50oC/-58oF.

    • Nr 24 Order code 71323056

      盖组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4404, gasket FVMQ for cover, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71323057

      外壳密封圈组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: gasket EPDM for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323058

      外壳密封圈组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: gasket FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

    • Nr 73 Order code 71323058

      外壳密封圈组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: gasket FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 24
    • Nr 24 Order code 71185793

      铝盖

      Usage: Promag/Promass 100, Promag/Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket EPDM for cover.

    • Nr 24 Order code 71323060

      盖组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket FVMQ for cover, -50oC/-58oF.

    • Nr 24 Order code 71323060

      盖组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket FVMQ for cover, -50oC/-58oF.

    • Nr 24 Order code 71185794

      铝盖

      Usage: Promass 100, Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4404, gasket EPDM for cover.

    • Nr 24 Order code 71323061

      盖组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4404, gasket FVMQ for cover, -50oC/-58oF.

    • Nr 24 Order code 71323061

      盖组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4404, gasket FVMQ for cover, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71185799

      密封圈

      Usage: Promass 100, Promass 500 digital, sensor connection housing. Consists of: gasket EPDM for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323062

      外壳密封圈组件

      Usage: Promass 500 digital, sensor connection housing stainless. Consists of: gasket FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

    • Nr 73 Order code 71323062

      外壳密封圈组件

      Usage: Promass 500 digital, sensor connection housing stainless. Consists of: gasket FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 24
    • Nr 24 Order code 71323063

      盖组件

      Usage: Promag/Promass 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover cast, O-Ring 120,2x3,53 HNBR.

    • Nr 24 Order code 71323064

      盖组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 24 Order code 71323064

      盖组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71323065

      外壳密封圈组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: O-Ring 120,2x3,53 HNBR for cover, O-Ring 88,50x3,53HNBR for housing/sensor

    • Nr 73 Order code 71323066

      外壳密封圈组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: O-Ring 120,2x3,53 FVMQ for cover, -50oC/-58oF, O-Ring 88,50x3,53 FVMQ for hous./sensor, -50oC/-58oF.

    • Nr 73 Order code 71323066

      外壳密封圈组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: O-Ring 120,2x3,53 FVMQ for cover, -50oC/-58oF, O-Ring 88,50x3,53 FVMQ for hous./sensor, -50oC/-58oF.

  • 71
    • Nr 71 Order code 71323071

      界面密封圈组件

      Usage: transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface.

    • Nr 71 Order code 71323072

      界面密封圈组件

      Usage: transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

    • Nr 71 Order code 71323072

      界面密封圈组件

      Usage: transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

  • 11
    • Nr 11 Order code 71323081

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 13
    • Nr 13 Order code 71276494

      卡箍紧固,螺丝

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Sensor housing: Promag 400(C), (C) = generation index C, Promag/Promass 500, Promag/Promass 500 digital. Consists of: cover clamp, screw M4x16.

  • 82
    • Nr 82 Order code 71228792

      显示防护组件

      Usage: Promag 400(C) = generation index C, Promag/Promass 500 digital, transmitter housing. Consists of: display protection 1.4301, installation material.

  • 87
    • Nr 87 Order code 71343504

      防护外壳组件

      Usage: Promag/Promass 500 digital, transmitter housing. Consists of: weather protection cover 4404.

    • Nr 87 Order code 71343505

      防护外壳组件

      Usage: Promag/Promass 300/500, transmitter housing. Consists of: weather protection cover 4404, installation material.
