Deltatop DO61W

此产品现已不再销售。

想要查看新产品,请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    差压

  • 产品标题

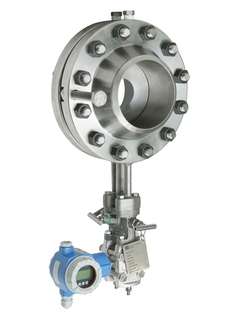

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice flange union with flange taps.

  • 传感器特点

    Internationally standardized ISO5167-2.

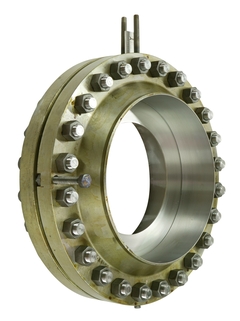

    Including orifice flanges.

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 25...500

    1" ... 24"

  • 最大测量误差

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • 测量范围

    2.5 ... 50'000 m3/h

    12.5 ... 250'000 kg/h at 10bar/230°C

  • 最大过程压力

    PN10 ... 160

    Cl.300 ... 2500

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • 测量原理

    差压

  • 产品标题

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice flange union with flange taps.

  • 传感器特点

    Internationally standardized ISO5167-2.

    Including orifice flanges.

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 25...500

    1" ... 24"

  • 最大测量误差

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration."

    Uncertainty of primary element excluding uncertainty of density or compensation."

  • 测量范围

    2.5 ... 50'000m3/h

  • 最大过程压力

    PN10 ... 160

    Cl.300 ... 2500

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • 测量原理

    差压

  • 产品标题

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice flange union with flange taps.

  • 传感器特点

    Internationally standardized ISO5167-2.

    Including orifice flanges.

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 25...500

    1" ... 24"

  • 最大测量误差

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

  • 测量范围

    0.1 ... 5'500m3/h

  • 最大过程压力

    PN10 ... 160

    Cl.300 ... 2500

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code 71071897

      安装螺栓

      Consists of: 4x screw, length 1-3/4", steel. 2x seal FKM Viton. Usage: manifold, milled. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071899

      安装螺栓

      Consists of: 4x screw, length 1-3/4", steel. 2x seal PTFE. Usage: manifold, milled. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071900

      Screw set UNF7/16x2-1/4", steel, Viton

      Consists of: 4x screw, length 2-1/4", steel. 2x seal FKM Viton. Usage: manifold, forging. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071901

      安装螺栓

      Consists of: 4x screw, length 2-1/4", steel. 2x seal PTFE. Usage: manifold, forging. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285305

      安装螺栓

      Consists of: 4x screw, length 1-3/4", VA. 2x seal FKM Viton. Usage: manifold, milled. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285307

      安装螺栓

      Consists of: 4x screw, length 1-3/4", VA. 2x seal PTFE. Usage: manifold, milled. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285308

      安装螺栓

      Consists of: 4x screw, length 2-1/4", VA. 2x seal FKM Viton. Usage: manifold, forging. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285310

      安装螺栓

      Consists of: 4x screw, length 2-1/4", VA. 2x seal PTFE. Usage: manifold, forging. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.
