微波流量指示器

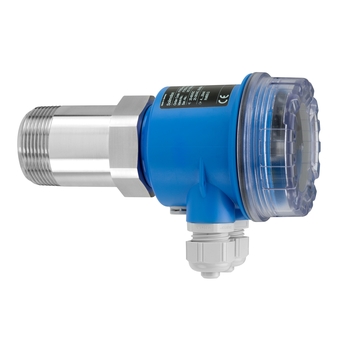

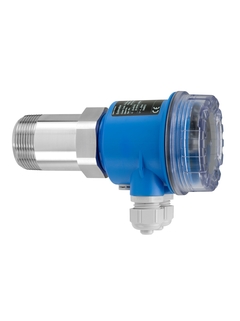

Solimotion FTR20

©Endress+Hauser

可用于监测颗粒固体的气动与机械运输过程。

Solimotion FTR20固体颗粒流量指示器是基于微波技术的非接触式测量仪表,尤其适用于监测(实时或非实时)质量流量,经济实用。一体化结构,用于监测颗粒固体的运输过程,性价比高。通过设置功能(例如自动校准)根据应用工况进行分别调整。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 一体化仪表:将传感器、变送器与供电单元安装于同一外壳内,安装方便。

    • 用于监测散体颗粒固体的质量流量(实时或非实时),性价比高。

    • 非接触式,齐平式式安装。

    • 使用 R 1½或1½ NPT螺纹或安装支架,安装方便。

    • 电子外壳可360°旋转,可在安装后将设备调至最佳位置。

    • 机械部分坚固:无磨损;接液部分可选陶瓷膜片;使用寿命长;免维护。

    • 质量流量信号

  • 应用领域

    典型适用范围或颗粒固体包括:

    • 建材行业:水泥、灰泥、木屑等

    • 化工行业:肥料、塑料粉末与颗粒、硅土等

    • 食品行业:咖啡、茶叶、烟草、谷物、麦芽、动物饲料等

    • 能源生产行业:煤炭、碳尘、粉煤灰、焦炭等

特征和规格

返回

Details

  • 测量原理

    微波安全栅

  • 特点/应用

    固体散料的流量指示仪,非接触式设备,采用微波技术。特别适用于监测气动和机械运输固体散料传输过程。

  • 环境温度

    -40...+70°C
    (-40...158°F)

  • 过程温度

    标准:
    -40... +70°C
    (-40...158°F)


    使用减温转接头:
    -40...+450°C
    -40...+842°F)

  • 过程压力(绝压)/最大过压限定值

    标准:0.5...6.8 bar abs
    (7.2...98.6 psi abs)


    使用减温转接头:
    0.8...5.1 bar abs
    (11.6...74 psi abs)

  • 主要接液部件

    316Ti/1.4571
    传感器隔膜:PTFE或陶瓷

  • 过程连接

    螺纹R 1½(EN 10226)
    NPT 1½(ASME B1.20.1)

  • 通信

    继电器SPDT
    4...20 mA模拟量
    固态继电器

  • 证书和认证

    ATEX、CSA C/US、IEC Ex

  • 设计认证

    EN10204-3.1

  • 选项

    减温转接头

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code 71125447

      电子插件

      Electronic module FTR20. Non-hazardous area, 4-20mA, AC version. Usage: FTR20.

    • Order code 71125449

      电子插件

      Electronic module FTR20. Non-hazardous area, 4-20mA, DC version. Usage: FTR20.

    • Order code 71125450

      电子插件

      Electronic module FTR20. Non-hazardous area, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71125451

      电子插件

      Electronic module receiver. Non-hazardous area, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71125454

      电子插件

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FTR20.

    • Order code 71125455

      电子插件

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FTR20.

    • Order code 71125456

      电子插件

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71125457

      电子插件

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71125460

      电子插件

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FTR20.

    • Order code 71125461

      电子插件

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FTR20.

    • Order code 71125462

      电子插件

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71125463

      电子插件

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71258332

      电子插件

      Electronics FTR20. CSA General Purpose, relay, AC version. Usage: FTR20.

    • Order code 71258333

      电子插件

      Electronics FTR20. CSA General Purpose, relay, DC version. Usage: FTR20.

    • Order code 71258334

      电子插件

      Electronics FTR20. CSA General Purpose, 4-20mA, AC version. Usage: FTR20.

    • Order code 71258335

      电子插件

      Electronics FTR20. CSA General Purpose, 4-20mA, DC version. Usage: FTR20.

    • Order code 71258336

      电子插件

      Electronics FTR20. CSA General Purpose, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71258337

      电子插件

      Electronics receiver. CSA General Purpose, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71258338

      电子插件

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, relay, AC version. Usage: FTR20.

    • Order code 71258339

      电子插件

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, relay, DC version. Usage: FTR20.

    • Order code 71258340

      电子插件

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, 4-20mA, AC version. Usage: FTR20.

    • Order code 71258341

      电子插件

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, 4-20mA, DC version. Usage: FTR20.

    • Order code 71258342

      电子插件

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71258344

      电子插件

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71324391

      Electronic insert F-AA1A, FTR20, V2

      Electronic module FTR20. Non-hazardous area, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324392

      Electronic insert F-AA1E, FTR20, V2

      Electronic module FTR20. Non-hazardous area, relay, DC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324394

      Electronic insert F-AA1A, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, relay, AC version. Usage: FTR20.

    • Order code 71324418

      Electronic insert F-AA1E, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, relay, DC version. Usage: FTR20.

    • Order code 71324420

      Electronic insert F-AA2A, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, 4-20mA, AC version. Usage: FTR20.

    • Order code 71324423

      Electronic insert F-AA2E, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, 4-20mA, DC version. Usage: FTR20.

    • Order code 71324425

      Electronic insert F-AA3A, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71324426

      Electronic insert F-AA3E, FTR20 (F34)

      Electronic module receiver. Non-hazardous area, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71324427

      Electronic insert F-BA1A, FTR20, V2

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324428

      Electronic insert F-BA1E, FTR20, V2

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324429

      Electronic insert F-BA1A, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, AC version. Usage: FTR20.

    • Order code 71324431

      Electronic insert F-BA1E, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, DC version. Usage: FTR20.

    • Order code 71324433

      Electronic insert F-BA2A, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FTR20.

    • Order code 71324436

      Electronic insert F-BA2E, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FTR20.

    • Order code 71324442

      Electronic insert F-BA3A, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, Solid-state-relay, AC version. Usage: FTR20.

    • Order code 71324444

      Electronic insert F-BA3E, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, Solid-state-relay, DC version. Usage: FTR20.

    • Order code 71324447

      Electronic insert F-IA1A, FTR20, V2

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324466

      Electronic insert F-IA1E, FTR20, V2

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324468

      Electronic insert F-IA1A, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, AC version. Usage: FTR20.

    • Order code 71324470

      Electronic insert F-IA1E, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, DC version. Usage: FTR20.

    • Order code 71324471

      Electronic insert F-IA2A, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FTR20.

    • Order code 71324473

      Electronic insert F-IA2E, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FTR20.

    • Order code 71324476

      Electronic insert F-IA3A, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, Solid-state-relay, AC version. Usage: FTR20.

    • Order code 71324477

      Electronic insert F-IA3E, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, Solid-state-relay, DC version. Usage: FTR20.

    • Order code 71113441

      HT-adapter R1-1/2 + Rp1-1/2, 316Ti 适用型号:

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113449

      HT-adapter NPT1-1/2, 316Ti 适用型号: FDR50,

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113450

      延长 225mm, HT-adapter R1-1/2 + 适用型号: FDR5

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113451

      延长 325mm, HT-adapter R1-1/2 + 适用型号: FDR5

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113452

      延长 525mm, HT-adapter R1-1/2 + 适用型号: FDR5

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113453

      延长 225mm, HT-Adapter NPT1-1/2 适用型号: FDR5

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113454

      延长 325mm, HT-adapter NPT1-1/2 适用型号: FDR5

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113455

      延长 525mm, HT-adapter NPT1-1/2 适用型号: FDR5

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017501

      FQR5x/FDR5x 支架, 铝 适用型号: FDR50, FDR56/FDR

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017502

      FQR5x/FDR5x 支架, 塑料 适用型号: FDR50, FDR56/FD

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006345

      法兰 DN40 PN6, Rp1-1/2, Alu Hole circle: 1

      Hole circle: 100mm. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006346

      法兰 1-1/2" 150lbs, NPT1-1/2, Alu Hole cir

      Hole circle: 98.6mm. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006348

      法兰 DN40 PN40, Rp1-1/2, 316Ti EN1092-1, A

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006349

      法兰 1-1/2" Cl.150, NPT1-1/2, 316Ti ASME B

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006350

      法兰 DN50 PN16, Rp1-1/2, 316Ti EN1092-1, A

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006351

      法兰 NPS 2" Cl.150, NPT1-1/2, 316Ti ASME B

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006352

      法兰 DN100 PN16, Rp1-1/2, 316Ti EN1092-1,

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006353

      法兰 NPS 4" CL.150, NPT1-1/2, 316Ti ASME B

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026443

      焊接式装配 DN50, 200oC Screw assembling.材质: 3

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026444

      焊接式装配 DN80, 200oC Screw assembling.材质: 3

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026445

      焊接式装配 DN100, 200oC Screw assembling.材质:

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026446

      焊接式装配 DN50, 10bar, 200oC Screw assemblin

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026447

      焊接式装配 DN80, 10bar, 200oC Screw assemblin

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026448

      焊接式装配 DN100, 10bar, 200oC Screw assembli

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026449

      法兰式装配 DIN/EN DN50, 25bar,200oC Screw ass

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026450

      法兰式装配 DIN/EN DN80, 25bar,200oC Screw ass

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026451

      法兰式装配 DIN/EN DN100,25bar,200oC Screw ass

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108383

      法兰 DN40 PN40, Rp1-1/2, 316Ti, 3.1 EN1092

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108387

      法兰 1-1/2" Cl.150,NPT1-1/2,316Ti,3.1 ASME

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108388

      法兰 DN50 PN16, Rp1-1/2, 316Ti, 3.1 EN1092

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108389

      法兰 2" Cl.150, NPT1-1/2,316Ti, 3.1 ASME B

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108390

      法兰 DN100 PN16, Rp1-1/2, 316Ti, 3.1 EN109

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108391

      法兰 4" Cl.150, NPT1-1/2,316Ti, 3.1 ASME B

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209097

      玻璃视窗 disc DN100, 25bar, 200oC Installati

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209100

      玻璃视窗 disc DN80, 25bar, 200oC Installatio

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209101

      玻璃视窗 disc DN50, 25bar, 200oC Installatio

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209107

      玻璃视窗 disc DN100, 10bar, 200oC Installati

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209111

      玻璃视窗 disc DN80, 10bar, 200oC Installatio

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209114

      玻璃视窗 disc DN50, 10bar, 200oC Installatio

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209115

      玻璃视窗 disc DN100, 200oC Installation on w

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209116

      玻璃视窗 disc DN80, 200oC Installation on we

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209118

      玻璃视窗 disc DN50, 200oC Installation on we

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209119

      玻璃视窗 disc DN100, 6bar, 200oC Installatio

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209121

      玻璃视窗 disc DN80, 6bar, 200oC Installation

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209122

      玻璃视窗 disc DN50, 6bar, 200oC Installation

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.
