绝压与表压
Cerabar PMP71

Cerabar PMP71 ©Endress+Hauser
Cerabar PMP71 ©Endress+Hauser
©Endress+Hauser

压力测量原理

Cerabar PMP71 ©Endress+Hauser
Cerabar PMP71 ©Endress+Hauser

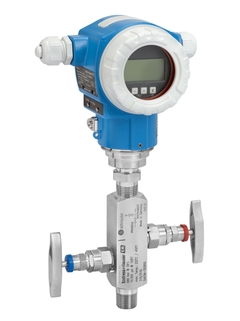

Cerabar PMP71 with manifolds ©Endress+Hauser
  • Cerabar PMP71
  • Cerabar PMP71
  • Cerabar PMP71
  • Cerabar PMP71
  • Cerabar PMP71 with manifolds

采用焊接式金属传感器的数字式压力变送器，适用于气体、蒸汽和液体测量

Cerabar PMP71数字压力测量变送器采用金属膜片，主要用于过程工业，可测量液体和气体的压力、液位、体积和质量。PMP71专为高压测量场合设计，最高工作压力可达700ba。带快速设定功能，量程可调。设计符合IEC61508标准，满足SIL2/3功能安全要求。提供MID计量认证证书，适可用于计量交接。

Extended选型
  • F
  • L
  • E
  • X

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富，适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 测量精度

      0.075%
      铂金型：0.05%

    • 过程温度

      -40...125 °C
      (-40...257 °F)

    • 压力测量范围

      100mbar...700bar
      (1.5...10.500 psi)

    • 主要接液部件

      Alloy C276合金
      316L
      铑

    • 过程膜片的材质

      316L、AlloyC合金、
      铑>金

    • 传感器

      100 mbar...700 bar
      (1.5...10.500 psi)
      表压/绝压

Loading alternative products

快速选择

从我们建议的选项中选择
售价
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

PMP71
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
价格核算中…
暂时无价格信息
from CHF 803.-
  • 可选附加功能
请使用 Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

附加组件

  • 优势

    • 即使在过程温度变化的工况下，仍能进行精确的测量

    • HistoROM®/M-DAT 记忆存储单元，可回溯仪表设定与测量值

    • 通过TÜV SÜD认证的IEC 61508标准，适用于SIL2/SIL3功能安全过程监测(最大…最小…范围)

    • 从测量薄膜到电子元件，提供过载保护和功能监测

    • 快速设置菜单可快速设置基本调试参数，菜单引导式操作，提供高级故障诊断功能

    • 可选安装阀组：并做打压测试

    • 无缝、独立的系统集成(HART/PA/FF)

  • 应用领域

    双腔室铝或不锈钢 (316L) 外壳

    • 过程链接：螺纹，法兰

    • 温度范围：-40 至 +125°C (-40 至 +257°F)

    • 压力范围：+100mbar 至 +700bar (+1.5至 +10.500psi)

    • 精度误差：±0.05%, "铂金型" ±0.025%

    • 国际防爆保护认证, WHG溢出防护, 卫生型认证, 海级认证, SIL

特征和规格

返回

Details

  • 测量原理

    绝压和表压

  • 特点

    数字式变送器，带压阻硅传感器和焊接金属膜片
    高长期稳定性
    通过自诊断功能提高安全性 第二层过程安全栅

  • 供电电压

    4...20mA HART
    10.5...45V DC（非防爆）：
    Ex ia：10.5...30V DC
    PROFIBUS PA：
    9...32 V DC（非防爆）
    FOUNDATION Fieldbus：
    9...32 V DC（非防爆）

  • 参考测量精度

    标准型：0.05%；
    铂金型：0.025%

  • 长期稳定性

    0.05% URL /年

  • 过程温度

    -40...125 °C
    (-40...257 °F)

  • 环境温度

    -40...85 °C
    (-40...185 °F)

  • 传感器

    100 mbar...700 bar
    (1.5...10.500 psi)
    表压/绝压

  • 最小可标定量程

    5 mbar (0.075 psi)

  • 抗真空压力

    10 mbar (1.45 psi)

  • 最大量程比

    100:1

  • 最大过压限定值

    1050 bar (15.750 psi)

  • 过程连接

    螺纹：
    G1/2...G2、R1/2、MNPT1/2...MNPT2、R1/2
    法兰：
    DN25...80、
    ASME 1"...4"、
    JIS 10K...20K

  • 过程膜片的材质

    316L、AlloyC合金、
    铑>金

  • 垫圈材质

    无，焊接传感器

  • 填充液

    硅油、
    惰性油

  • 外壳材质

    铸铝、
    AISI 316L

  • 通信

    4...20 mA HART
    1...5V DC，低功率
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、EAC

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN10204-3.1
    NACE MR0175

  • 船级认证

    GL/ABS

  • 饮用水认证

    NSF

  • 特点

    诊断功能

  • 替代产品

    PMP71B

  • 测量原理

    绝压和表压

  • 特点/应用

    数字式变送器，带压阻硅传感器和焊接金属膜片
    高长期稳定性
    通过自诊断功能提高安全性
    第二层过程安全栅

  • 特点

    诊断功能
    多语言显示软件

  • 电源/通信

    4...20mA HART：
    10.5...45 VDC
    Ex ia：10.5...30 VDC
    PROFIBUS PA /
    FOUNDATION Fieldbus：
    9...32 VDC

  • 测量精度

    0.075%
    铂金型：0.05%

  • 长期稳定性

    0.05% URL /年

  • 环境温度

    -50...85°C
    (-58...185°F)

  • 过程温度

    -40...125 °C
    (-40...257 °F)

  • 过程压力（绝压）/最大过压限定值

    1050bar (15750psi)

  • 压力测量范围

    100mbar...700bar
    (1.5...10.500 psi)

  • 主要接液部件

    Alloy C276合金
    316L
    铑

  • 过程连接

    螺纹
    法兰（DIN、ASME等），膜片齐平安装

  • 最大测量距离

    7000m (22.966ft) H2O

  • 通信

    4...20 mA HART
    1...5V DC，低功率
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、EAC

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN 10204-3.1
    NACE MR0175、MR0103

  • 船级认证

    GL/ ABS

  • 饮用水认证

    NSF

  • 选项

    HistoROM/M-Dat
    四行数字显示
    不锈钢外壳或铝外壳

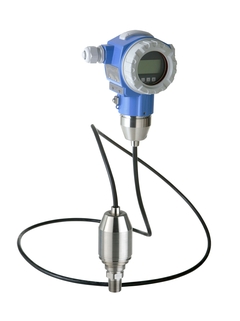

    分离型外壳

  • 替代产品

    PMP71B

  • 应用限制

    传感器：金属焊接
    带压时，使用带两台压力变送器的差压测量（电子差压）。注意
    表压比：
    静压

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 12
    • Nr 12 Order code 52020440

      安装组件

      consists of: 2x O-ring 45.69x2.62 EPDM retaining ring, plastics Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 12 Order code 71020596

      安装组件

      consists of: 2x O-ring 45.62x69x2.62 EPDM 1x profile gasket 51.4x57.2x1.6 VMQ retaining ring, plastics Cerabar S PMC71/PMP71/PMP75 Deltabar S PMD70/PMD75/FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 13
  • 15
    • Nr 15 Order code 52020760

      缆塞

      consists of: cable gland M20 O-ring 18.72x2.62 VMQ Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020761

      电缆入口

      consists of: gasket 18.72x2.51 NBR adapter M20 > G1/2 O-ring 18.77x1.78 NBR Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020762

      插接头

      Harting plug set Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020763

      插接头

      Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Order code 71111056

      大气补偿过滤口

      Consists of: vent screw 304. Pressure compensation filter. O-ring EPDM, protection lid. Usage: housing T14, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Housing F31, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55. Housing F15 w/o B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

    • Order code 71219639

      大气补偿过滤口

      Consists of: vent screw 304. Pressure compensation filter. O-ring VMQ, protection lid. Usage: housing T17, FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/ PMP75. Housing F15 at B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

  • 20
    • Nr 20 Order code 52020432

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 52020433

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 20 Order code 52028310

      不锈钢盖

      Material: 316L O-ring EPDM, FDA individual tested, EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 20 Order code 71002774

      不锈钢盖

      Material: 316L flat gasket VMQ, centering ring, screw not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71002810

      带视窗盖

      Material: 316L Sight glass: mineral glass flat gasket VMQ, centering ring, screw approval 2,3,4,8,Q,W,7,8 Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71002811

      带视窗盖

      Material: 316L Sight glass: Polycarbonat PC flat gasket VMQ, centering ring, screw approval A,F,R,S,U,1,6 Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71206965

      不锈钢盖

      Material: 316L. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP72/PMP75.

    • Nr 20 Order code 71206968

      不锈钢盖

      Material: 316L. Sight glass: mineral glass,coated. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 21
    • Nr 21 Order code 71206971

      密封圈组件

      Consists of: 5x O-ring 75.87x2.62 FVMQ. Usage: housing T14, FMD77/FMD78, PMD70/PMD75, PMP71/PMP75.

  • 20
    • Nr 20 Order code 71245247

      铝盖

      Material: aluminium, coated. Sight glass: mineral glass, coated. O-ring EPDM, FDA. Not for EEx d/XP. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 20 Order code 71245249

      铝盖

      Material: aluminium. Sight glass mineral glass, coated. O-ring EPDM, FDA. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 20 Order code 71245250

      盖

      Material: 316L. Sight glass: mineral glass, coated. O-ring EPDM, FDA. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 21
    • Order code 71290825

      接地端子

      Consists of: spring washer, screw, earth handle, clamp. Usage: housing T14/T15/T17, FMB70, FMD71/FMD72/ FMD77/FMD78, PMC71, PMP71/PMP75, PMD70/PMD75. Housing F30/F31, FMB50/FMB51/FMB52/ FMB53, PMC51, PMD55, PMP51/PMP55.

  • 25
    • Nr 25 Order code 52020432

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 25 Order code 52020433

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 25 Order code 52028310

      不锈钢盖

      Material: 316L O-ring EPDM, FDA individual tested, EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 25 Order code 71002774

      不锈钢盖

      Material: 316L flat gasket VMQ, centering ring, screw not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 25 Order code 71206965

      不锈钢盖

      Material: 316L. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP72/PMP75.

  • 30
    • Nr 30 Order code 52024111

      电子插件

      4-20mA, version 2.0 push buttons on housing Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 30 Order code 52024400

      电子插件

      4-20mA, version 2.0 push button on electronics Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 30 Order code 71026358

      电子插件

      4-20mA, version 2.1 push button on electronics Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 30 Order code 71026359

      电子插件

      4-20mA, version 2.1 push buttons on housing Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 30 Order code 71196092

      电子插件

      4-20mA, version 02.11.zz. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71196093

      电子插件

      4-20mA, version 2.11.zz. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71263933

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on electronics. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71263934

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on housing. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71386147

      电子插件 HART Ex, v2.30

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on electronics. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71386153

      电子插件

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on housing. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 52026762

      升级电子插件 HART Ex, v2.1

      consists of: electronics HART Ex, version 2.0 push button on electronics display housing to convert to electronic version 2.0 Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 30 Order code 52026763

      升级电子插件 HART Ex,ext.push b.,v2.1

      consists of: electronics HART Ex, version 2.0, push buttons external display housing to convert to electronic version 2.0 push button for housing HART version 2 Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 30 Order code 71071824

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.00.zz. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071825

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.00.zz. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071826

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 15mA +/- 1mA. Push button on electronics. Verwendung: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071827

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 15mA +/- 1mA. Push button on housing. Verwendung: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214057

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214064

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214066

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 02.00.zz. Current consumption 15mA +/-1mA. Push button on housing. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214069

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 02.00.zz. Current consumption 15mA +/-1mA. Push button on electronics. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214890

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 04.00.zz, FF, DevRev07. Current consumption 15mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for SIL.

    • Nr 30 Order code 71214892

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 04.00.zz, FF, DevRev07. Current consumption 15mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for SIL.

    • Nr 30 Order code 71224775

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.01.zz, PROFIBUS PA, Profile 3.02, DevRev03. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71224776

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.01.zz, PROFIBUS PA, Profile 3.02, DevRev03. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71327714

      Electronics 1-5VDC Low Power

      Usage: PMP71. Approval: V,T,X.

  • 31
    • Nr 31 Order code 52027785

      存储器

      Setup-/diagnostic software included. Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 35
    • Nr 35 Order code 52027691

      接线端子

      RFI-filter FOUNDATION Fieldbus Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 35 Order code 71028475

      接线端子

      Overvoltage protection, RFI-filter PROFIBUS PA Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71028476

      接线端子

      Overvoltage protection, RFI-filter FOUNDATION Fieldbus Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71121574

      接线端子

      RFI filter. PROFIBUS PA. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for TIIS.

    • Nr 35 Order code 71191892

      接线端子

      RFI-filter. Not for TIIS Ex ia, TIIS Ex d. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 35 Order code 71191894

      接线端子

      Overvoltage protection, RFI-filter. Not for TIIS Ex ia, TIIS Ex d. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 35 Order code 71327712

      Terminal 3-pole, 1-5VDC electronics

      Usage: PMP71.

  • 40
    • Nr 40 Order code 71002865

      显示模块

      Digital display with snapped bracket languages de, en, fr, es, it, nl for electronics from software version 2.0 languages ja, zh for electronics from software version 2.0.1 Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Order code 52009800

      平密封垫片

      Set of process gaskets Viton for Cerabar M/Cerabar S, metal cell

    • Order code 71000221

      适配电缆

      Connection service tool RS232(52013675)/ ToF adapter FXA291 (71007843) > Micropilot M, Prosonic M, Levelflex M, Cerabar S, Deltabar S

    • Order code 71043886

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043888

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043889

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71070738

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

    • Order code 71377369

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMD71/FMD72, PMC71, PMP55, PMP71/75.

    • Order code 71377370

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377371

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377379

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMD71/FMD72, PMC71, PMP55, PMP71/75.

    • Order code 71377380

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377383

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 52024469

      过程连接件|Weld-in G1-1/2, 316L

      mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Correct installation only with dummy

    • Order code 52024470

      焊座

      mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Inspection cert. EN10204-3.1 material

    • Order code 71389241

      过程连接件|Weld-in G1/2, 316L, A DIN 3852

      Weld-in adapter for G1/2 A DIN 3852. Material: 316L. Usage: PMP21, PMP51, PMP71.

    • Order code 71389243

      焊座，G1/2，3.1材质认证

      Weld-in adapter for G1/2 A DIN 3852. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: PMP21, PMP51, PMP71.

    • Order code 71304770

      安装组件

      Material: 316L. Usage: mounting kit to attach the own mounting bracket / weather protection cover, FMB70, PMC71, PMP71/PMP75.

    • Order code 71372498

      安装组件

      Mounting set Manifold. Material: 316L. Consists of: 1x Mounting bracket. 1x U-bolts. 2x Washers A 8.4. 2x Hexagon nuts M8. Usage: wall/pipe mounting 2", DA63M, PMC51, PMC71, PMP51, PMP71.

    • Order code 71007843

      ToF 适配器 FXA291

      Usage: connection Micropilot M, Micropilot S, Levelflex M, Prosonic M, Tank Side Monitor, Deltabar S, Cerabar S, Gammapilot M, Micropilot I, to Commubox FXA291.

    • Order code 71102216

      安装组件

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

成功案例

比较产品
本网站使用cookies。如果您继续使用本网站，即表明您同意我们使用cookies。 单击此处，了解更多信息
