iTHERM TMS01 MultiSens Flex多点温度计

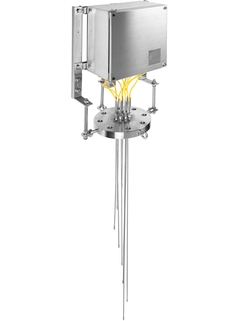

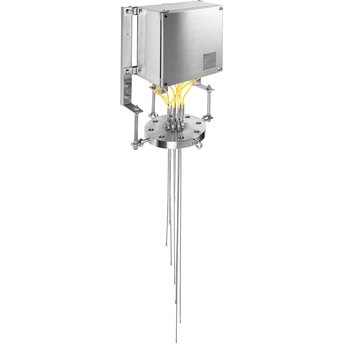

多点温度计iTHERM TMS01 MultiSens Flex ©Endress+Hauser

热电偶和热电阻多点温度计采用模块化结构设计,直接进行温度测量,适用于油气和石化应用场合

iTHERM TMS01遵循最高安全标准设计,能够针对不同应用进行定制。多个可弯曲的温度芯子通过一个过程接口实现全方位三维温度测量分布。仪表可以与热保护套管配套使用,也可以单独使用;具有最优响应时间,强机械强度,并且传感器可更换。采用热电偶或热电阻技术,或使用iTHERM StrongSens。

  • 优势

    • 仪表采用模块化结构,设计灵活,使用便捷;可以在安装后直接测量,也可以安装在传感器专用热保护套管中测量。仪表可以安装在现有热保护套管中。

    • 传感器的三维温度测量满足所需过程监测设置要求

    • 模块化产品的安装、过程集成和维护都十分简单,灵活适应各类定制的罐体条件

    • 铠装芯子具有高过程兼容性,符合IEC 60584、ASTM E230和IEC 60751标准

    • 在线电子部件热保护功能保证最高产品稳定性

    • 符合各类防护要求,可以安装在危险区中使用,过程集成简单

  • 应用领域

    • 石化行业

    • 油气行业

    • 重化工工艺

特征和规格

返回

Details

  • 测量原理

    热电阻

  • 特点/应用

    metric style

    easy-to-use

    suitable for hazardous areas

    flanged process connection

    light chemical processes

    3D sensors distributions

    modular design

    replaceable sensors during shutdown

  • 接线盒

    Junction box - aluminium - as accessory

    Junction box - stainless steel - as accessory

    on board or remote Junction box

  • 热保护套管

    without (for direct contact sensors type)

    with (for replaceable sensors)

    with (for increased mechanical protection)

    Multi-thermowells, each one dedicated to a sensor

  • 铠装芯子/探头

    mineral insulated (MI), flexible

    mineral insulated (MI), flexible, with its own thermowell

  • 热保护套管外径

    6,0 mm (0,24'')

    8,0 mm (0,31")

    10,29 mm (1/8")

  • 所需最大插入深度

    up to 30.000,00 mm (1181'')

  • 热保护套管材质

    1.4401 (316)

    1.4435 (316L)

    1.4541 (321)

    1.4550 (347)

    Alloy 600 (2.4816)

  • 过程连接

    flange:

    2" ASME/ANSI B16.5 150
    ...600

    3" ASME/ANSI B16.5 150
    ..600

    4" ASME/ANSI B16.5 150
    ...600

    6" ASME/ANSI B16.5 150
    ...600

    8" ASME/ANSI B16.5 150
    ...600

    DN80 EN/DIN 1092.1 PN10
    ...PN100

    DN100 EN/DIN 1092.1 PN10
    ...PN100

    DN125 EN/DIN 1092.1 PN10
    ...PN100

    DN150 EN/DIN 1092.1 PN10
    ...PN100

    DN200 EN/DIN 1092.1 PN10
    ...PN100

  • 热保护套管末端类型

    straight

  • 工作温度范围

    Type K:

    -270 °C ...1.100 °C

    (-454 °F ...2.012 °F)

    Type J:

    -210 °C ...760 °C

    (-346 °F ...1.382 °F)

    Type N:

    -270 °C …1100 °C

    (-454 °F ...2.012 °F)

    Type T:

    -270 °C …370 °C

    (-454 °F …698 °F)

  • 最大过程压力(静压)

    at 20 °C: 100 bar (1450 psi)

  • 测量精度

    class 2 acc. to IEC 60584

    ASTM E230 and ANSI MC 96.1

  • 响应时间

    depending on configuration:


    TC:

    t50 = 2 s

    t90 = 5 s


    RTD:

    t50 = 0,8s

    t90 = 2s

  • 模块化温度变送器

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • 防爆认证

    ATEX

    IECEX

  • 证书

    SIL (transmitter only)

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code TMT111-

      iTEMP 导轨式温度变送器模块 TMT111

      Temperature transmitter,PC programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanical isolation. Fault reaction: NAMUR NE 43. Rail TH 35 IEC 60715. Width: 12.6 mm. Factory setup: Pt100, 3-wire, 0-100oC. Sensor type/connection optional selectable.

    • Order code TMT112-

      导轨型温度变送器 TMT112

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL, galvanic isolation. Fault reaction: NAMUR NE 43. Rail IEC 60715. Wide: 12.6mm. UL listed.

    • Order code TMT121-

      导轨型温度变送器 TMT121

      Temperature transmitter, PC- programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Rail IEC 60715. Wide: 22.5mm. UL listed. GL (German Llyod) Marine.

    • Order code TMT122-

      导轨型温度变送器 TMT122

      Temperature transmitter, HART protocol. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation. Fault reaction: NAMUR NE 43. Rail IEC 60715. Wide: 22.5mm. UL listed. GL (German Llyod) Marine.

    • Order code TMT125-

      导轨型温度变送器 TMT125

      Temperature transmitter. Application: RTD, TC, Ohm, mV. 8-channel. Galvanic isolation.

    • Order code TMT142-

      现场温度变送器 TMT142

      Temperature transmitter, HART protocol. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Failure mode: NAMUR NE 43. Single compartment, NEMA 4X, IP67. UL listed.

    • Order code TMT162-

      现场温度变送器 TMT162

      Temperature transmitter. Application: RTD, TC, Ohm, mV. HART, PROFIBUS PA or FOUNDATION Fieldbus separately available. Galvanic isolation 2 kV (sensor input/output). NEMA 4x, IP67. Dual compartment. GL (German Lloyd)Marine (only HART). UL listed.

    • Order code TMT180-

      模块温度变送器 TMT180

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT181-

      模块温度变送器 TMT181

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT187-

      模块温度变送器 TMT187

      温度变送器 应用:热电阻 2线制,4-20mA,电气绝缘 错误报警:NAMUR NE 43 安装方式:接线盒 DIN B EN 50446 UL认证 GL认证(德国船级社)

    • Order code TMT71-

      温度变送器TMT71

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

    • Order code TMT72-

      温度变送器TMT72

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification: Pt100, 4-wire, 0...+100oC

    • Order code TMT84-

      模块温度变送器 TMT84

      Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable.

    • Order code TMT85-

      模块温度变送器 TMT85

      Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose.

    • Order code TMT182-

      模块温度变送器 TMT182

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine.

    • Order code TMT82-

      模块温度变送器 TMT82

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
