防爆热电偶温度计,带 DIN 保护管

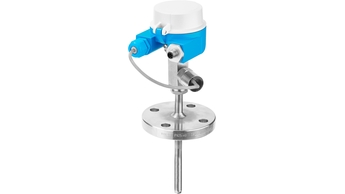

产品图片:TC61 热电偶温度计 ©Endress+Hauser

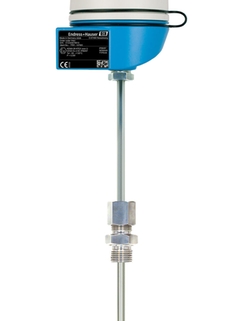

TC61 防爆热电偶温度计 ©Endress+Hauser

过程温度的安全测量,适用于石油、天然气等行业中恶劣工况的测量场合

此款热电偶温度计坚固耐用,适用于化工、石油、天然气、能源等行业的恶劣工况和安全要求高的测量场合。牢固的保护管和特殊材质足于应对恶劣的工作环境、腐蚀性物质和高压。可选变送器兼容各种通用通信协议,可即装即用,与直接连线的传感器相比,提高测量精度和可靠性,设备设置灵活。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 防爆类型:本质安全型(Ex ia),隔爆型(Ex d),无火花型(Ex nA)

    • 测量芯子兼容性高,设计符合DIN 43772标准

    • 延伸颈可防止变送器过热

    • 短锥/锥形端部,加快反应时间

    • 模块化设计,采用符合DIN EN 50446的标准接线盒和客户指定的浸入长度,灵活性高

  • 应用领域

    • 重型机械应用领域

    • 油气行业

    • 测量范围: –40 ... 1 100 °C (–40 ... 2 012 °F)

    • 静压范围取决于所采用的过程连接,可达 75 bar

    • 保护等级: IP68

特征和规格

返回

Details

  • 测量原理

    热电偶

  • 特点/应用

    英标
    模块化温度计
    满足重尘应用要求
    可以在危险区中使用
    带延长颈
    带热保护套管(金属)

  • 热保护套管

    焊接保护管

  • 铠装芯子/探头

    矿物绝缘材料(MI),可弯曲

  • 热保护套管外径

    9.0 mm (0.35'')
    11.0 mm (0.43'')
    12.0 mm (0.47'')

  • 所需最大插入深度

    最大10,000.00 mm (393.70'')

  • 热保护套管材质

    1.4404 (316L)
    1.4571 (316Ti)
    Alloy 600 (2.4816)合金
    Alloy C276 (2.4819)合金

  • 可选带涂层

    未设置

  • 过程连接

    公螺纹:
    G1/2"
    G3/4"
    G1"
    NPT1/2"
    NPT3/4"
    M20x1.5
    卡套:
    G1/2"
    G1"
    法兰:
    DN25 PN40 B1 (EN1092)
    DN40 PN40 B1(EN1092)
    DN50 PN40 B1 (EN1092)
    ASME 1" 150 RF (B16.5)
    ASME 1" 300 RF (B16.5)

  • 热保护套管末端类型

    直管型
    缩径型
    锥管型

  • 表面光洁度Ra

    0.8 μm (31.5 μin.)

  • 工作温度范围

    K型:
    -40...1.100 °C
    (-40...2.012 °F)
    J型:
    -40...750 °C
    (-40...1.382 °F)

  • 最大过程压力(静压)

    20 °C时:100 bar (1.450 psi)

  • 测量精度

    Cl. 1,符合IEC 60584标准

  • 响应时间

    取决于设置
    t50 = 3 s
    t90 = 7 s

  • 模块化温度变送器

    是(4…20 mA;HART;PROFIBUS PA;FOUNDATION FIELDBUS)

  • 防爆认证

    ATEX II
    IECEx
    NEPSI
    防爆

  • 证书

    Gost认证
    SIL(仅针对变送器)

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • C
  • A
  • E
    • Nr E Order code TW10-

      Thermowell TW10

      Product being phased out, limited availability. Screw in. Protection tube acc. DIN43772/2G+3G, welded version.

    • Nr E Order code TW11-

      Thermowell TW11

      Product being phased out, limited availability. to screw in Pipe-version, welded, DIN 43772 / 2G + 3G.

    • Nr E Order code TW12-

      Thermowell TW12

      Product being phased out, limited availability. screw in. Protection tube acc. DIN43772/2+3, without neck, welded version.

    • Nr E Order code TW13-

      Thermowell TW13

      Product being phased out, limited availability. with flange connection. Protection tube acc. DIN43772/2F+3F, welded version.

  • F
  • B
    • Nr B Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

  • D
    • Nr D Order code TA30H-

      Terminal Head TA30H

      Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).

  • B
    • Nr B Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
