产品规格参数
-
测量精度
class 2 acc. to IEC 60584
ASTM E230 and ANSI MC 96.1 -
响应时间
t50 = 3 s
t90 = 9 s -
最大过程压力(静压)
at 20 °C: 90 bar (1305 psi)
-
工作温度范围
Type K:
-270 °C ...1.100 °C
(-454 °F ...2.012 °F)
Type J:
-210 °C ...760 °C
(-346 °F ...1.382 °F)
Type N:
-270 °C …1100 °C
(-454 °F ...2.012 °F
Type E:
-40 °C …870 °C
(-40 °F ...752 °F) -
所需最大插入深度
up to 13.000,00 mm (511,81'')
应用领域

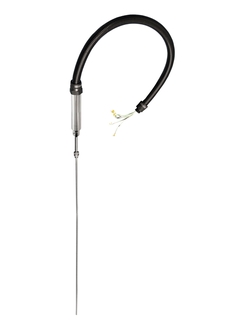

专门设计在要求小尺寸和轻质量探头的应用场合中使用。TMS21采用模块化设计,灵活满足用户定制要求。 仅需使用一个过程连接即可监测整个管道中多个测量点的温度。它包含多个小管径传感器,由一个热保护套管保护所有传感器。 提供两种产品供用户选择,带或不带顶部柔性保护软管(实现对中安装)。
石化行业
化工行业
优势
小管径,内含多个测量点
耐用的温度探头
安装和接线简单
