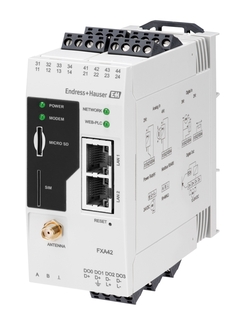

网关 Fieldgate FXA42
连接的4...20 mA模拟式和数字式现场设备测量值通信
Fieldgate FXA42用于监控带数字式或4...20 mA接口的现场设备，无需考虑安装位置。支持WLAN、3G和Modbus通信接口。采用内置Web服务器技术可以便捷地设置为在线模式，可以在线查看测量值。FXA42还具有数据记录和报警管理功能。
此产品暂未在中国市场销售
-
优势
桌面显示物位、流量和压力，无需考虑安装位置
Fieldgate设置简单，通过其内置Web服务器能够简便查看测量值
连接至SupplyCare (企业版)和SupplyCare (单机版)
可编辑逻辑控制器实现高级功能和响应
通过电子邮件或短消息实现限位值监控报警
通过模拟量输入的限位状态实现罐体监控(HH、H、L、LL)
简便连接至现场设备和连接至第三方系统
-
应用领域
通过以太网、WLAN或移动通信(3G)监控连接的4...20 mA模拟式和数字式现场设备。
可以在标准Internet浏览器查看测量值
测量和传输周期设置
通过电子邮件或文本进行限定值监控报警设置
四个4...20 mA输入、4个数字量输入和输出通道
Modbus TCP和Modbus RTU
文档/手册/软件
-
Fieldgate FXA42
System Products
技术信息(TI) -
Fieldgate FXA42
System Products
操作手册（BA） -
Fieldgate FXA42
System Products
Short Instruction (KA)10/19英语 -
The efficient business model with Vendor Managed Inventory
Inventory solution for a chemical distributor
行业解决方案(SO)09/19英语 -
More efficient with the supplier-managed inventory business model
Inventory and supply chain solution across depots for a chemical
producer行业解决方案(SO)09/19英语 -
Prevent unscheduled downtimes
With fuel and chemical supply chain management in Primaries
行业解决方案(SO)09/19英语 -
Real-time inventory information across production storages
Usage of existing material on stocks and reduction of locked-in
inventory costs行业解决方案(SO)09/19英语 -
Fieldgate
产品型号: FXA42-
一致性声明编号: EC_00447_04.16EU Declaration德语 , 英语 , fr -
Fieldgate
产品型号: FXA42-
一致性声明编号: EC_00459_02.16EU Declaration英语 -
Fieldgate
产品型号: FXA42-
一致性声明编号: EC_00460_02.16EU Declaration英语 -
Commubox, Fieldgate
产品型号: FXA42-, SWA70-
地区/国家: Russia (Declaration of Conformity), Russia (TR CU)
认证机构: EAC
证书号: RU D-DE.MO10.B.05295Miscellaneous俄语
附件/备件
-
-
Order code 71327395
固定天线
Fixed antenna for mounting on vertical surfaces. Cable length: 3m. Application: LTE 800MHz, LTE 2.6GHz, GSM 900/1800, UMTS, WLAN 2.4 GHz (WiMAX, WiFi). Usage: FXA30, FXA42. Indoor and outdoor use. Mounting via bracket. Omnidirectional characteristic. Radiator protected by a plastic tube. HF-cable connected directly to antenna. 10cm clearance between antenna by 15dB isolation.
-
Order code 71327424
HG1+HART转Modbus网关
Advanced HART communications module. HART to Modbus protocol conversion. For use with Fieldgate FXA42 to transfer data to SupplyCare Hosting and Enterprise. Also works with a direct connection to SupplyCare Enterprise. Usage: FXA42. Application: HART Multidrop loop communication. Modbus TCP server. Modbus RS485 slave.
-
Order code 71375710
模拟量转Modbus TCP转换器
Datexel DAT8017-I Server. Ethernet 10/100 Base-T, Modbus TCP. 8 analog inputs. DIN rail mounting. Application: Analog to Modbus protocol conversion. Galvanic isolated connection for up to 8 analog sensors with active current output. Integrated web server. Usage: FXA42.
-
-
