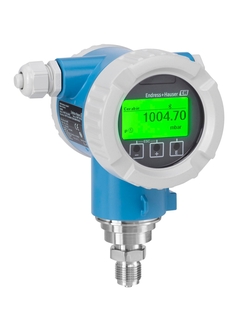

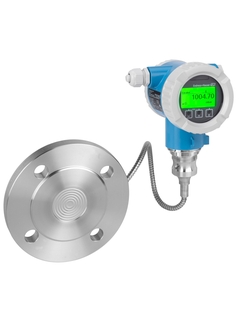

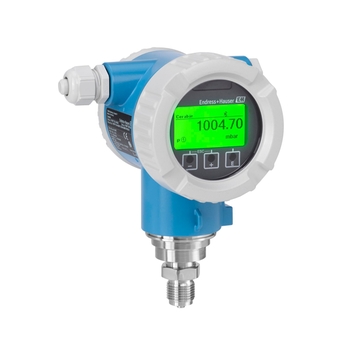

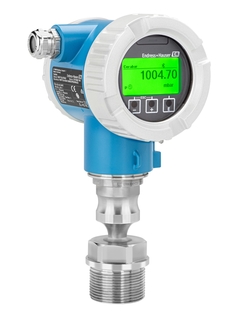

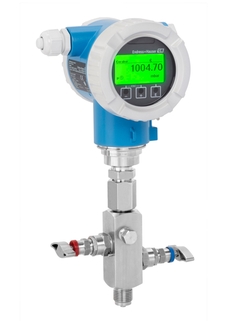

Cerabar PMP71B压力变送器

Cerabar PMP71B压力变送器 ©Endress+Hauser
Cerabar PMP71B压力变送器 ©Endress+Hauser
Cerabar PMP71B压力变送器 ©Endress+Hauser
Cerabar PMP71B压力变送器 ©Endress+Hauser

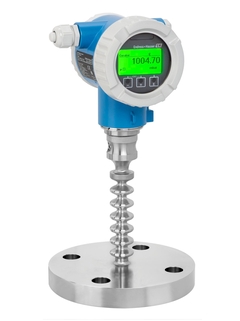

带隔热管

Cerabar PMP71B压力变送器 ©Endress+Hauser

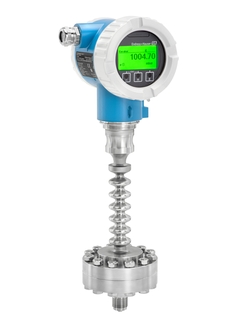

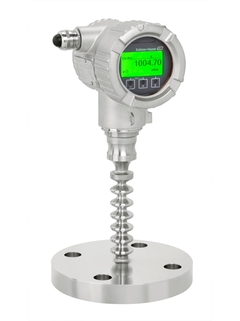

带隔热管,使用不锈钢外壳

智能压力变送器,无需中断生产过程即可校验仪表健康状况

PMP71B是新一代Cerabar变送器的成员之一。变送器坚固耐用,采用安全Bluetooth蓝牙连接,使用移动设备,安装app,即可远程操控仪表。
软件的使用十分简单。操作向导直观明了,引导用户逐步完成仪表设置、功能安全测试和验证测试。
Heartbeat Technology心跳技术提供自校验和自监控功能,能够检测出过程异常,比如回路参数变化。

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富,适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 测量精度

      Standard:
      up to 0.05 %
      Platinum:
      up to 0.025 %

    • 过程温度

      Standard:
      -40°C…+125°C
      (-40°F…+257°F)

      Diaphragm seal:
      -40°C...+400°C
      (-40°F...+752°F)

    • 压力测量范围

      400 mbar...700 bar
      (1.5 psi...10,500 psi)

    • 主要接液部件

      316L, AlloyC,
      Tantal, Monel,
      PTFE, Gold

    • 过程膜片的材质

      316L, AlloyC,
      Tantal, Monel,
      PTFE,
      Gold

    • 传感器

      400 mbar...700 bar
      (6 psi...10,500 psi)

please wait Loading alternative products

快速选择

从我们建议的选项中选择
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 采用Heartbeat Technology心跳技术,无需中断生产过程即可验证仪表健康状况。

    • 清晰标识仪表状况,一旦出现诊断信息,仪表立即从绿色切换至红色显示

    • 减小系统故障发生几率,零错误的SIL调试和引导式仪表功能安全测试

    • 使用SmartBlue App无线远程控制生产区域内的设备

  • 应用领域

    • 最大适用压力700 bar (10500 psi)

    • 采用隔膜密封系统的仪表的最高耐温400°C (752 °F)

    • 最高测量精度为+/- 0.025%

特征和规格

返回

Details

  • 测量原理

    绝压和表压

  • 特点/应用

    Pressure transmitter with metallic process diaphragm.

    Available with diaphragm seals.

    Device health verification without process interruptions.

    Intuitive and clear wizards for commissioning, proof tests and verification.

  • 特点

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Plug and play functionalities,

    HistoROM

  • 电源/通信

    Ex d, Ex e, non-Ex:

    10.5...35V DC

    Ex i: 10.5...30V DC

  • 测量精度

    Standard:

    up to 0.05 %

    Platinum:

    up to 0.025 %

  • 长期稳定性

    0.05 % of URL/ year

    0.07 % of URL/ 5 years

    0.10 % of URL/ 10 years

  • 环境温度

    -60°C...+80°C

    (-76°F...+185°F)

  • 过程温度

    Standard:

    -40°C…+125°C

    (-40°F…+257°F)


    Diaphragm seal:

    -40°C...+400°C

    (-40°F...+752°F)

  • 过程压力(绝压)/最大过压限定值

    700 bar

    (10,500 psi)

  • 压力测量范围

    400 mbar...700 bar

    (1.5 psi...10,500 psi)

  • 主要接液部件

    316L, AlloyC,

    Tantal, Monel,

    PTFE, Gold

  • 过程连接

    Thread:

    G1/2...G2, R1/2, MNPT3/4...MNPT2,

    FNPT1/2, R1/2

    Flange:

    DN25...DN100,

    NPS 1"...4"

    Pancake: 2"...4", DN50...DN100

  • 最大测量距离

    7000 m (22,966 ft) H2O

  • 通信

    4...20 mA HART

  • 证书和认证

    ATEX, IEC Ex

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN 10204-3.1

    NACE MR0175,

    NACE MR0103

  • 船级认证

    GL/ ABS

  • 饮用水认证

    NSF

  • 计量认证和证书

    MID

  • 选项

    Touch control display

    Diaphragm seal

  • 应用限制

    Measuring cell: Metal
    welded
    If pressurized, possibly
    use differential pressure
    measurement with two
    pressure transmitters
    (electronic dp). Observe
    ratio head pressure:
    hydrostatic pressure

  • 测量原理

    绝压和表压

  • 特点

    Pressure transmitter with metallic process diaphragm.

    Available with diaphragm seals.

    Device health verification without process interruptions.

    Intuitive and clear wizards for commissioning, proof tests and verification.

  • 供电电压

    4...20 mA HART

    Ex d, Ex e, non-Ex:

    10.5...35V DC :

    Ex i: 10.5...30V DC

  • 参考测量精度

    Standard:

    up to 0.05 %

    Platinum:

    up to 0.025 %

  • 长期稳定性

    0.05 % of URL/ year

    0.07 % of URL/ 5 years

    0.10 % of URL/ 10 years

  • 过程温度

    Standard:

    -40°C…+125°C

    (-40°F…+257°F)


    Diaphragm seal:

    -40°C...+400°C

    (-40°F...+752°F)

  • 环境温度

    -60°C...+80°C
    (-76°F...+185°F)

  • 传感器

    400 mbar...700 bar
    (6 psi...10,500 psi)

  • 最小可标定量程

    5 mbar (0.075 psi)

  • 抗真空压力

    5 mbar (0.725 psi)

  • 最大量程比

    100:1

  • 最大过压限定值

    2,800 bar (40,600 psi)

  • 过程连接

    Thread:

    G1/2...G2, R1/2, MNPT3/4...MNPT2,

    FNPT1/2, R1/2

    Flange:

    DN25...DN100,

    NPS 1"...4"

    Pancake: 2"...4", DN50...DN100

  • 过程膜片的材质

    316L, AlloyC,

    Tantal, Monel,
    PTFE,

    Gold

  • 垫圈材质

    PTFE

  • 填充液

    Silicone oil, Inert oil,

    Vegetable oil,

    High/ low temperature oil

  • 外壳材质

    Aluminium,

    316L

  • 通信

    4...20 mA HART

  • 证书和认证

    ATEX, IEC Ex

  • 安全认证

    安全认证

  • 设计认证

    EN10204-3.1,

    NACE MR0103,

    NACE MR0175

  • 船级认证

    船级认证

  • 饮用水认证

    NSF

  • 特点

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Plug and play functionalities,

    HistoROM

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 14
    • Nr 14 Order code 71487198

      Blind plug, M20, 316L, o-ring EPDM

      Consists of: blind plug, o-ring PTFE coated 17.0x2.0. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 14 Order code 71487199

      Blind plug, M20, Alu, o-ring EPDM

      Consists of: blind plug, o-ring PTFE coated 17.0x2.0. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 14 Order code 71487201

      Blind plug, NPT1/2, Alu

      Consists of: blind plug, PTFE coated. Usage: FMG50, NMT81, PMC51B, PMC71B PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 14 Order code 71487203

      Blind plug, NPT1/2, 316L

      Consists of: blind plug, PTFE coated. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

  • 15
    • Nr 15 Order code 71435135

      电缆格兰头 M20,塑料 适用型号: FTL41,FTL51B,PMC51B,P

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435136

      电缆格兰头 M20,铜镀镍 适用型号: FMG50,FTL41,FTL51B,P

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435137

      电缆格兰头 M20,316L 适用型号: FMG50,FTL51B,PMC51B

      Usage: FMG50, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435138

      插接头M20, 黄铜镀镍 适用于: screw-in thread, FMG50

      Usage: M12 screw-in thread, brass nickel plated, FMG50, FTL51B, FTL62/FTL64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 15 Order code 71435139

      M12 plug, 316L, housing side

      Usage: M12 screw-in thread, FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71439098

      插接头HAN7D, 90度, IP65 适用于: FMG50, PMC51B,

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

  • 20
    • Nr 20 Order code 71435116

      外壳盖,铝,密闭盖,密封圈,HNBR。适用型号: FMG50,FTL41,FTL

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 20 Order code 71435118

      外壳盖,铝,密闭盖,Ex d 密封圈,HNBR。适用型号: FMG50,FTL4

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71435121

      盖子,铝, connection compartment, Ex d密封圈,

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71435122

      外壳盖,316L,密闭盖,Ex d 密封圈,HNBR。适用型号: FMG50,F

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71435123

      盖子, 316L, 带视窗, Ex d密封圈, HNBR.适用于: FMG50

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/FTL64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71435128

      外壳盖,316L,connect. compartment,Ex d 密封圈,H

      Sealing ring, HNBR. Usage: FMG50, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71439085

      Cover, Alu, connection compartment

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71439086

      Cover red, Alu, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP1B, PMP71B.

    • Nr 20 Order code 71439087

      Cover red, Alu,connect. compartment,Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71439088

      Cover red, Alu, sight window, Ex d

      Sealing ring, HNBR. Material sight window: borosilicat. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71439089

      Cover, Alu, sight window

      Sealing ring, HNBR. Material sight window: plastic. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71439090

      Cover, Alu, sight window, Ex d

      Sealing ring: HNBR. Material sight window: borosilicat. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

  • 21
  • 31
  • 35
  • 40
  • 70
    • Nr 70 Order code 71043886

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71043888

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71043889

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71070738

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71474958

      HAN7D socket, cable side

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71102216

      安装组件

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code 71372498

      安装组件

      Mounting set Manifold. Material: 316L. Consists of: 1x Mounting bracket. 1x U-bolts. 2x Washers A 8.4. 2x Hexagon nuts M8. Usage: wall/pipe mounting 2", DA63M, PMC51, PMC71, PMP51, PMP71.

    • Order code 71438291

      遮阳罩,塑料,XW111 适用型号: FTL41,FTL51B,PMC51B,P

      Usage: FTL41, FTL51B, FTL62/FTL64, PMC51B, PMD55B, PMP51B.

    • Order code 71438303

      遮阳罩

      Usage: FMG50, FTL51B, FTL62/FTL64, PMC71B, PMD75B/PMD78B, PMP71B.
