表压或绝压变送器
Cerabar PMP23

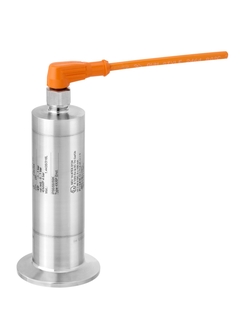

Cerabar PMP23 ©Endress+Hauser

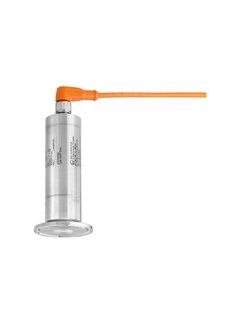

Cerabar PMP23 ©Endress+Hauser

Cerabar PMP23：标准应用的强大团队成员之一 - Liquiphant、Liquipoint、Cerabar、Ceraphant

压力测量原理

  • Cerabar PMP23
  • Cerabar PMP23

经济型压力变送器采用整体焊接型结构，适用于食品和饮料行业。

Cerabar PMP23是高性价比的紧凑型绝压或表压变送器。 压阻式传感器带齐平安装的316L膜片，满足卫生行业应用要求。PMP23配备多种EHEDG和3-A卫生型过程连接，采用FDA认证材料，符合EG1935/2004合规标准，具有IP69防护等级，可选IO-Link，通过防爆认证。允许用户订购自定义量程范围的仪表，最大量程为40 bar。

  • 优势

    • 具有超紧凑型结构并允许用户自定义量程范围，能够在工厂中简单省时地完成仪表安装和设置

    • IO-Link利用简单的配置工具或工程系统实现轻松配置，从而降低了成本和复杂性

    • 无需使用垫圈，整体焊接型过程连接具有最高过程安全性

    • 完全使用316L材料，提供了过程适用性；IP69防护等级的仪表型号满足冲洗条件，仪表具有高重复性和高长期稳定性

    • 使用灵活，低库存成本，确保PMP23耐CIP/SIP清洗

    • PMP23满足卫生文件归档和设备溯源要求，例如：EHEDG认证、3A认证或(EC)1935/2004准则、相关证书，...

  • 应用领域

    压力变送器测量气体或液体的绝压或表压。

    • 过程连接：齐平安装的卫生型连接、齐平安装的螺纹连接

    • 过程温度：-10...+100 °C (-40...+212 °F)；+135°C (+275°F)，max. 1h

    • 过程压力：400 mbar...+40 bar (6...600 psi)

    • 测量精度：满量程的±0.3%

    • 国际防爆认证、卫生型认证

特征和规格

返回

Details

  • 测量原理

    绝压和表压

  • 特点/应用

    经济型压力变送器，压阻硅传感器采用金属膜片，适用卫生应用场合

  • 电源/通信

    10…30 VDC

  • 测量精度

    0.3%

  • 长期稳定性

    0.2% URL/年

  • 环境温度

    -40…+85 °C
    (-40…+185 °F)

  • 过程温度

    -10…+100°C
    (+14…+212°F)
    135°C，1小时
    (275°F，1小时）

  • 过程压力（绝压）/最大过压限定值

    160 bar (2400 psi)

  • 压力测量范围

    400 mbar…+40 bar
    (6...+600psi)

  • 过程连接

    螺纹：
    G1、M24

  • 卫生型过程连接

    DIN11851、
    卡箍、
    SMS、
    Varivent、
    通用接头

  • 通信

    4...20 mA
    IO- Link

  • 证书和认证

    ATEX、FM、CSA、IEC Ex、NEPSI、EAC

  • 设计认证

    EN 10204-3.1
    出厂检测报告
    除油脂清洗
    表面光洁度测量

  • 卫生型认证

    3A、EHEDG
    EG1935/ 2004

  • 测量原理

    绝压和表压

  • 特点

    经济型压力变送器，压阻硅传感器采用金属膜片，适用卫生应用场合

  • 供电电压

    10…30 VDC

  • 参考测量精度

    0.3 %

  • 长期稳定性

    0.2 % URL /年

  • 过程温度

    -10...+100 °C
    (+14...+212 °F)
    +135°C：1小时
    (+275 °F：1小时)

  • 环境温度

    -40…+85 °C
    (-40…+185 °F)

  • 传感器

    +400 mbar…+40 bar
    (+6...+600 psi)

  • 最大过压限定值

    160 bar (2400 psi)

  • 过程连接

    螺纹：
    G1、M24

  • 卫生型过程连接

    DIN11851、
    卡箍、
    SMS、
    Varivent、
    通用接头

  • 通信

    4...20 mA
    IO- Link

  • 证书和认证

    ATEX、FM、CSA、IEC Ex、NEPSI

  • 设计认证

    EN 10204-3.1出厂检测报告
    除油脂清洗
    表面光洁度测量

  • 卫生型认证

    3A、EHEDG
    EG1935/ 2004

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code 71280307

      霍斯曼接头M16

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Order code 71280349

      霍斯曼接头 NPTF1/2

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Order code 71114212

      M12航空插头，90度

      自连接 可用于: M12插头

    • Order code 71337274

      O型圈

      Consisting of: 5x O-ring 15,54x2,62 FKM,FDA. Usage: PMP23, PTP33B.

    • Order code 52023994

      过程转换接头M24- Clamp 1 1/2"

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024001

      过程转换接头M24- Clamp 1 1/2"，3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023995

      过程转换接头M24- Clamp 2"

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024002

      过程转换接头M24- Clamp 2"，3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023996

      过程转换接头M24- Variv.F DN32 PN40

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024003

      过程转换接头M24- Variv.F DN32 PN40，3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023999

      过程转换接头M24- DIN11851 DN40

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024006

      过程转换接头M24- DIN11851 DN40，3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52023997

      过程转换接头M24- Variv. N DN50 PN40

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52024004

      过程转换接头M24- Variv. N DN50 PN40，3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52024005

      过程转换接头M24- DIN11851 DN50，3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Abnahmepr黤zeugnis EN10204-3.1 Material

    • Order code 52026997

      过程转换接头M24- SMS 1-1/2"

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L

    • Order code 52026999

      过程转换接头M24- SMS 1-1/2"，3.1材质认证

      Exchange process connection Ceraphant T M24 female, O-ring 15,54x2,62mm, 316L Inspection cert. EN10204-3.1 material

    • Order code 52024267

      EPDM O型圈

      5x O-ring 15.54x2.62mm FDA, 3A compliant Ceraphant T process adapter

    • Order code 71100719

      EPDM 垫圈

      Process gasket universal adapter. Usage: FMB50, FMB70, PMC51, PMP23.

    • Order code 52023572

      密封垫圈

      Process gasket for universal process adapter Deltapilot S DB50L/DB50S Levelflex M FMP41C

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 52005087

      焊座，G1

      齐平式安装 材质: 316L. 可用于: PMP23, PMP51, PMP135, PTP33B/PTP35. 建议焊接时使用堵头

    • Order code 52010171

      焊座，G1，3.1材质认证

      Flush mount process connection PMP135 "M", PTP35 "BA", PMP45 "CD" Material: 316L Inspection cert. EN10204-3.1 material Correct installation only with dummy

    • Order code 52005272

      G1焊座保护堵头

      to avoid any deformation of nozzle 52005087 / 52010171 during welding

    • Order code 52005272

      G1焊座保护堵头

      to avoid any deformation of nozzle 52005087 / 52010171 during welding

    • Order code 52001051

      焊座，G1，d=60

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52011896

      焊座，G1，d=60 ，3.1材质认证

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71041381

      焊座M24 D65

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71041383

      焊座M24 D65，3.1材质认证

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 214880-0002

      Weld-in adapter UNI D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 52010174

      焊座, UNI D65，3.1材质认证

      Flush mount process connection FMI51/FMI52, FTI51/FTI52 "UPJ", FMP41C "UPK"/"UQK", PMC45 "HA", FMB70 "00" Universal adapter Core hole: 65mm Material: 316L Inspection cert. EN10204-3.1 material

    • Order code 52006262

      焊座, UNI D85

      Flush mount process connection FMI51/FMI52, FTI51/FTI52 "UPJ", FMP41C "UPK"/"UQK", PMC45 "HA", FMB70 "00" Universal adapter Core hole: 85mm Material: 316L

    • Order code 52010173

      焊座, UNI D85，3.1材质认证

      Flush mount process connection. Core hole: 85mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 71114210

      UNI D65/D85焊座保护堵头

      Material: brass. To avoid any deformation during welding of weld-in adapters UNI 6" 52006262/52010173 and 214880-0002/52010174.

    • Order code 52014472

      O型圈

      for weld-in adapter G1 (52001051) Liquiphant M "GW2" Liquiphant T "7", Liquicap M "GWJ", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for weld-in andapter G1, 316L 3.1 (52011896) Liquiphant M "GW2", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for sliding sleeve Soliphant T

    • Order code 71086102

      O型圈

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O型圈

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.
