Cerabar S PMP635

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

测量原理

绝压和表压
特点/应用

带薄膜密封的数字压力变送器，安全功能监控，模块化变送器设计
电源/通信

4...20mA HART：11,5...45V DC；Ex ia: 11,5...30V DC；Ex d[ia]: 13...30V DC；PROFIBUS PA/基金会现场总线：9...32V DC；Ex ia: 9...24V DC
测量精度

0,20%
长期稳定性

0,1% URL / 年
环境温度

-40...85℃
过程温度

-40...350℃
过程压力（绝压）/最大过压限定值

600bar
压力测量范围

1bar...400bar
主要接液部件

哈C合金，316L，钛，PTFE箔
过程连接

螺纹，法兰(DIN, ANSI)
最大测量距离

4000m H2O
通信

4 ... 20 mA HART，PROFIBUS PA，基金会现场总线
证书和认证

ATEX、FM、CSA、TIIS、SIL、NACE、EN10204-3.1
选项

数字显示，不锈钢外壳或铝质外壳
替代产品

PMP75
应用限制

改变密度

显示更多
显示更少

测量原理

绝压和表压
特点

膜片密封的数字式压力变送器，功能安全监控，模块化变送器设计
供电电压

4...20mA HART:11,5...45V DC，Ex ia: 11,5...30V DC，Ex d[ia]: 13...30V DC，
PROFIBUS PA /基金会现场总线:9...32V DC，Ex ia: 9...24V DC
参考测量精度

0,20%
长期稳定性

0,1% URL / 年
过程温度

-40+350℃
环境温度

-40...85℃
传感器

1bar...400bar
最大量程比

最大推荐为20:1
最大过压限定值

600 bar
过程连接

螺纹，法兰 (DIN, ANSI)
通信

4..20mA HART，PROFIBUS PA，基金会现场总线
证书和认证

ATEX、FM、CSA、TIIS、SIL、NACE、EN10204-3.1
替代产品

PMP75

显示更多
显示更少

文档/手册/软件

下载类型

过滤

Technical Information Cerabar S PMC 631, PMP 635.
Cerabar S with diaphragmseal
overload resistant with function monitoring. Communication using PROFIBUS-PA, HART,
INTENSOR
protocols.

技术信息(TI)
Cerabar S Operating Instructions PROFIBUS PA
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter

操作手册（BA）
Cerabar S FOUNDATION Fieldbus Operating Instructions, Software version 0.3
Cerabar S PMP731, PMC731, PMC631, PMP635, Pressure transmitter

操作手册（BA）
Cerabar S Operating Instructions HART, Software version 7.1
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter

操作手册（BA）
Mounting bracket instructions Cerabar S.
Mounting bracket.

Short Instruction (KA)

11/95

德语 , 英语 , 西班牙语 , French , 意大利语 , 荷兰语
Cable kit instructions Cerabar S.
Cable Kit. Installation cable with pressure equalisation tube.

Short Instruction (KA)

10/98

德语 , 英语 , 西班牙语 , French
Cerabar S PMC631, PMC731, PMP635, PMP731
Approval No.: EG 01 012

ATEX II 3 G Protection: EEx nA II T6

4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex 防爆说明(XA)
Safety Instructions Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
FOUNDATION Fieldbus
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2178 (ATEX)

Ex 防爆说明(XA)
Cerabar S PMP635
Approval No.: KEMA 97 ATEX 4467 X

ATEX II 1/2 G Protection: EEx d IIC T6...T5

4...20 mA HART, FOUNDATION Fieldbus

Ex 防爆说明(XA)
Cerabar S PMC631, PMC731, PMP635, PMP731
Approval No.: EG 01 012-b

ATEX II 3 D

4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex 防爆说明(XA)
Cerabar S PMC631, PMC635, PMP731, PMP635, PMP731
Approval No.: KEMA 97 ATEX 4500

ATEX II 1/2 G, II 2 G Protection: EEx ia IIC T6...T4

4...20 mA HART

Ex 防爆说明(XA)
Cerabar S PMP635, PMP731
Approval No.: KEMA 97 ATEX 4467

ATEX II 2 G Protection: EEx d IIC T6...T5

4...20 mA HART, FOUNDATION Fieldbus

Ex 防爆说明(XA)
Safety Instructions Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PROFIBUS PA
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2178 (ATEX)

Ex 防爆说明(XA)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PTB Ex-97.D.2099

PROFIBUS PA, FOUNDATION Fieldbus

证书(ZE)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PTB Ex-97.D.2099

PROFIBUS PA, FOUNDATION Fieldbus

证书(ZE)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
CSA

Drawing No.: 960377-2011 C

Drawing Type: Control Drawing

PROFIBUS PA

证书FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
CSA

Drawing No.: 960364-2075 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

证书FM/CSA (ZD)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
CSA

Drawing No.: 960338-2030 B

Drawing Type: Control Drawing

4...20 mA HART

证书FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
FM

Drawing No.: 960377-1011 C

Drawing Type: Control Drawing

PROFIBUS PA

证书FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
FM

Drawing No.: 960364-1075 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

证书FM/CSA (ZD)
Interoperability Statement: Cerabar S, FOUNDATION fieldbus
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Cerabar S, FOUNDATION fieldbus Pressure Transmitter, Device Revision: 2,
DD Revision: 3, Device ID: 0x1007, Software Revision: 1.71

特殊资料(SD)
Interoperability Statement: Cerabar S, HART
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Cerabar S, HART Pressure Transmitter, Device Revision: 20, Device ID:
0x18, Software Revision: 2.00

特殊资料(SD)
Cerabar S, Cerabar M, Deltabar S PMC631, PMP635, PMP46, PMP48, FMD630, FMD633
Erklärung zur Druckgeräterichtlinie

Declaration to Pressure Equipment Directive

Déclaration relative à la Directive Equipements sous Pression

特殊资料(SD)
Cerabar S PMC 731/631, PMP 731/635 Functional safety manual.
Pressure Transmitter
cerabar S PMC 731/631
cerabar S PMP 731/635
with 4...20 mA output signal
Functional safety manual.

特殊资料(SD)
Cerabar S PMP731/635, PMC731/631
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

特殊资料(SD)
Juice application: Juice pasteuriser, Application 4
Meas. point 3: pressure measurement pasteuriser

行业解决方案(SO)

英语
An overview of IEC61508 and its implications for the design and operation of process plants
Presentation of Eric Gilchrist (Principal Consultant
Safety Critical Systems Group ABB Limited) on the E+H sponsered Technical
Training Seminar "Safety and Environmental issues in the Oil and Gas Industry"

行业解决方案(SO)

英语
Dairy application: CIP unit, Application 10
Meas. point 8: pressure measurement CIP-return line

行业解决方案(SO)

英语
Brewery application: High Gravity unit, Application 3
Meas. point 3: pressure measurement

行业解决方案(SO)

英语
Dairy application: Milk and fat standardisation, Application 3
Meas. point 3: pressure measurement to the separator

行业解决方案(SO)

英语
Dairy application: Pasteurisation, Application 5
Meas. point 4: pressure measurement at the pasteuriser

行业解决方案(SO)

英语
Brewery application: CIP unit, Application 10
Meas. point 8: pressure measurement CIP-return line

行业解决方案(SO)

英语
Dairy application: Yoghurt processing, Application 4
Meas. point 3: pressure measurement at the homogeniser

行业解决方案(SO)

英语
Juice application: Concentrate storage, Application 5
Meas. point 3: level measurement concentrate tank
Application 2
Cerabar

行业解决方案(SO)

英语
Juice application: Juice pasteuriser, Application 9
Meas. point 8: phase separation in the pasteuriser

行业解决方案(SO)

英语
Juice application: CIP unit, Application 10
Meas. point 8: pressure measurement CIP-return line

行业解决方案(SO)

英语
Brewery application: Fermentation and Maturation, Application 4
Meas. point 3: level measurement fermentation and maturation tanks
Application 2
Pressure

行业解决方案(SO)

英语
Brewery application: Brewhouse, Application 8
Meas. point 7: steam pressure measurement

行业解决方案(SO)

英语
Dairy application: Yoghurt processing, Application 2
Meas. point 1: level measurement at the yoghurt buffer tank
Application 2: Cerabar

行业解决方案(SO)

英语
Juice application: Juice concentration, Application 1
Meas. point 1: vacuum measurement during juice concentration

行业解决方案(SO)

英语
ATEX update with a view to implementation in 2003
Presentation of David Blissett (MTL) on the E+H sponsered Technical Training Seminar "Safety and Environmental issues in the Oil and
Gas Industry"

行业解决方案(SO)

英语
Juice application: Juice pasteuriser, Application 7
Meas. point 6: vacuum measurement deaerator

行业解决方案(SO)

英语
Brewery application: Wort cooler, Application 3
Meas. point 2: Pressure measurement wort

行业解决方案(SO)

英语
Dairy application: Milk powder processing, Application 4
Meas. point 4: vacuum measurement at the falling film evaporator

行业解决方案(SO)

英语
Pressure Equipment Directive (PED)
Its effects on the end user.
Presentation of Dr. Klotz-Engmann (Endress+Hauser) on the E+H sponsered Technical Training Seminar
"Safety and Environmental issues in the Oil and Gas Industry"

行业解决方案(SO)

英语
Brewery application: Filtration and Stabilisation, Application 5
Meas. point 5: in and outcoming pressure measurement sheetfilter

行业解决方案(SO)

英语
Brewery application: Bright beer buffer tanks, Application 4
Meas. point 3: level measurement at the bright beer tanks
Application 2
pressure

行业解决方案(SO)

英语
Brewery application: Fermentation and Maturation, Application 9
Meas. point 7: suction pressure measurement in the NH3-feed

行业解决方案(SO)

英语
Juice application: Juice pasteuriser, Application 8
Meas. point 7: level switch deaerator

行业解决方案(SO)

英语
Juice application: Sugar dissolving, Application 7
Meas. Point 7: steam pressure measurement

行业解决方案(SO)

英语
Dairy application: UHT unit, Application 5
Meas. point 4: pressure measurement at the UHT

行业解决方案(SO)

英语
Dairy application: Butter processing, Application 4
Meas. point 2: level measurement of culture
Application 2: Cerabar

行业解决方案(SO)

英语
Dairy application: Butter processing, Application 5
Meas. point 3: vacuum measurement during deaeration

行业解决方案(SO)

英语
Dairy application: Butter processing, Application 2
Meas. point 1: level measurement at the cream buffer tank
Application 2: Cerabar

行业解决方案(SO)

英语
Dairy application: UHT unit, Application 2
Meas. point 1: level measurement buffer tank
Application 2: Cerabar

行业解决方案(SO)

英语
Dairy application: Cheese processing, Application 2
Meas. point 1: level measurement at the milk buffer tank
Application 2: Cerabar

行业解决方案(SO)

英语
Brewery application: Bright beer buffer tanks, Application 2
Meas. point 2: pressure measurement beerline

行业解决方案(SO)

英语
Juice application: Juice pasteuriser, Application 2
Meas. point 1: level measurement buffer tank
Application 2: Cerabar

行业解决方案(SO)

英语
Dairy application: Yoghurt processing, Application 7
Meas. point 6: pressure measurement at the evaporator inlet

行业解决方案(SO)

英语
Juice application: Mixing batch, Application 4
Meas. point 3: level measurement mixing tanks
Application 2: Cerabar

行业解决方案(SO)

英语
Universal Solutions in Measurement and Automation
This brochure provides an overview of Endress+Hauser process control instrumentation technologies. Detailed technical information is
available in hard
copy or CD-ROM format from E+H or from your local representative.

竞争力手册(CP)

05/00

英语
Tough and reliable
With a choice of ceramic or polysilicon capacitive sensors, Cerabar S pressure transmitters from Endress+Hauser, Greenwood, Indiana,
handle a wide range of pressures and environments. Ceramic diaphragms withstand extremely corrosive and abrasive conditions from
full vacuum up to 600 psi, while the touch polysilicon sensors measure up to 6000 psi.

特殊推广(SP)

英语
Pressure measurement with dry running vacuum pumps
Common vacuum pumps require fuel such as oil, water or steam which, in the end, gives rise to costs due to their use or disposal.
Thus the chemical and pharmaceutical industries often use dry-running vacuum pumps. The dry-running Sterling vacuum pump "Sihidry"
was presented at last year's Achema by the SIHI-Halberg sales association. Since then the first practical results are now
available.

特殊推广(SP)

英语
GSD Single, GSD_EH_PA_PR_Cerabar_0x1501_V02_00_PALIB, 14.04.2014 (Pressur e, Cerabar S, 0x1501)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

2.00.00

Language neutral
GSD Single, GSD_EH_PA_PR_Cerabar_0x1501_V01_00_PALIB, 14.04.2014 (Pressur e, Cerabar S, 0x1501)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

1.00.00

Language neutral
EDD Single, PDM_HART_PR_CerabarS_0x0007_0x05_0x01, 06.11.2018 (Pressure, Cerabar S, 0x0007)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_PR_CerabarS_0x1007a_0x02_0x03_FFLIB_ITK4_60, 09.11.2016 (Pressure, Cerabar S, 0x1
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 4.60

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_PR_CerabarS_0x1007a_0x02_0x01_FFLIB_ITK4_01, 09.11.2016 (Pressure, Cerabar S, 0x1
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 4.01

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_PR_CerabarS_0x1501_0x01_0x01, 04.01.2019 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_PR_CerabarS_0x1501_0x01_0x02, 04.01.2019 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

PDM Version: 6.0 SP5, 8.1

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_PR_CerabarS_0x0007_0x07_0x01, 06.11.2018 (Pressure, Cerabar S, 0x0007)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, CerabarS_PMxx3x_PA_V1_1, 20.10.2020 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, CerabarS_PMxx3x_PA_V1_0, 20.10.2020 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, CerabarS_PMxx3x_PA_V2_0___V2_2, 20.10.2020 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, CerabarS_PMxx3x_V2_x, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, CerabarS_PMxx3x_V5_0, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, CerabarS_PMxx3x_V7_1, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, CerabarS_PMxx3x_V3_x, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, CerabarS_PMxx3x_V1_x, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
Faceplate Library, PRM_FF_Package_Pressure_1_05_00, 29.05.2018 (Pressure)
FOUNDATION Fieldbus H1,

Plant Resource Manager Version: R3.02

Faceplate

1.05.00

Language neutral
Product Family: Cerabar S
产品型号: PMC631-, PMP635-, PMC731-, PMP731-
地区/国家: International
认证机构: Fieldbus Foundation
软件版本号: DEVICE REV. 02, DD-ITK 4.01

Fieldbus Conformance

英语

显示更多
显示更少

附件/备件

???显示为PDF???

搜索

过滤

Order code

Specification

14
- Nr 14 Order code 013990-0000

  Blind plug, NPT1/2 h16.5 LD-PE

  Sealing plug NPT1/2.

  显示详细信息隐藏详细信息
- Nr 14 Order code 015797-2000

  Blind plug, M20 h12/6, LD-PE

  Sealing plug M20.

  显示详细信息隐藏详细信息
- Nr 14 Order code 016137-0012

  Blind plug, G1/2A h12/6 HD-PE

  Sealing plug G1/2.

  显示详细信息隐藏详细信息
21
- Nr 21 Order code 013982-0000

  O-ring 61,6 x 2,62 NBR 70 +PTFE

  Usage: cover T4.

  显示详细信息隐藏详细信息
70
- Nr 70 Order code 919806-0000

  Mount.set, wall-/pipe-2", VA, lipht sep

  Usage: wall/pipe mounting. Material: 304.

  显示详细信息隐藏详细信息
- Order code

  Phase out spares

  显示详细信息隐藏详细信息
- Order code

  12/2010

  显示详细信息隐藏详细信息

显示更多
显示更少

老产品
- PMC635

替代产品

F

L

E

X
Cerabar S PMP75

数字压力变送器采用膜片密封，主要用于过程工业液体的压力、液位、体积和质量的测量。
更多信息

价格核算中…

暂时无价格信息

登录后显示价格

from CHF 803.-
F

L

E

X

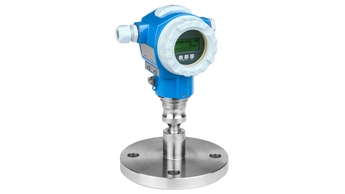

Cerabar S PMP75

Measurement: Pressure, piezoresistive. Diaphragm seal. Application: pressure, level. Membrane: Metal, welded. Process connection: minimum oil volume. :: Minimized temperature effect. :: High reliability through process monitoring. :: Enhanced mechanical integrity. :: Modular.
更多信息

价格核算中…

暂时无价格信息

登录后显示价格

from CHF 803.-

简易产品
轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

什么是FLEX产品选型

标准产品
测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

什么是FLEX产品选型

高端产品
功能丰富，适用范围广

仪表技术性能

选型便捷程度

什么是FLEX产品选型

定制产品
专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

什么是FLEX产品选型

FLEX产品选型	仪表技术性能	选型便捷程度
F L E X Fundamental选型完美胜任基本测量任务	仪表技术性能	选型便捷程度
F L E X Lean选型轻松应对关键工艺的测量挑战	仪表技术性能	选型便捷程度
F L E X Extended选型创新技术助力工艺流程优化	仪表技术性能	选型便捷程度
F L E X Xpert选型满足严苛工况的特殊测量要求	仪表技术性能	选型便捷程度特殊选型

获取FLEX产品选型的详细信息

Cerabar S PMP635

特征和规格

Details

测量原理

特点/应用

电源/通信

测量精度

长期稳定性

环境温度

过程温度

过程压力（绝压）/最大过压限定值

压力测量范围

主要接液部件

过程连接

最大测量距离

通信

证书和认证

选项

替代产品

应用限制

测量原理

特点

供电电压

参考测量精度

长期稳定性

过程温度

环境温度

传感器

最大量程比

最大过压限定值

过程连接

通信

证书和认证

替代产品

文档/手册/软件

附件/备件

老产品

替代产品

Cerabar S PMP75

Cerabar S PMP75
