Deltabar S PMD235

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

测量原理

差压
特点/应用

数字压力变送器，电容探头带陶瓷膜片，安全功能监控及薄膜检测，模块化的变送器设计
电源/通信

4...20mA/HART：11,5...45V DC，Ex: 11,5...30V DC，PROFIBUS PA/基金会现场总线：9...32V DC，Ex: 9...24V DC
测量精度

"0,1% "PLATINUM" 0,05%"
长期稳定性

0,1% URL / 年，0,25% URL / 5年
环境温度

-40...85℃
过程温度

-40...120℃
过程压力（绝压）/最大过压限定值

420bar
压力测量范围

10mbar...40bar
主要接液部件

哈C合金、316L、蒙氏合金、钛
过程连接

"1/4-18NPT，RC1/4"
最大测量距离

400m H2O
通信

4 ... 20 mA，HART，PROFIBUS PA，基金会现场总线
证书和认证

ATEX、FM、CSA、TIIS、SIL、NACE、WHG/溢出保护，EN10204-3.1
选项

数字显示，不锈钢外壳或铝外壳
替代产品

PMD75
应用限制

改变密度

显示更多
显示更少

测量原理

差压
产品标题

数字压力变送器，电容探头带陶瓷膜片，安全功能监控及薄膜检测，模块化的变送器设计
最大测量误差

"0,1% "PLATINUM" 0,05%"
最大过程压力

最大420bar
介质温度范围

温度随管道压力的变化而变化
显示/操作

可选项
输出

HART、PROFIBUS PA，基金会现场总线
数字通信

HART、PROFIBUS PA、基金会现场总线
防爆认证

ATEX，FM，CSA，TIIS

显示更多
显示更少

测量原理

差压
产品标题

数字压力变送器，电容探头带陶瓷膜片，安全功能监控及薄膜检测，模块化的变送器设计
最大测量误差

"0,1% "PLATINUM" 0,05%"
最大过程压力

最大420bar
介质温度范围

温度随管道压力的变化而变化
显示/操作

可选项
输出

4 ... 20mA、HART、PROFIBUS PA、基金会现场总线
数字通信

HART、PROFIBUS PA、基金会现场总线
防爆认证

ATEX，FM，CSA，TIIS

显示更多
显示更少

测量原理

差压
产品标题

数字压力变送器，电容探头带陶瓷膜片，安全功能监控及薄膜检测，模块化的变送器设计
最大测量误差

"0,1% "PLATINUM" 0,05%"
最大过程压力

最大420bar
介质温度范围

温度随管道压力的变化而变化
显示/操作

可选项
输出

4 ... 20mA、HART、PROFIBUS PA、基金会现场总线
数字通信

HART、PROFIBUS PA、基金会现场总线
防爆认证

ATEX，FM，CSA，TIIS

显示更多
显示更少

测量原理

差压
特点

数字压力变送器，电容探头带陶瓷膜片，安全功能监控及薄膜检测，模块化的变送器设计
供电电压

4...20mA / HART:
11,5...45V DC
Ex: 11,5...30V DC
PROFIBUS PA /
FOUNDATION Fieldbus:
9...32V DC
Ex: 9...24V DC
参考测量精度

"0,1% "PLATINUM" 0,05%"
长期稳定性

0,1% URL / 年，0,25% URL / 5年
过程温度

-40...120℃
环境温度

-40...85℃
传感器

10mbar...40bar
最大量程比

最大100:1
最大过压限定值

420 bar
过程连接

"1/4-18NPT，RC1/4"
通信

4 ... 20mA、HART、PROFIBUS PA、基金会现场总线
证书和认证

ATEX，FM，CSA，TIIS，SIL，NACE，WHG/溢出保护，EN10204-3.1
替代产品

PMD75

显示更多
显示更少

文档/手册/软件

下载类型

过滤

Technical Information Deltabar S
Deltabar S PMD230, PMD235, FMD230, FMD630, FMD633, Differential pressure
transmitter

技术信息(TI)
Operating Instructions Deltabar S HART/INTENSOR.
Deltabar S with ceramic and silicon sensors overload resistant with funtion monitoring.
(Software version 7.1)

操作手册（BA）
Deltabar S FOUNDATION Fieldbus Operating Instructions, Software version 0.3
Deltabar S FMD76, FMD77, FMD78, PMD70, PMD75, Differential pressure
transmitter

操作手册（BA）
Operating Instructions Deltabar S PROFIBUS-PA Differential Pressure Measurement
Deltabar S with ceramic and silicon sensors overload resistant with
funtion monitoring.

操作手册（BA）
Deltabar S FMD230, FMD630, FMD633, PMD230, PMD235
Approval No.: EG 01 011

ATEX II 3 G Protection: EEx nA II T6

4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex 防爆说明(XA)
Safety Instructions Deltabar S FMD230, FMD630, FMD633, PMD230, PMD235
4...20 mA HART
II 1/2 G, II 2 G EEx ia IIC T6...T4
KEMA 97 ATEX 4495 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Deltabar S FMD230, FMD630, FMD633, PMD230, PMD235
FOUNDATION Fieldbus
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2180 (ATEX)

Ex 防爆说明(XA)
Deltabar S FMD630, FMD633, PMD230, PMD235
Approval No.: EG 04 008-a

ATEX II 3 D

4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex 防爆说明(XA)
Safety Instructions Deltabar S FMD230, FMD630, FMD633, PMD230, PMD235
PROFIBUS PA
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2180 (ATEX)

Ex 防爆说明(XA)
Safety Instructions Deltabar S FMD630, FMD633, PMD235
II 2 G EEx d IIC T6...T5
PTB 98 ATEX 1060 X (ATEX)

Ex 防爆说明(XA)
Deltabar S FMD630, FMD633, PMD235
KEMA Ex-96.D.0657 X

4...20 mA HART

证书(ZE)
Deltabar S FMD630, FMD633, PMD235
Z-65.11-104 (DIBt)

4...20 mA HART

证书(ZE)
Deltabar S FMD630, FMD633, PMD235
PTB Ex-96.D.1071 X

4...20 mA HART, FOUNDATION Fieldbus

证书(ZE)
Deltabar S FMD230, FMD630, FMD633, PMD230, PMD235
PTB Ex-97.D.2123

PROFIBUS PA, FOUNDATION Fieldbus

证书(ZE)
Deltabar S FMD630-D, FMD633-D, PMD235-D
PTB Ex-97.D.2064

4...20 mA HART

证书(ZE)
Deltabar S FMD230, FMD630, FMD633, PMD230, PMD235
PTB Ex-97.D.2123

PROFIBUS PA, FOUNDATION Fieldbus

证书(ZE)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
FM

Drawing No.: 960364-1075 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

证书FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
FM

Drawing No.: 960377-1011 C

Drawing Type: Control Drawing

PROFIBUS PA

证书FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
CSA

Drawing No.: 960377-2011 C

Drawing Type: Control Drawing

PROFIBUS PA

证书FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
CSA

Drawing No.: 960364-2075 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

证书FM/CSA (ZD)
Interoperability Statement: Deltabar S, HART
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Deltabar S, HART Pressure Transmitter, Device Revision: 20, Device ID:
0x17, Software Revision: 2.00

特殊资料(SD)
Cerabar S, Cerabar M, Cerabar T, Deltabar S PMP731, PMP41, PMP131, PMD235
Erklärung zur Druckgeräterichtlinie

Declaration to Pressure Equipment Directive

Déclaration relative à la Directive Equipements sous Pression

特殊资料(SD)
Deltabar S PMD 230 / 235, FMD 230 / 630 / 633 Functional safety manual.
Differential Pressure Transmitter
deltabar S PMD 230/235
deltabar S FMD 230/630/633
with 4...20 mA output signal
Functional
safety manual.

特殊资料(SD)
Interoperability Statement: Deltabar S, FOUNDATION fieldbus
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Deltabar S, FOUNDATION fieldbus Pressure Transmitter, Device Revision:
2, DD Revision: 3, Device ID: 0x1009, Software Revision: 1.71

特殊资料(SD)
Deltabar S PMD230/235, FMD230/630/633
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

特殊资料(SD)
Dairy application: UHT unit, Application 6
Meas. point 5: level measurement at the sterile buffer tank

行业解决方案(SO)

英语
Juice application: Sugar dissolving, Application 5
Meas. point 5: pressure measurement crystal filter

行业解决方案(SO)

英语
Brewery application: Filtration and Stabilisation, Application 8
Meas. point 8: differential pressure measurement candle filter

行业解决方案(SO)

英语
Brewery application: Brewhouse, Application 11
Meas. point 9: Differential pressure measurement lautertun

行业解决方案(SO)

英语
Dairy application: Pasteurisation, Application 6
Meas. point 5: level measurement at the sterile buffer tank

行业解决方案(SO)

英语
Juice application: Juice pasteuriser, Application 6
Meas. point 5: level measurement deaerator

行业解决方案(SO)

英语
Brewery application: Filtration and Stabilisation, Application 6
Meas. point 6: differential pressure measurement sheetfilter

行业解决方案(SO)

英语
Komplettpaket Druckmesstechnik
Ein Ansprechpartner - spart Zeit und reduziert Kosten

竞争力手册(CP)

05/15

德语
GSD Single, GSD_EH_PA_PR_Deltabar_0x1504_V02_00_PALIB, 14.04.2014 (Pressu re, Deltabar S, 0x1504)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

2.00.00

Language neutral
GSD Single, GSD_EH_PA_PR_Deltabar_0x1504_V01_00_PALIB, 14.04.2014 (Pressu re, Deltabar S, 0x1504)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

1.00.00

Language neutral
EDD Single, EH_FF_PR_DeltabarS_0x1009a_0x02_0x03_FFLIB_ITK4_60, 09.11.201 6 (Pressure, Deltabar S, 0
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 4.60

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_PR_DeltabarS_0x0009_0x05_0x01, 06.11.2018 (Pressure, Deltabar S, 0x0009)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_PR_DeltabarS_0x1504_0x01_0x01, 04.01.2019 (Pressure, Deltabar S, 0x1504)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_PR_DeltabarS_0x1504_0x01_0x02, 04.01.2019 (Pressure, Deltabar S, 0x1504)
PROFIBUS PA,

PDM Version: 6.0 SP5, 8.1

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_PR_DeltabarS_0x0009_0x07_0x01, 06.11.2018 (Pressure, Deltabar S, 0x0009)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_PR_DeltabarS_0x1009a_0x02_0x01_FFLIB_ITK4_01, 09.11.201 6 (Pressure, Deltabar S, 0
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 4.01

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, DeltabarS_xMxx3x_PA_V2_0___V2_2, 08.07.2019 (Pressure, Deltabar S, 0x1504)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, DeltabarS_xMDx3x_PA_V1_1, 08.07.2019 (Pressure, Deltabar S, 0x1504)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, DeltabarS_xMDx3x_PA_V1_0, 08.07.2019 (Pressure, Deltabar S, 0x1504)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, DeltabarS_xMDx3x_V2_x, 08.07.2019 (Pressure, Deltabar S, 0x0009)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, DeltabarS_xMDx3x_V7_1, 08.07.2019 (Pressure, Deltabar S, 0x0009)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, DeltabarS_xMDx3x_V5_0, 08.07.2019 (Pressure, Deltabar S, 0x0009)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, DeltabarS_xMDx3x_V1_x, 08.07.2019 (Pressure, Deltabar S, 0x0009)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
Faceplate Library, PRM_FF_Package_Pressure_1_05_00, 29.05.2018 (Pressure)
FOUNDATION Fieldbus H1,

Plant Resource Manager Version: R3.02

Faceplate

1.05.00

Language neutral

显示更多
显示更少

附件/备件

???显示为PDF???

搜索

过滤

Order code

Specification

16
- Nr 16 Order code 919584-0000

  Adapter M26 > Pg13.5, AlMgSiP

  Usage: housing aluminium.

  显示详细信息隐藏详细信息
- Nr 16 Order code 919584-0001

  Adapter M26 > M20, AlMgSiPb

  Usage: housing aluminium.

  显示详细信息隐藏详细信息
- Nr 16 Order code 919584-0002

  Adapter M26 > NPT1/2, AlMgSiPb

  Usage: housing aluminium.

  显示详细信息隐藏详细信息
- Nr 16 Order code 919584-0003

  Adapter M26 > G1/2, AlMgSiPb

  Usage: housing aluminium.

  显示详细信息隐藏详细信息
- Nr 16 Order code 919584-0012

  Adapter M26 > NPT1/2, 304

  Usage: housing stainless steel, Cerabar S, Deltabar S.

  显示详细信息隐藏详细信息
14
- Nr 14 Order code 013990-0000

  Blind plug, NPT1/2 h16.5 LD-PE

  Sealing plug NPT1/2.

  显示详细信息隐藏详细信息
- Nr 14 Order code 015797-2000

  Blind plug, M20 h12/6, LD-PE

  Sealing plug M20.

  显示详细信息隐藏详细信息
- Nr 14 Order code 016137-0012

  Blind plug, G1/2A h12/6 HD-PE

  Sealing plug G1/2.

  显示详细信息隐藏详细信息
- Order code 007169-0000

  Adhesive LOCTITE 638, thread til 1-1/4

  显示详细信息隐藏详细信息
21
- Nr 21 Order code 013982-0000

  O-ring 61,6 x 2,62 NBR 70 +PTFE

  Usage: cover T4.

  显示详细信息隐藏详细信息
57
- Nr 57 Order code 016795-0000

  O-ring 58,0 x 3,0 FKM 70 (-40°C)

  Usage: PMD75.

  显示详细信息隐藏详细信息
- Nr 57 Order code 016795-0001

  O-Ring 58,0 x 3,0 NBR 90

  Usage: PMD75.

  显示详细信息隐藏详细信息
- Order code 943165-1100

  Air vent valve (1x) NPT1/4-18 SS316L

  Consists of: valve spindle, 316L. Valve bush NPT1/4, 316L.

  显示详细信息隐藏详细信息
- Order code 943165-1101

  Air vent valve (1x) NPT1/4"AlloyC276

  Consists of: valve spindle, Alloy. Valve bush NPT1/4, Alloy.

  显示详细信息隐藏详细信息
- Order code 943165-0200

  Blind tap (2x) NPT1/4, 316L

  2 pieces. Usage: PMD75.

  显示详细信息隐藏详细信息
- Order code 943165-0201

  Blind tap (2x) NPT1/4, Alloy

  2 pieces.

  显示详细信息隐藏详细信息
- Order code

  Phase out spares

  显示详细信息隐藏详细信息
- Order code

  12/2010

  显示详细信息隐藏详细信息

显示更多
显示更少

老产品
- PMD130

替代产品
- Deltabar S PMD75

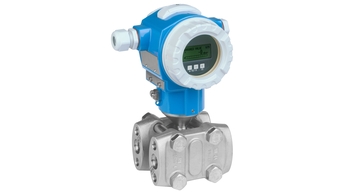

  Differential pressure transmitter with metal sensor for continuous measurement of pressure differences in liquids, vapors, gases and dusts. Used in the environmental and the process industries.
  更多信息

Deltabar S PMD235

特征和规格

Details

测量原理

特点/应用

电源/通信

测量精度

长期稳定性

环境温度

过程温度

过程压力（绝压）/最大过压限定值

压力测量范围

主要接液部件

过程连接

最大测量距离

通信

证书和认证

选项

替代产品

应用限制

测量原理

产品标题

最大测量误差

最大过程压力

介质温度范围

显示/操作

输出

数字通信

防爆认证

测量原理

产品标题

最大测量误差

最大过程压力

介质温度范围

显示/操作

输出

数字通信

防爆认证

测量原理

产品标题

最大测量误差

最大过程压力

介质温度范围

显示/操作

输出

数字通信

防爆认证

测量原理

特点

供电电压

参考测量精度

长期稳定性

过程温度

环境温度

传感器

最大量程比

最大过压限定值

过程连接

通信

证书和认证

替代产品

文档/手册/软件

附件/备件

老产品

替代产品

Deltabar S PMD75
