Proline Promass P 300
科里奥利质量流量计

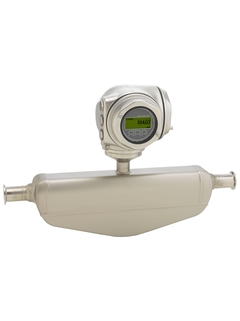

产品图片：科里奥利质量流量计 Proline Promass P 300 / 8P3B，适用于生命科学行业 ©Endress+Hauser

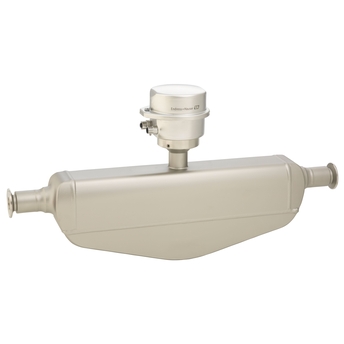

Proline Promass P 300，适用于生命科学行业

科里奥利流量测量原理

  • 产品图片：科里奥利质量流量计 Proline Promass P 300 / 8P3B，适用于生命科学行业

生命科学行业中的流量测量专家，搭配超紧凑型一体式变送器

Promass P是生命科学行业的无菌条件下的专用流量计。适用于要求严格符合准则和法规要求的生物技术应用。与一体式变送器配套使用，Promass P 300操作灵活，系统集成便捷：在仪表的同一侧接线、远程显示、改进的连接方式。Heartbeat Technology (心跳技术)确保始终合规，保证过程安全。

附加组件

  • 优势

    • 最高过程质量：完全满足行业要求

    • 较少过程测量点：多参数测量(流量、密度、温度)

    • 节省安装空间：无前/后直管段长度要求

    • 完整查看过程信息和诊断信息：提供多种用户自定义输入/输出组合方式和现场总线

    • 降低复杂性和多样性：用户自定义输入/输出功能

    • 自带验证功能：内置Heartbeat Technology (心跳技术)

  • 应用领域

    • 测量原理不受流体物理特性的影响(例如：粘度和密度)

    • 生命科学行业的无菌条件下的专用流量计。

    仪表特点

    • ASME BPE认证、3-A认证和EHEDG认证，低铁素体含量

    • 测量管材质：不锈钢1.4435 (316L)，电抛光处理

    • CIP/SIP清洗后能够快速恢复

    • 一体式卫生型双腔室外壳，IP69，最多带3路输入/输出

    • 背光显示、触摸键控制和WLAN访问

    • 提供分离型显示单元

特征和规格

返回

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Specialist for life sciences with a compact, easily accessible transmitter. Dedicated to applications under sterile conditions in the life sciences industry.

  • 传感器特点

    Highest process quality – fully compliant to industry requirements. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. ASME BPE, 3-A and EHEDG conform & low delta ferrite. Electropolished measuring tube in 1.4435 (316L).

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os. Backlit display with touch control and WLAN access.

  • 公称口径范围

    DN 8 to 50 (⅜ to 2")

  • 接液部件材质

    Measuring tube: 1.4435 (316L)
    Connection: 1.4435 (316L); 1.4404 (316/316L)

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • 最大测量误差

    Mass flow (liquid): ±0.10 %
    Volume flow (liquid): ±0.10 %
    Mass flow (gas): ±0.50 %
    Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 70 000 kg/h (0 to 2570 lb/min)

  • 最大过程压力

    PN 40, Class 150, 20K

  • 介质温度范围

    Standard: –50 to +150 °C (–58 to +302 °F)
    Option: –50 to +205 °C (–58 to +401 °F)

  • 环境温度范围

    Standard: –40 to +60 °C (–40 to +140 °F)
    Option: –50 to +60 °C (–58 to +140 °F)

  • 传感器外壳材质

    1.4301 (304), corrosion resistant

  • 变送器外壳材质

    AlSi10Mg, coated; stainless steel for hygienic transmitter design

  • 防护等级

    IP66/67, type 4X enclosure
    IP69

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available"

  • 输出

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • 输入

    Status input
    4-20 mA input

  • 数字通信

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • 电源

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • 防爆认证

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

  • 产品安全性

    CE, C-tick, EAC marking

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • 压力认证和证书

    PED, CRN

  • 材料证书

    3.1 material

  • 卫生型认证和证书

    3-A, EHEDG, ASME BPE, ISPE, cGMP

  • 测量原理

    科里奥利质量流量

  • 产品标题

    生命科学行业中的流量测量专家，搭配超紧凑型一体式变送器。生命科学行业的无菌条件下的专用流量计。

  • 测量原理

    科里奥利质量流量

  • 产品标题

    生命科学行业中的流量测量专家，搭配超紧凑型一体式变送器。生命科学行业中无菌条件下使用的专用流量计。

  • 传感器特点

    最高过程质量：完全满足行业要求。更少的过程测量点：多变量测量（流量、密度、温度）。所需安装空间小：无前后直管段长度要求。ASME BPE认证、3-A认证和EHEDG认证，低铁素体含量。1.4435 (316L)材质的测量管经过电抛光处理。

  • 变送器特点

    提供完整的过程信息和诊断信息：多种用户自行组合的I/O接口和现场总线。降低了复杂性和可变性：用户自定义I/O接口。自校验：Heartbeat Technology（心跳技术）。紧凑的双腔室外壳，IP69防护等级，最多允许连接3路输入/输出。背光显示，按键操作和WLAN访问。

  • 公称口径范围

    DN 8...50 (⅜...2")

  • 接液部件材质

    测量管：1.4435 (316L)
    连接部件：1.4435 (316L)、1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量（液体）：±0.10 %
    体积流量（液体）：±0.10 %
    质量流量（气体）：±0.50 %
    密度（液体）：±0.0005 g/cm³

  • 测量范围

    0...70 000 kg/h (0...2570 lb/min)

  • 最大过程压力

    PN 40，Cl. 150，20K

  • 介质温度范围

    标准：–50...+150 °C (–58...+302 °F)
    可选：–50...+205 °C (–58...+401 °F)

  • 环境温度范围

    标准：–40...+60 °C (–40...+140 °F)
    可选：–50...+60 °C (–58...+140 °F)

  • 传感器外壳材质

    1.4301 (304)，耐腐蚀

  • 变送器外壳材质

    铝合金AlSi10Mg涂层；卫生型不锈钢变送器

  • 防护等级

    IP66/67，type 4X
    IP69

  • 显示/操作

    四行背光显示，触摸键操作（外部操作）
    通过现场显示屏和调试软件设置
    提供分离型显示单元

  • 输出

    3路输出：
    4...20 mA HART（有源/无源）
    4...20 mA WirelessHART
    4...20 mA（有源/无源）
    脉冲/频率/开关量输出（有源/无源）
    双脉冲输出（有源/无源）
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC（非危险区）

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准，允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定（符合ISO/IEC 17025标准）
    Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

  • 压力认证和证书

    PED、CRN

  • 材料证书

    3.1材料证书

  • 卫生型认证和证书

    3-A、EHEDG、ASME BPE、ISPE

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Specialist for life sciences with a compact, easily accessible transmitter. Dedicated to applications under sterile conditions in the life sciences industry.

  • 卫生型认证和证书

    cGMP

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 31
  • 39
    • Nr 39 Order code 71185788

      T-DAT模块

      Usage: Promag/Promass 100/300/500, 500 digital, Prosonic Flow E 100, Prosonic Flow 300, 500 digital, Promag 400(C). (C) = generation index C.

  • 33
  • 37
    • Nr 37 Order code 71323010

      模块盒, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 34
  • 37
    • Nr 37 Order code 71323011

      模块盒, 300, Non-haz

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 46
  • 35
  • 45
    • Nr 45 Order code 71323073

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

  • 50
  • 45
    • Nr 45 Order code 71323074

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option B = EtherNet, PROFINET. Consists of: 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71327818

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323075

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323076

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

    • Nr 45 Order code 71327819

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

  • 49
    • Nr 49 Order code 71323079

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment with remote display DKX001. Consists of: 1x connection terminal 4-Pol.

  • 20
    • Nr 20 Order code 71323016

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323017

      盖组件

      Usage: Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 21
    • Nr 21 Order code 71323018

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 HNBR.

    • Nr 21 Order code 71323019

      盖组件

      Usage: Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Promass/Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71323020

      铝盖组件 玻璃视窗

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323021

      盖组件

      Usage: Promag 500, Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 21
    • Nr 21 Order code 71323022

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 HNBR.

    • Nr 21 Order code 71323023

      盖组件

      Usage: Promass/Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 70
    • Nr 70 Order code 71323026

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

    • Nr 70 Order code 71323027

      盖组件

      Usage: Promag 500, Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323028

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 HNBR.

    • Nr 22 Order code 71323029

      盖组件

      Usage: Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323030

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Consists of: 10x O-Ring 117,1x3,53 HNBR.

    • Nr 74 Order code 71323031

      盖组件

      Usage: Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Consists of: O-Ring 117,1x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323032

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323033

      盖组件

      Usage: Promag 500, Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323036

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      盖组件

      Usage: Promag 500, Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 28
  • 76
  • 71
    • Nr 71 Order code 71323071

      界面密封圈组件

      Usage: Promass 300/500, Prosonic Flow 300, transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface.

    • Nr 71 Order code 71323072

      界面密封圈组件

      Usage: Promass 300/500, Prosonic Flow 300, transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

    • Nr 71 Order code 71368491

      Kit interface gaskets, Promass 300, hyg.

      Usage: transmitter housing/sensor. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface, 5x gasket EPDM for interface.

  • 11
    • Nr 11 Order code 71368488

      保护壳

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71368489

      保护壳

      Usage: transmitter housing Alu/hygienic, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323081

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 87
    • Nr 87 Order code 71343505
