Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
防爆认证
Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
产品标题

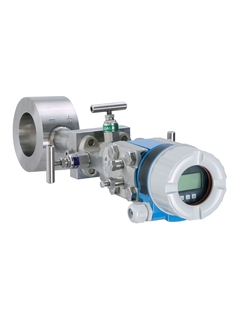

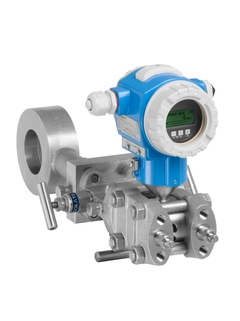

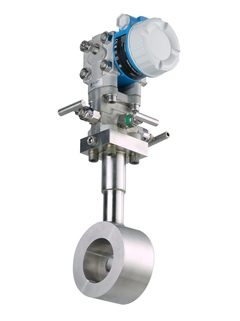

Calculated volume or mass flow measurement. dp primary element (orifice). Orifice plate with carrier ring and single bore corner taps.
传感器特点
Internationally standardized ISO5167-2. Undivided carrier ring. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
公称口径范围
DN 25...1000 1" ... 40"
最大测量误差
typically < 1% of calculated volume or mass acc. ISO5167 without calibration. Uncertainty of primary element excluding uncertainty of density or compensation.
Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
防爆认证
Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
产品标题
Calculated volume or mass flow measurement. dp primary element (orifice). Orifice plate with carrier ring and single bore corner taps.
传感器特点
Internationally standardized ISO5167-2. Undivided carrier ring. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
公称口径范围
DN 25...1000 1" ... 40"
最大测量误差
typically < 1% of calculated volume or mass acc. ISO5167 without calibration. Uncertainty of primary element excluding uncertainty of density or compensation.
测量范围
2.5 ... 150'000m3/h 12.5 ... 750'000 kg/h at 10bar/230°C

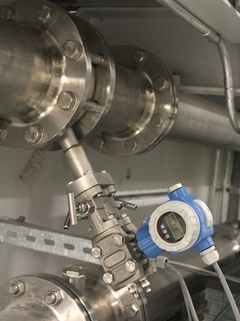

Differential pressure flow measurement with orifices and Deltabar
differential pressure transmitter
The universal measuring
system for steam, gases and liquids
Differential pressure flow measurement with orifices and Deltabar differential pressure transmitter The universal measuring system for steam, gases and liquids
