Why Raman spectroscopy matters for hydrogen liquefaction and quality assurance

As global demand increases, transporting hydrogen from production sites to end users becomes a central challenge. Hydrogen in its natural gaseous form has a low volumetric energy density, meaning it occupies a very large volume relative to the amount of energy it contains. This makes storage and transportation highly inefficient without further processing.

To overcome these limitations, hydrogen is increasingly expected to be liquefied, a practice long established in the natural gas industry (e.g., LNG). Liquefaction cools hydrogen to extremely low temperatures (20 K, or –253 °C), reducing its volume by a factor of nearly 800×. This dramatic reduction makes it far more practical to:

• Transport hydrogen over long distances by ship, truck, or rail

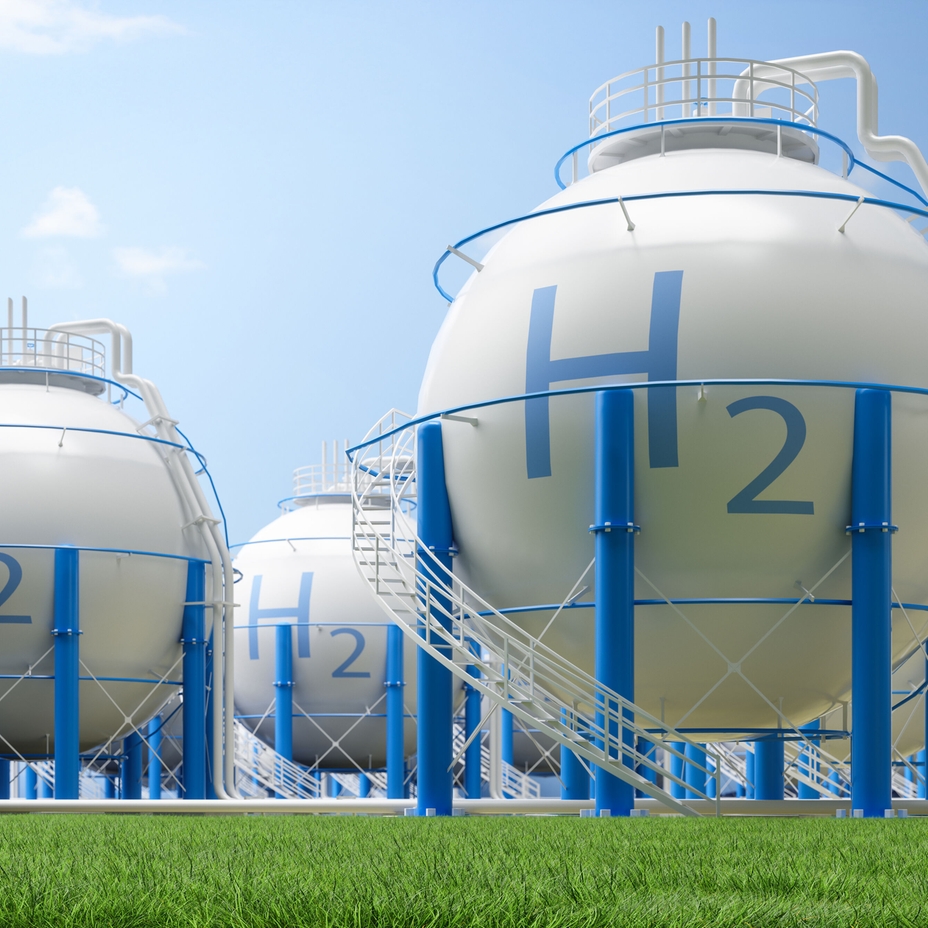

• Store large quantities at centralized hubs
• Distribute hydrogen to industries and fueling stations as part of a future global hydrogen economy

As such, hydrogen liquefaction opens pathways for global supply chains and large-scale adoption.

Hydrogen is rapidly becoming a key enabler of the global energy transition, particularly in sectors such as fertilizer production, refining, and chemical manufacturing.

However, hydrogen behaves uniquely at cryogenic temperatures. It exists in two spin isomers:

• Orthohydrogen (ortho-H₂) – dominant at ambient temperature (~75%)
• Parahydrogen (para-H₂) – dominant at cryogenic temperatures (>99% at 20 K)

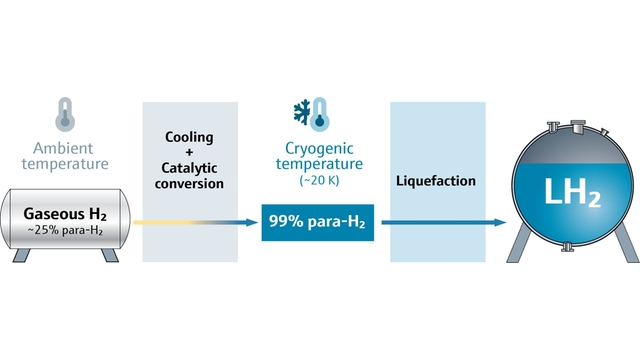

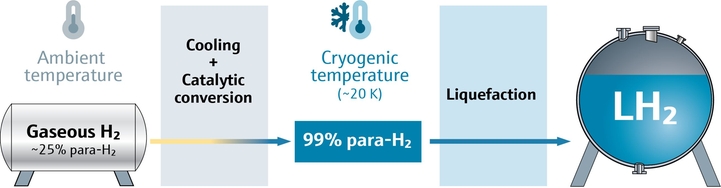

During liquefaction, ortho-to-para conversion releases heat, and if this conversion is incomplete when hydrogen is cooled, the residual reaction can cause boil-off gas (BOG) and product loss throughout the supply chain. For operators of liquefaction, storage, and transport systems, accurate, real-time quantification of hydrogen isomers becomes essential for process efficiency and safety.

Raman spectroscopy is uniquely suited for measuring hydrogen’s ortho/para ratio because it directly captures each isomer’s molecular fingerprint. As LH₂ production and handling scale, this capability — combined with a field-ready deployable system — becomes increasingly important for operators who need accurate, real-time insight into isomer composition.

Whereas other technologies only measure para-H₂, Raman spectroscopy is able to distinguish ortho-H₂ and para-H₂ by measuring both of their signatures within a single spectrum. This eliminates reliance on indirect inference methods that can introduce uncertainty or significant error.

Unlike laboratory-based or indirect analytical techniques, Raman spectroscopy systems enable:

• Continuous in-process monitoring
• Non-invasive measurement
• No sample conditioning
• No disruption to process conditions

This provides operators with immediate visibility into isomer ratios and supports proactive process control.

Raman spectroscopy allows parahydrogen quantification at ambient conditions while preserving the true ortho/para ratio achieved during liquefaction. In an actual hydrogen liquefaction facility, the gas is cooled through multiple stages with different catalysts driving the spin-isomer conversion. Raman spectroscopy can be applied at each stage to verify ortho-para conversion efficiency, and because reconversion (para → ortho) is extremely slow without a catalyst, warming the hydrogen sample does not affect the measurable composition. This behavior:

• Removes the need for cryogenic analytical setups
• Enhances safety and speed
• Reduces measurement complexity

Traditional approaches, which often rely on indirect physical‑property measurements, include:

• Calorimetry
• Thermal conductivity
• Speed-of-sound measurement

These methods face well‑known challenges, such as:

• High sensitivity to temperature and pressure fluctuations
• Inability to separate true parahydrogen from measurement errors
• Poor reliability when catalyst performance degrades

By contrast, Raman spectroscopy:

• Directly detects ortho- and para-H₂ simultaneously
• Provides immediate verification of incomplete liquefaction
• Helps distinguish process deviations from instrument or catalyst issues
• Captures all Raman-active species in one acquisition

• Proven accuracy and repeatability in ortho- and para-H₂ quantification to ensure tight control during hydrogen liquefaction and storage
• Reliable, real‑time insights for process optimization to reduce losses and safeguard product quality
• Minimal maintenance and operational simplicity with no cryogenic analytical equipment needed for faster and safer workflows

Hydrogen is increasingly emerging as a pivotal element in the global transition toward cleaner, more sustainable energy systems. As countries and industries intensify efforts to reduce carbon emissions and move away from fossil‑fuel dependence, hydrogen stands out as a versatile and powerful energy carrier capable of supporting this transformation.

As hydrogen transitions from limited industrial use to a globally scaled energy carrier, liquefaction will play an increasingly vital role in transportation and storage. That shift elevates the importance of accurately understanding and controlling the ortho to parahydrogen conversion yield — a parameter that directly affects efficiency, boil-off behavior, and safety across the LH₂ supply chain.

Raman spectroscopy offers a uniquely powerful, practical, and future ready solution for meeting this measurement need, enabling operators to monitor isomer composition in real time, without cryogenic handling, and with the clarity required for a rapidly expanding hydrogen economy.

1. "Hydrogen liquefaction: a review of the fundamental physics, engineering practice and future opportunities." Energy & Environmental Science, RSC Publishing, DOI:10.1039 /D2EE00099G.
2. “Hydrogen Liquefaction, Storage, Transport and Application of Liquid Hydrogen.” Wasserstoff‑Leitprojekte
3. "Liquid Hydrogen: A Review on Liquefaction, Storage, Transportation, and Safety."
4. "Liquid Hydrogen Delivery." U.S. Department of Energy.
5. "Liquefying Hydrogen for Storage & Transport." Linde.
6. National Aeronautics and Space Administration. Safety Standard for Hydrogen and Hydrogen Systems: Guidelines for Hydrogen System Design, Materials Selection, Operations, Storage and Transportation (NSS 1740.16). NASA Technical Reports Server.
7. “Ortho‑Para Hydrogen Conversion.” Sustainability Directory, ESG Directory.
8. "Quantitative In-situ Monitoring of Parahydrogen Fraction Using Raman Spectroscopy."
9. Weitzel, D.H., Loebenstein, W. V., Draper, J. W., & Park, O. E. “Ortho-Para Catalysis In Liquid-Hydrogen Production.” Journal of Research of the National Bureau of Standards, vol. 60, no, 3, 1958, pp. 221-226. NIST.
10. Wijnans, S. “Smart Management of Boil‑Off Gas Across the LH₂ Supply Chain.” Shell TechXplorer Digest, 2024.
