产品规格参数
-
Measured Variables
Concentration
Moisture Dew Point
Cell Pressure
Cell Temperature -
Hazardous area approvals
CSA Class I, Division 2
CSA Class I, Zone 2
应用领域

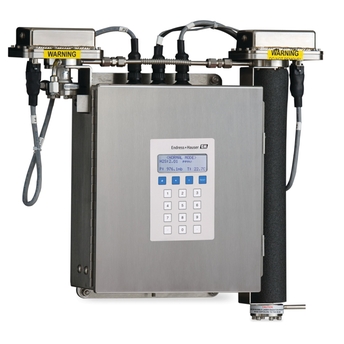

SS3000是双通道气体分析仪,高效经济地测量水气(H2O)和二氧化碳(CO2),单台分析仪连接两支传感器。传感器采用专利的TDLAS可调谐激光二极管吸收光谱技术进行气体测量,测定H2O和CO2浓度,无需直接接触气体。
天然气生产、储存、运输、分配过程中的气体质量测量
监测和控制天然气管路、加工厂、压缩空气站、采气平台和分配质量
计量交接测量的理想选择,保证质量
双通道型仪表的量程范围可达0...250 lb/mmscf (0...5275 ppm) H2O和0...20% CO2
优势
单台分析仪实时输出高精度H2O和CO2测量结果
在恶劣工况下几乎免维护,可靠工作
无湿润或干燥延迟,测量快速、精确
低使用成本,无需耗材
蒸汽中夹杂的杂质(比如乙二醇、甲醇、胺、硫化氢或硫醇)不会引起污染或漂移
通过模拟量输出和串行输出实现远程监测
通过CSA Cl. 1, Div. 2防爆认证

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
TDLAS
-
Product Headline
Dual channel gas analyzer for moisture (H2O) and carbon dioxide (CO2). The sensor measures gas using Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream.
-
Channels
2
-
Analyte and Measurement ranges
H2O (Moisture): 0-100 to 0-5000 ppmv
CO2 (Carbon Dioxide): 0-5% to 0-50% -
Measured Variables
Concentration
Moisture Dew Point
Cell Pressure
Cell Temperature -
Ambient Temperature range
-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F) -
Operating Pressure range
Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 700-1400 mbara -
Analyzer Wetted materials
316L Stainless Steel
FKM O-Rings
Glass -
Power supply
100-240 VAC, 50-60 Hz
OR
9-16 VDC or 18-32 VDC - optional
1 Amp maximum @ 120 VAC
1.6 Amps @ 24 VDC, 3.2 Amps @ 12 VDC -
Communication
Analog Output: 1 or 2 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Alarms: Four General Fault and Concentration Alarms via Modbus and Analog Output(s) -
Housing materials
Electronics: 304 Stainless Steel
Sample System Panel: Anodized aluminum -
Hazardous area approvals
CSA Class I, Division 2
CSA Class I, Zone 2 -
Degree of protection
Type 3R
-
测量原理
TDLAS
-
Product Headline
Dual channel gas analyzer for two moisture (H2O) channels. The sensor measures gas using Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream.
-
Channels
2
-
Analyte and Measurement ranges
H2O (Moisture): 0-100 to 0-5000 ppmv
-
Measured Variables
Concentration
Moisture Dew Point
Cell Pressure
Cell Temperature -
Ambient Temperature range
-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F) -
Operating Pressure range
Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 700-1400 mbara -
Analyzer Wetted materials
316L Stainless Steel
FKM O-Rings
Glass -
Power supply
100-240 VAC, 50-60 Hz
OR
9-16 VDC or 18-32 VDC - optional
1 Amp maximum @ 120 VAC
1.6 Amps @ 24 VDC, 3.2 Amps @ 12 VDC -
Communication
Analog Output: 1 or 2 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Alarms: Four General Fault and Concentration Alarms via Modbus and Analog Output(s) -
Housing materials
Electronics: 304 Stainless Steel
Sample System Panel: Anodized aluminum -
Hazardous area approvals
CSA Class I, Division 2
CSA Class I, Zone 2 -
Degree of protection
Type 3R
