©Endress+Hauser
产品规格参数
Measuring range
Visibility (K-value): 0 ... 150 km⁻¹ Temperature measurement (option): -30 ... +70 °C
Ambient temperature range
Conformities
ASTRA "Guideline - Fire Detection in Road Tunnels" (2007) RABT 2006
应用领域

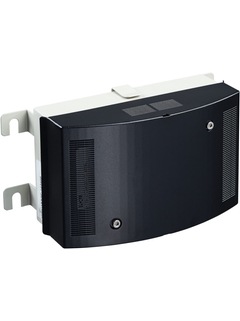

烟雾检测器 VISIC50SF 为快速可靠的检测隧道中的火灾提供了快读的测量方法。VISIC50SF 十分便于安装操作以及维护。无需校准和参数化 - 即时测量。通过 IP 6K9K 外壳防护等级,VISIC50SF 不仅能够在隧道环境条件十分恶劣的条件下使用,而且承受进行隧道清洁。由于特别注重维护周期长的可靠运行,因此该装置不含有任何移动部件。为抑制雾气影响可选加热型号。VISIC50SF 满足了预期的要求,是快速可靠探测火灾的理想解决方案。
隧道内用于火灾早期探测的冷烟雾检测器
腐蚀性气氛中的烟雾检测
概览:
根据光散射原理测量能见度 (K值)
高可用性,无移动部件
快速可靠的烟雾检测
软件根据 EN 61508 (SIL1) 开发
报警系统失灵率低
集成的加热器抑制雾气的影响 (可选)
优势
由于可及早快速检测,是感温电缆的理想补充装置
高可用性和运行安全性
清洁隧道时无需采取保护措施
通道处抗雾气能力强
灵活的连接性和扩展性,可简单地集成到现有网络
安装简便,调试快捷,较大的降低了成本
©Endress+Hauser
FLEX产品选型
仪表技术性能
选型便捷程度
仪表技术性能
选型便捷程度
仪表技术性能
选型便捷程度
仪表技术性能
选型便捷程度
仪表技术性能
选型便捷程度
Loading alternative products
您可能感兴趣的还有
相关主题
SOPAS ET
Engineering tool for seamless sensor integration and configuration
更多信息
Measuring range
Visibility (K-value): 0 ... 150 km⁻¹ Temperature measurement (option): -30 ... +70 °C
Ambient temperature range
Ambient humidity
10 % ... 100 % Relative humidity; non-condensing
Degree of protection
Sensor unit:IP66 IP6K9K Control unit: IP66
Conformities
ASTRA "Guideline - Fire Detection in Road Tunnels" (2007) RABT 2006
下载排行榜
General Station Description (GSD) - Visic50SF - PROFIBUS DP
Language neutral - 12/2024
Any, PROFIBUS System, Any
语言:
Language neutral
版本:
11/12/2024
文件大小:
1.6 KB
文件名:
EHS_DP_AN_Visic50SF_DC0004712_0x0EE8_GSD.zip
VISIC50SF – smoke detector for early and reliable fire protection in a tunnel
The VISIC50SF smoke detector offers high-speed measurement
to ensure fast and reliable smoke detection when tunnel fires occur.
语言:
英语
版本:
01/01/2025
文件大小:
2.9 MB
文件名:
8030076_IN_VISIC50SF_en_V2-1_2025.01_EHS.pdf
6文档
Smoke Detector in Tunnels
语言:
英语
版本:
01/01/2025
文件大小:
5.4 MB
文件名:
8029837_1DPO_OI_VISIC50SF_en_V2-0_2023-07_EHS.pdf
for non-Ex analyzer devices
语言:
英语
版本:
01/01/2025
文件大小:
2.4 MB
文件名:
8030257_XA_Safety_Information_non-Ex_ml_V1-0_2016-06_WEB.pdf
Solutions for traffic and tunnel safety
An overview brochure about traffic and tunnel sensor, their development during the last 60 years, the main applications in front and within a tunnel as well as the measuring devices at a glance
语言:
英语
版本:
01/01/2025
文件大小:
4.3 MB
文件名:
8029977_CP_Traffic_Sensors_en_V2-0_2025.01_EHS.pdf
Emission Monitoring Solutions – broad instrument portfolio and
longstanding experience
An overview brochure about emission monitoring, their measuring principles and technologies, global requirements and services, a selection guide and the measuring devices at a glance
语言:
英语
版本:
01/01/2025
文件大小:
4.9 MB
文件名:
8029975_CP_Emission_Monitoring_Solutions_en_V3-0_2025.01_EHS.pdf
VISIC50SF – smoke detector for early and reliable fire protection in a tunnel
The VISIC50SF smoke detector offers high-speed measurement to ensure fast and reliable smoke detection when tunnel fires occur.
语言:
英语
版本:
01/01/2025
文件大小:
2.9 MB
文件名:
8030076_IN_VISIC50SF_en_V2-1_2025.01_EHS.pdf
General Station Description (GSD) - Visic50SF - PROFIBUS DP
Any, PROFIBUS System, Any
文件大小:
1.6 KB
文件名:
EHS_DP_AN_Visic50SF_DC0004712_0x0EE8_GSD.zip
Device Type:
0x0EE8
Device Revision:
5
DD Revision:
5
Firmware:
1.2
Version:
1.00.00
Date:
16/03/2015
