产品规格参数
Measured variables
CH4, CO, CO2, Corg, HCl, H2O, NH3, NO, NO2, N2O, O2, SO2
Ambient temperature range
应用领域

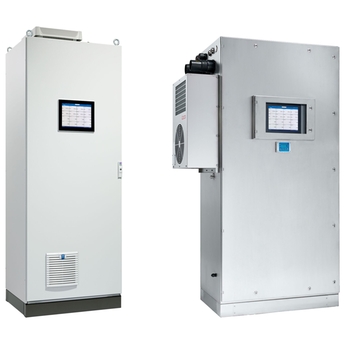

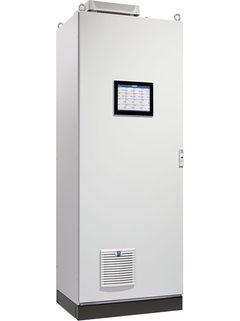

MCS200HW 多组分分析仪系统可用于连续监控工业焚烧设备烟气中的多达 10 种红外测量组分。MCS200HW 采用热提取方式:从气体采样探头到样品池的所有介质接触部件都被加热到高于露点温度,由此可防腐蚀。 内置的氧传感器还可测量氧气。通过选配一体式 GMS811 FIDORi 可以增设 TOC 测量(仅非防爆类型)。内部量程点检查实现快速测量值检查而无需测试气体。网络显示屏和软件中预定义的任务助手令操作非常简单。MCS200HW Ex 在爆炸性环境下还提供了可靠的排放测试。
©Endress+Hauser
FLEX产品选型
仪表技术性能
选型便捷程度
仪表技术性能
选型便捷程度
仪表技术性能
选型便捷程度
仪表技术性能
选型便捷程度
仪表技术性能
选型便捷程度
Loading alternative products
成功案例
实时测量氢气质量
Enapter公司选用Endress+Hauser的光学分析测量技术测定产出氢气的纯度
阅读完整案例
天然气涡轮机用混合氢能
Long Ridge Energy发电站是清洁氢能在全球电力与能源行业的成功应用典范。
阅读完整案例
测量原理
Interference filter correlation, Gas filter correlation
Measured variables
CH4, CO, CO2, Corg, HCl, H2O, NH3, NO, NO2, N2O, O2, SO2
Performance-tested measurands
CH4, CO, CO2, Corg, HCl, H2O, NH3, NO, NO2, N2O, O2, SO2
Certified measuring ranges
CH4: 0 ... 50 mg/m³ / 0 ... 500 mg/m³ CO: 0 ... 30 mg/m³ / 0 ... 10,000 mg/m³ CO2: 0 ... 25% by vol. Corg: 0 ... 15 mg/m³ / 0 ... 50 mg/m³ / 0 ... 150 mg/m³ / 0 ... 500 mg/m³ HCl: 0 ... 15 mg/m³ / 0 ... 3,000 mg/m³ H2O: 0 ... 40% by vol. NH3: 0 ... 7 mg/m³ / 0 ... 500 mg/m³ NO: 0 ... 50 mg/m³ / 0 ... 2,500 mg/m³ NO2: 0 ... 50 mg/m³ / 0 ... 500 mg/m³ N2O: 0 ... 45 mg/m³ / 0 ... 2,000 mg/m³ O2: 0 ... 25% by vol. SO2: 0 ... 75 mg/m³ / 0 ... 2,500 mg/m³
Ambient temperature range
Ambient humidity
≤ 90 % Relative humidity; non-condensing
Conformities
Approved for plants requiring approval 2000/76/EC (17. BImSchV) 2001/80/EC (13. BImSchV) 27. BImSchV EN 15267 EN 14181
Hazardous area approvals
MCS200HW Ex: ATEX: II 3G Ex dc ec ic [ic] mc nC pzc IIC T3 Gc Analyzer cabinet II 3G Ex ec IIC T3 Gc Gas sampling unit I 2G Ex eb IIC T Gb Sample gas line IECEx: on request.
Degree of protection
MCS200HW: IP54 MCS200HW Ex: IP65
