产品规格参数
-
测量范围
0 to 500 µg/l (ppb)
50 to 5000 µg/l (ppb) -
过程温度
5 to 45 °C (41 to 113 °F)
-
过程压力
1 to 5 bar (14.5 to 72.5 psi)
-
Measuring method
Comply with standard colorimetric measuring principle - heteropoly blue method
应用领域
Liquiline System CA80SI高精度在线分析硅酸盐,有助于保护工厂设备,以防出现沉积,从而确保汽轮机和离子交换器具有最优性能。它采用独特的蠕动泵和高精度柱塞泵组合工作方式,测量可靠,维护量低。硅酸盐分析仪具有高级诊断功能,最多可以升级为6个测量通道,最多连接4路Memosens数字式传感器,轻松满足过程要求。
CA80SI硅酸盐分析仪在电力行业和公用工程中监测硅酸盐浓度。
锅炉给水和蒸汽的纯度指标
冷凝罐早期泄露预警
离子交换器损耗警告
优势
保护电厂中的昂贵装置设备:硅酸盐分析仪监测汽水循环中的硅酸盐浓度,有效避免设备表面出现沉积。
早期在线检测硅酸盐临界浓度,确保电厂高效运行,优化维护和停车时间。
基于标准杂多蓝法测量,可以与实验室结果直接媲美。
最高可靠性:独特的蠕动泵和高精度柱塞泵组合方式,测量稳定,维护量低。
优化投资:最多可选6个取样通道,随时满足变化过程需求,连接Memosens数字式传感器,能够轻松升级至完整的测量站。
支持数字现场总线,能够无缝集成至过程控制系统中,例如Modbus、EtherNet/IP或PROFIBUS。
如果发生错误,高级诊断功能和网页服务器远程访问功能能够快速进行补救。
演示视频
-
基于比色法测量原理测定液体中的硅酸盐浓度。视频介绍了分析仪的测量原理和工作原理。

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
老产品
-
测量原理
比色
-
特点
Analyzer for silica in aqueous solutions
-
Measuring method
Comply with standard colorimetric measuring principle - heteropoly blue method
-
尺寸
Housing (open version):
793 x 530 x 417 mm
31.22 x 20.87 x 16.42 in

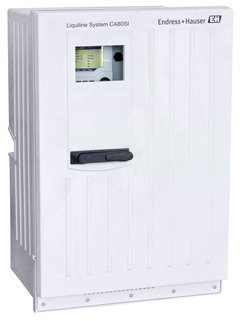

Housing (closed version):
793 x 530 x 463 mm
31.22 x 20.87 x 18.23 in
Housing with base:
1723 x 530 x 463 mm
67.83 x 20.87 x 18.23 in -
设计
Open design / cabinet
Plastic ASA-PC -
过程温度
5 to 45 °C (41 to 113 °F)
-
环境温度
5 to 40 °C (41 to 104 °F)
-
过程压力
1 to 5 bar (14.5 to 72.5 psi)
-
探头处的流速
60 to 250 ml/min (2.03 to 8.45 fl.oz/min)
-
探头的一致性
Particle free
-
特殊要求
Easy upgrade to measuring station with up to four digital Memosens sensors
Automatic calibration and cleaning
User-configurable measuring, cleaning and calibration intervals

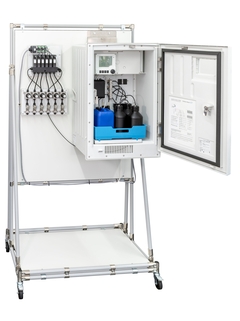

optional up to 6 sample channels
Flexible functionality and modular expandable
Digital communication for remote access -
应用
Determination of silica concentration in boiler feed water
Monitoring of water-steam-circuit and condensate
Monitoring and optimization of reverse osmosis and desalination -
电源
100 to 120 VAC / 200 to 240 VAC ± 10%
50 ± 1 or 60 ± 1.2 Hz -
输出
2x 0/4 to 20 mA
Optional: Webserver, Modbus, Ethernet/IP, Profibus DP -
输入
1, 2, 4 or 6 measuring channels
Optional 1 to 4 digital inputs for sensors with Memosens protocol -
测量范围
0 to 500 µg/l (ppb)
50 to 5000 µg/l (ppb) -
耗材
Reagents and standard solutions CY80SI
Maintenance kit CAV800
