产品规格参数
-
测量精度
class 1 acc. to IEC 60584
class 2 acc. to IEC 60584
class Special ASTM E230 and ANSI MC 96.1
IEC60751 Class A
IEC60751 Class AA -
响应时间
TC
t50 = 1 s
t90 = 2 s
RTD
t50 = 3 s
t90 = 6 s -
最大过程压力(静压)
at 20 °C: 40 bar (580 psi)
-
工作温度范围
Type K:
-270 °C …800 °C
(-454 °F …1.472 °F)
Type J:
-210 °C …520 °C
(-346 °F …968 °F)
Pt100 WW; 3mm; 316L; -200...600oC
Pt100 StrongSens; 6mm; 316L; -50…500oC
Pt100 TF; 3mm; 316L; -50…400oC -
所需最大插入深度
up to 60.000,00 mm (2.360'')
应用领域

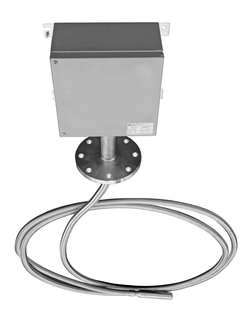

iTHERM MultiSens TMS31多功能多点温度计采用模块化结构设计,在盛放谷物、有机散料的储罐、油罐或燃料罐中进行平均温度检测和密度梯度测量。
设备坚固耐用,内置高精度温度传感器,保证产品存储安全、可靠且经济。标准配置的柔性铠装多点温度计最多可以固定安装20支热电偶(TC)或热电阻(RTD)传感器。
油罐
散料料仓
优势
灵活定制,安装简单,轻松实现过程集成
柔性铠装温度计满足各类料仓或罐体安装条件(进料、排料、存储等)
本安型设备,可以在防爆区中使用
坚固耐用,长使用寿命,可以在所有工况下连续监控
