TC66
防爆热电偶温度计

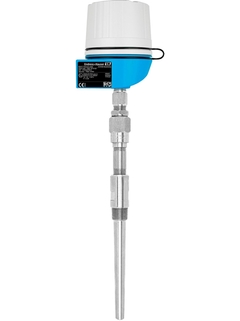

产品图片:TC66 热电偶温度计(螺纹连接) ©Endress+Hauser

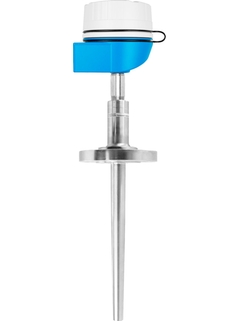

产品图片:TC66 热电偶温度计(法兰连接) ©Endress+Hauser

过程温度的安全测量,适用于石油、天然气等行业中恶劣工况的测量场合

此款热电偶温度计坚固耐用,适用于化工、石油、天然气、能源等行业的恶劣工况和安全要求高的测量场合。牢固的保护管和特殊材质足于应对恶劣的工作环境、腐蚀性物质和高压。可选变送器兼容各种通用通信协议,可即装即用,与直接连线的传感器相比,提高了测量精度和可靠性。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 防爆类型:本质安全型(Ex ia),隔爆型(Ex d),无火花型(Ex nA)

    • 测量芯子兼容性高,设计符合DIN 43772标准

    • 延伸颈防止变送器过热

    • 模块化设计,采用符合DIN EN 50446的标准接线盒和客户指定的插入深度,灵活性高

  • 应用领域

    • 重型机械应用领域

    • 油气行业

    • 测量范围:–40... 1 100 °C (–40 ... 2 012 °F)

    • 静压范围可达 100 bar (1450 psi)

    • 保护等级: IP68

特征和规格

返回

Details

  • 测量原理

    热电偶

  • 特点/应用

    美标
    模块化温度计
    满足重尘应用要求
    可以在危险区中使用
    带延长颈
    带热保护套管(金属)

  • 热保护套管

    棒材(钻孔)

  • 铠装芯子/探头

    矿物绝缘材料(MI),可弯曲

  • 热保护套管外径

    20 mm (0.79")
    24 mm (0.94")
    25 m (0.98")

  • 所需最大插入深度

    最大5,000.00 mm (196.85'')

  • 热保护套管材质

    1.4401 (316)
    1.4404 (316L)
    1.4571 (316Ti)
    Alloy C276合金
    Alloy 400合金

  • 可选带涂层

    未设置

  • 过程连接

    公螺纹:
    NPT3/4"
    NPT1"
    法兰:
    ASME 1" 150 RF (B16.5)
    ASME 1" 300 RF (B16.5)
    ASME 1" 600 RF (B16.5)
    ASME 1,5" 150 RF (B16.5)
    ASME 1,5" 300 RF (B16.5)
    ASME 1,5" 600 RF (B16.5)
    ASME 2" 300 RF (B16.5)
    ASME 2" 600 RF (B16.5)

  • 热保护套管末端类型

    直管型
    锥管型

  • 表面光洁度Ra

    1.6 μm (63.0 μin.)

  • 工作温度范围

    K型:
    -40...1.100 °C
    (-40...2.012 °F)
    J型:
    -200...750 °C
    (-328...1.382 °F)

  • 最大过程压力(静压)

    20 °C时:500 bar (7.252 psi)

  • 测量精度

    Cl. 1,符合IEC 60584标准

  • 响应时间

    取决于设置
    t50 = 3 s
    t90 = 7 s

  • 模块化温度变送器

    是(4…20 mA;HART;PROFIBUS PA;FOUNDATION FIELDBUS)

  • 防爆认证

    ATEX II
    IECEx
    NEPSI
    防爆

  • 证书

    Gost认证
    SIL(仅针对变送器)

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • C
  • A
    • Order code TMT71-

      iTEMP TMT71, Transmitter 4-20mA

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

    • Order code TMT72-

      iTEMP TMT72, Transmitter HART

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

  • B
    • Nr B Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

  • D
    • Nr D Order code TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr D Order code TA30H-

      Terminal Head TA30H

      Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).

  • B
    • Nr B Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
