T14

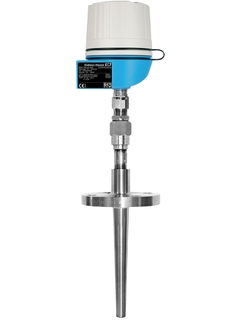

防爆型Pt100温度计(US型)
在挑战性应用中安全监测过程温度，例如：油气行业
坚固耐用的温度计可以在苛刻工况条件下和安全应用中使用，例如：化工、油气和能源行业。采用坚固耐用的热保护套管和特殊材料，可以满足恶劣工况、腐蚀性介质和最高压力的测量要求。与具有所有通用通信方式的模块化变送器配套使用，可以直接测量；相比于直接接线的传感器，具有更高的测量精度和可靠性。可以灵活设置。
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
此产品暂未在中国市场销售
-
产品规格参数
-
测量精度
Cl. A ，遵循IEC 60751标准
Cl. B，遵循IEC 60751标准 -
响应时间
取决于设置
63% rt = 20 s -
最大过程压力（静压）
20 °C时：500 bar (7.252 psi)
-
工作温度范围
PT 100：
-200...600 °C
(-328...1.112 °F) -
所需最大插入深度
最大2,743 mm (108,00'')
-
-
优势
FM/CSA XP Cl. I, Div. 1认证型温度计，具有最高安全性
一站式温度测量解决方案。 内置传感器的一流变送器，适用于苛刻工业过程应用。
拆箱后直接安装使用
安装在大多数设备上均能提升电气隔离性能(2 kV)
简单的模块化结构：性价比高。订购和重新订购简单。含传感器、热保护套管和变送器的整体单元提供完整测量点解决方案
所有iTEMP®变送器的长期稳定性均≤ 0.05 % /年
-
应用领域
T14是热电阻(RTD)温度计，安装在热保护套管中，通过FM和CSA认证，可以在恶劣工况条件下和防爆区中使用。传感器由带绝缘热电阻(RTD)测量部件的测量探头、铠装芯子和棒材热保护套管组成。
传感器可以在以下过程行业中使用，例如：化工行业
石化行业
炼油厂
海上平台
文档/手册/软件
-
T13, T14 and T15
RTD assemblies T13, T14 and T15 for heavy duty applications
技术信息(TI) -
KA237Rae T14 Explosion proof RTD assembly in flanged thermowell
T14 Explosion proof RTD assembly in flanged thermowell
Short Instruction (KA)07/07英语 -
Temperature assemblies T13, T14, T15, T53, T54, T55
Control drawing CSA (XP, DIP)
Installation notes for CSA approved apparatus
Ex 防爆说明(XA) -
Control Drawing FM XP, NI, DIP T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous Locations证书FM/CSA (ZD) -
T13, T14, T53, T54
CSA installation notes: explosion proof, dust ignition proof, non
incendive
CSA approved temperature assemblies
证书FM/CSA (ZD) -
Control Drawing FM XP, NI, DIP T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous Locations证书FM/CSA (ZD) -
Control Drawing FM Explosionproof T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous Locations证书FM/CSA (ZD) -
T13, T14, T53, T54
CSA Installation notes, explosion proof, dust ignition proof
CSA approved temperature assemblies
证书FM/CSA (ZD) -
Control Drawing CSA Intrinsically Safety, Nonincendive THxx, Txx Series,
TU111, TU121, TU211, TU221
Installation Notes for Hazardous Locations
证书FM/CSA (ZD) -
Control Drawing FM Explosionproof T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous Locations证书FM/CSA (ZD) -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
竞争力手册(CP)08/11俄语 -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности竞争力手册(CP)04/10俄语 -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
产品型号: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
一致性声明编号: EC_00568_01.17EU Declaration德语 , 英语 , French -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Explosion proof, Process TC Explosion proof
产品型号: T13-, T14-, T15-, T53-, T54-, T55-, TU211-, TU221-
地区/国家: USA
认证机构: FM
类别: I,II,III/1,2/A,B,C,D,E,F,G/
保护: DIP, XPExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Explosion proof, Process RTD General purpose, Process TC Explosion proof
产品型号: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TU211-, TU221-
地区/国家: USA, Canada
认证机构: CSA
类别: II,III/1/E,F,G/TXXX°C, I/1/1/T6...T1, I/1/A,B,C,D/T6...T1, I/2/A,B,C,D/T6...T1
保护: XP, NI, DIPExplosion Protection英语 -
ACCESSORIES: PIPE THERMOWELL, Process RTD Explosion proof
产品型号: T14-, TU54-
地区/国家: Canada (CRN)
认证机构: CRNPressure Equipment英语 -
ACCESSORIES: PIPE THERMOWELL, Process RTD Explosion proof, Process RTD Hygienic, Process TC Explosion proof, Process TC Heavy duty, TC Heavy duty
产品型号: TU67-, TU55-, TU54-, TU53-, TU52-, TU51-, TH54-, TH53-, TH27-, TH14-, TH13-, T54-, T53-, T14-, T13-
地区/国家: Canada, Canada (CRN)
认证机构: CRNPressure Equipment英语 -
Process RTD Explosion proof, Process RTD General purpose, Process RTD Hygienic, Process TC Explosion proof
产品型号: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TM411-, TM412-
地区/国家: USA, Canada
认证机构: CSAOrdinary Location Product Safety英语
附件/备件
-
-
-
-
-
-
Nr F Order code TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
-
-
Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
